Spirax Sarco 61705, T250 Balanced Pressure Straight Pattern Thermostatic Steam Trap, 1/2 in, FNPT, 450 deg F, 250 psi, Cast Iron
CBPN: 7487
MPN:61705
Price:
$536.90 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure Straight Pattern, 1/2 in Nominal, NPT, 5.37 in Length, 250 psi, Cast Iron, 450 deg F, 3.12 in W
The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 deg F (11 deg C) below saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 4.2 lbs
Nominal Size: 1/2 in
End Style: FNPT
Max Operating Pressure: 250 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 250 psig
Material: Cast Iron
Dimensions: 3.12 in W
Length: 5.37 in
Manufacturer Name: Spirax-Sarco Inc
Series: T-250
Type: Balanced Pressure Straight Pattern
Application: Hospital, Laundry and kitchen equipment, High capacity process equipment, Outdoor applications subject to freezing and applications requiring high air venting capacity on initial start up
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Steam traps shall be balanced pressure thermostatic types, self adjusting to all pressures within their operating range
- All internals to be stainless steel and shall be replaceable without disturbing the piping connections
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
- 450 deg F Maximum allowable temperature
- Saturated steam temperature
- 250 psig at 450 deg F
- 450 deg F at 0 to 250 psig
- Inline horizontal piping configuration
- 6000 lb/h hot condensate capacity
- 3/8 in orifice size
Resources

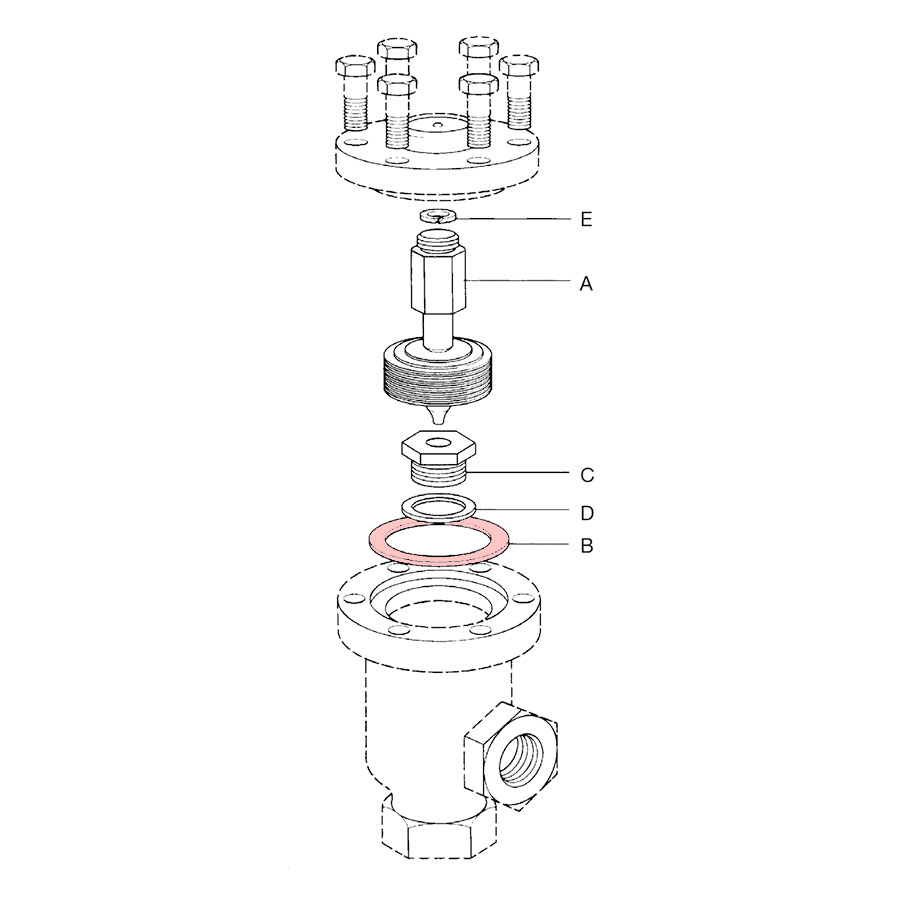

Spirax Sarco 61705 Spare Parts
