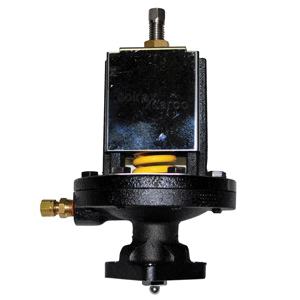

Spirax Sarco 61540, 25BP Back Pressure Pilot, Cast Steel, Yellow Spring, 3 to 30 psi
CBPN: 165969
MPN:61540
Price:
$2942.03 / EA
DESCRIPTION
Spirax Sarco 25BP Back Pressure Pilot, Cast Steel, Yellow Spring, 3 to 30 psi Pressure
The 25BP Back Pressure Regulator maintains a constant upstream pressure in a piping system. The reverse-acting pressure pilot opens the main valve when the sensed upstream pressure increases. The 25BP is NOT a safety valve, and should NEVER be used as such.
Spirax Sarco 61540, 25BP Back Pressure Pilot, Cast Steel, Yellow Spring, 3 to 30 psi
CBPN: 165969
MPN:61540
Price:
$2942.03 / EA
DESCRIPTION
Spirax Sarco 25BP Back Pressure Pilot, Cast Steel, Yellow Spring, 3 to 30 psi Pressure
The 25BP Back Pressure Regulator maintains a constant upstream pressure in a piping system. The reverse-acting pressure pilot opens the main valve when the sensed upstream pressure increases. The 25BP is NOT a safety valve, and should NEVER be used as such.
Specifications
Brand: Spirax Sarco
Weight: 9 lbs
Type: Pressure Pilot
Pressure Range: 3 to 30 psi
Material: Cast Steel
Series: 25BP
Manufacturer Name: Spirax-Sarco Inc
Warranty: 2 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 Gr WCB Body
Item Features
- Maximum allowable pressure: 300 psig at 0 to 600 deg F
- Maximum allowable temperature: 600 deg F at 0 to 300 psig
- 20 Cv
- 3 to 30 psi upstream pressure for yellow spring valve
