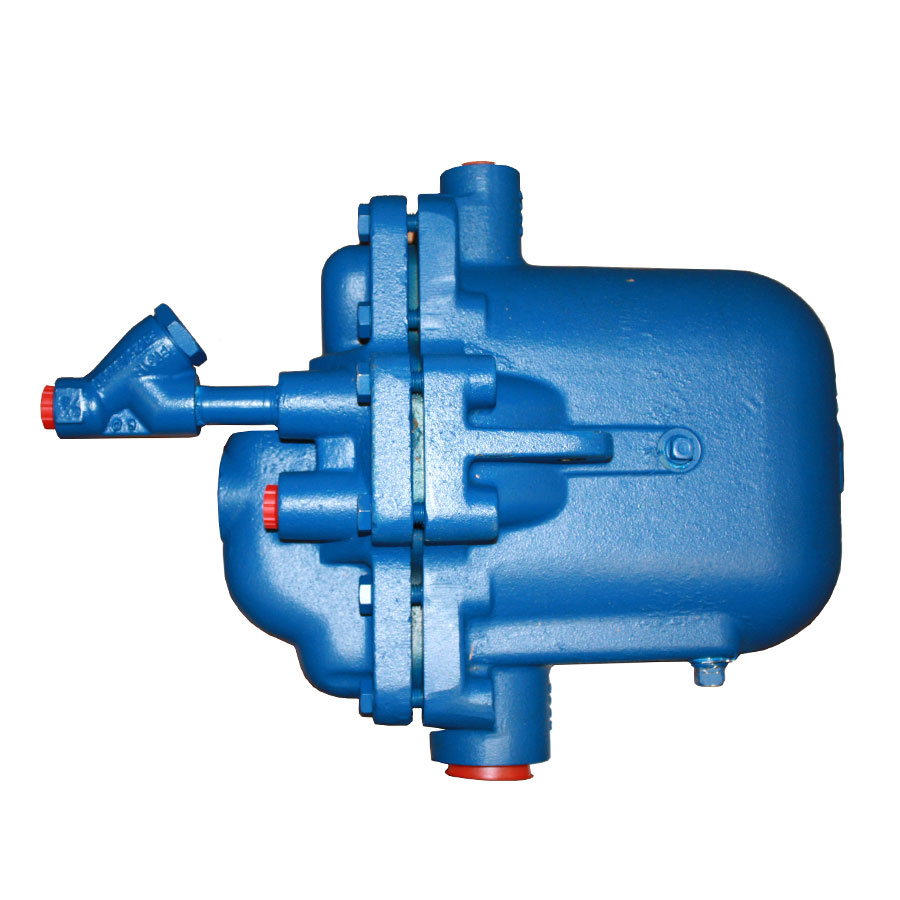

Spirax Sarco 6120390, APT14 Automatic Pump Trap, 1-1/2 in, NPT, 350 mm L, 13.8 bar, SG Iron
CBPN:27921
MPN:6120390
Price:
$8760.57 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 1-1/2 in Nominal, NPT, 350 mm Length, 13.8 bar, SG Iron, 198 deg C, 304 mm H
The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure rated to PN16. The units are capable of automatically trapping or pumping, depending on pipeline conditions. The unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum.
Spirax Sarco 6120390, APT14 Automatic Pump Trap, 1-1/2 in, NPT, 350 mm L, 13.8 bar, SG Iron
CBPN:27921
MPN:6120390
Price:
$8760.57 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 1-1/2 in Nominal, NPT, 350 mm Length, 13.8 bar, SG Iron, 198 deg C, 304 mm H
The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure rated to PN16. The units are capable of automatically trapping or pumping, depending on pipeline conditions. The unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum.
Specifications
Brand: Spirax Sarco
Weight: 100lbs
End Style: NPT
Length: 350 mm
Material: SG Iron
Nominal Size: 1-1/2 in
Series: APT14
Temperature Rating: 198 deg C
Type: Automatic
Pressure Rating: 13.8 bar
Dimensions: 304 mm H
Manufacturer Name: Spirax-Sarco Inc
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ATEX Directive 94/9/EC | EN JS 1025 or ASTM A395 Body | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC | ISO 9001
Item Features
- Automatic pumps specifically designed to remove and recover condensate
- No electric motors or level switches, simplifying installation and making ideal for hazardous areas
- Pumps high temperature fluids without cavitation, reducing plant maintenance problems
- Self-contained units using steam or with regard to the MFP range, other pressurized gas as their motive power
- The shell of the product has been designed in accordance with AD Merkblatter/ASME VIII
- Maximum allowable temperature: 300 deg C at 12.8 barg
- Maximum motive inlet pressure: 13.8 barg
- PN16 body design conditions
- 13.8 barg at 198 deg C maximum operating pressure for saturated steam service
- 5 barg maximum backpressure for standard pump
- 198 deg C at 13.8 barg Maximum operating temperature for saturated steam service
- Maximum cold hydraulic test pressure: 24 barg
- Stainless steel internal
