Spirax Sarco 6120190, APT10-4.5 Automatic Pump Trap, 3/4 in, NPT, 10-1/2 in L, 65 psig, SG Iron
CBPN:68603
MPN:6120190
Price:
$5071.43 / EA
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 3/4 in Nominal, NPT, 10-1/2 in Length, 65 psig, SG Iron, 311 deg F, 10.7 in H

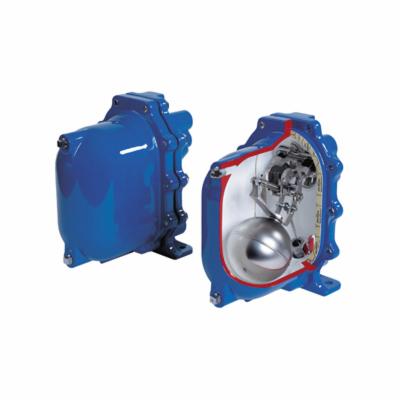

The Spirax Sarco automatic pump trap is a screwed displacement receiver pressure rated to PN10. The unit is capable of automatically trapping or pumping, depending on line conditions. The unit is operated by steam and is used to remove condensate from process and heating plant under all operating conditions including vacuum. The APT10-4.5 is available with standard blue paint finish or coated in ENP (Electroless Nickel plate).
Spirax Sarco 6120190, APT10-4.5 Automatic Pump Trap, 3/4 in, NPT, 10-1/2 in L, 65 psig, SG Iron
CBPN:68603
MPN:6120190
Price:
$5071.43 / EA
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 3/4 in Nominal, NPT, 10-1/2 in Length, 65 psig, SG Iron, 311 deg F, 10.7 in H
The Spirax Sarco automatic pump trap is a screwed displacement receiver pressure rated to PN10. The unit is capable of automatically trapping or pumping, depending on line conditions. The unit is operated by steam and is used to remove condensate from process and heating plant under all operating conditions including vacuum. The APT10-4.5 is available with standard blue paint finish or coated in ENP (Electroless Nickel plate).
Specifications
Brand: Spirax Sarco
Weight: 38.48lbs
End Style: NPT
Length: 10-1/2 in
Material: SG Iron
Nominal Size: 3/4 in
Series: APT10-4.5
Temperature Rating: 311 deg F
Type: Automatic
Pressure Rating: 65 psig
Dimensions: 10.7 in H
Manufacturer Name: Spirax-Sarco Inc
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ATEX Directive 94/9/EC | EN 10204 3.1 | EN JS 1025/ASTM A395 Body | European Pressure Equipment Directive 97/23/EC | ISO 9001
Item Features
- Automatic pumps specifically designed to remove and recover condensate
- No electric motors or level switches, simplifying installation and making ideal for hazardous areas
- Pumps high temperature fluids without cavitation, reducing plant maintenance problems
- Self-contained units using steam or with regard to the MFP range, other pressurized gas as their motive power
- Shell designed in accordance with AD Merkblatter/ASME VIII
- 1/2 in motive/exhaust
- PN10 Body design condition
- Stainless steel internal
- Maximum back pressure: 58 psig
- Maximum allowable pressure: 145 psig
- Maximum allowable temperature: 392 deg F
