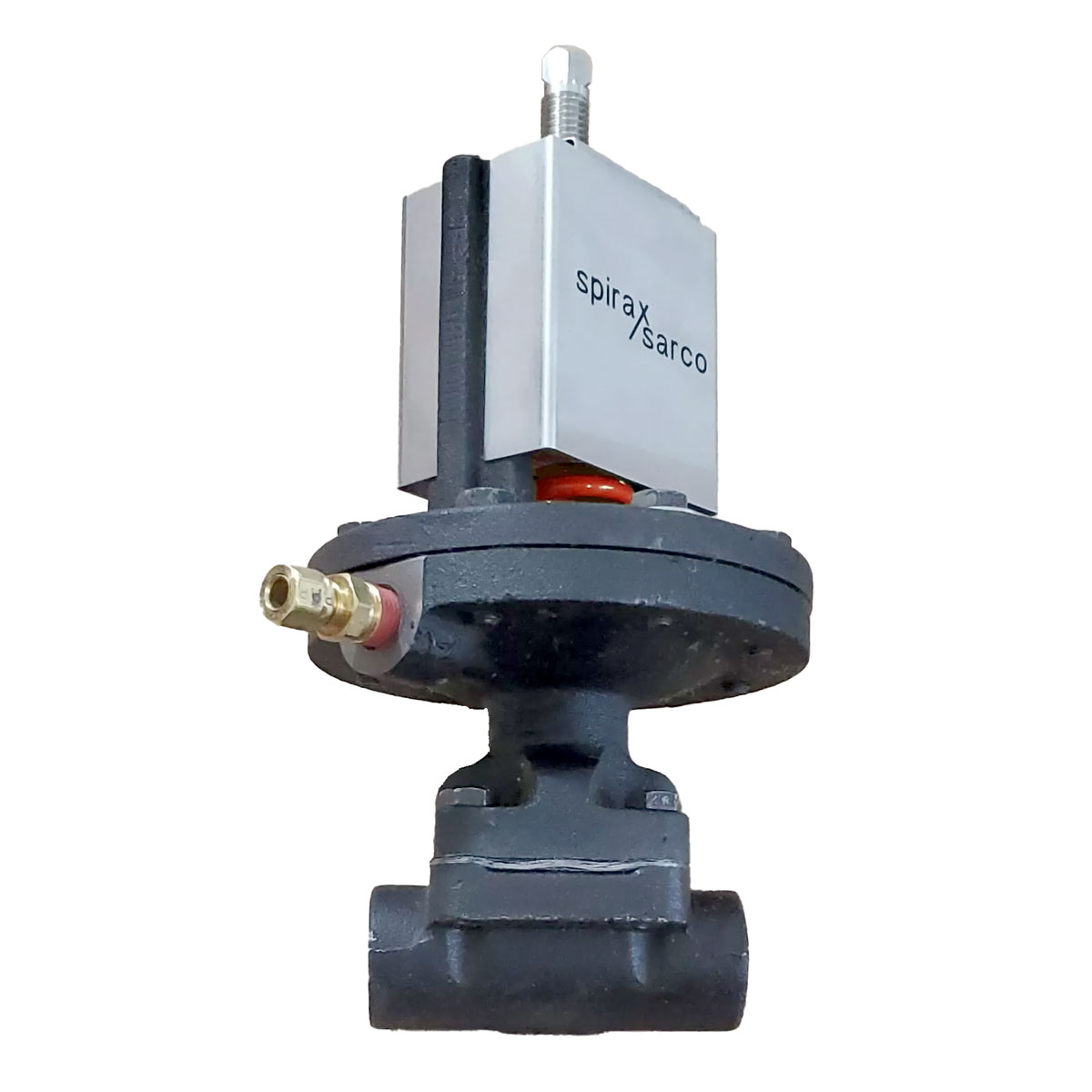

Spirax Sarco 61043, 25MP Direct Operated Pressure Regulator, 1/2 in, FNPT End Style, 250 psi, 450 deg F, Red Spring (80 to 250 psi)
CBPN: 170784
MPN:61043
Price:
$979.16 / EA
DESCRIPTION
Spirax Sarco 25MP Pressure Regulator, Direct Operated, 1/2 in Nominal, NPT, 250 psi, 450 deg F, Cast Iron Body, Red Spring (80 to 250 psi), Media: Steam, Stainless Steel Trim, Graphite Gasket, 9-3/4 in H
The Spirax Sarco® 25MP direct-operated pressure regulator is designed for accurate control of very light loads. Color coded interchangeable springs allow quick and easy changes of downstream pressure ranges. This durable, compact regulator offers a competitive solution to uncomplicated steam applications.
Spirax Sarco 61043, 25MP Direct Operated Pressure Regulator, 1/2 in, FNPT End Style, 250 psi, 450 deg F, Red Spring (80 to 250 psi)
CBPN: 170784
MPN:61043
Price:
$979.16 / EA
DESCRIPTION
Spirax Sarco 25MP Pressure Regulator, Direct Operated, 1/2 in Nominal, NPT, 250 psi, 450 deg F, Cast Iron Body, Red Spring (80 to 250 psi), Media: Steam, Stainless Steel Trim, Graphite Gasket, 9-3/4 in H
The Spirax Sarco® 25MP direct-operated pressure regulator is designed for accurate control of very light loads. Color coded interchangeable springs allow quick and easy changes of downstream pressure ranges. This durable, compact regulator offers a competitive solution to uncomplicated steam applications.
Specifications
Brand: Spirax Sarco
Weight: 9.7 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 250 psi
Temperature Rating: 450 deg F
Body Material: Cast Iron
Dimensions: 9-3/4 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Series: 25MP
Softgoods Material: Graphite Gasket
Trim Material: Stainless Steel
Type: Direct Operated
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Small steam pressure reducing applications where an 80 to 90 percent accuracy of regulation is acceptable
- 80 to 250 psi downstream pressure ranges for red pilot valve spring
- Stainless steel valve head, stem guide, adjustment screw, pilot valve spring, cover plate
- 1/4 in NPT sensing line connection
- 9-3/4 in top to inlet center
