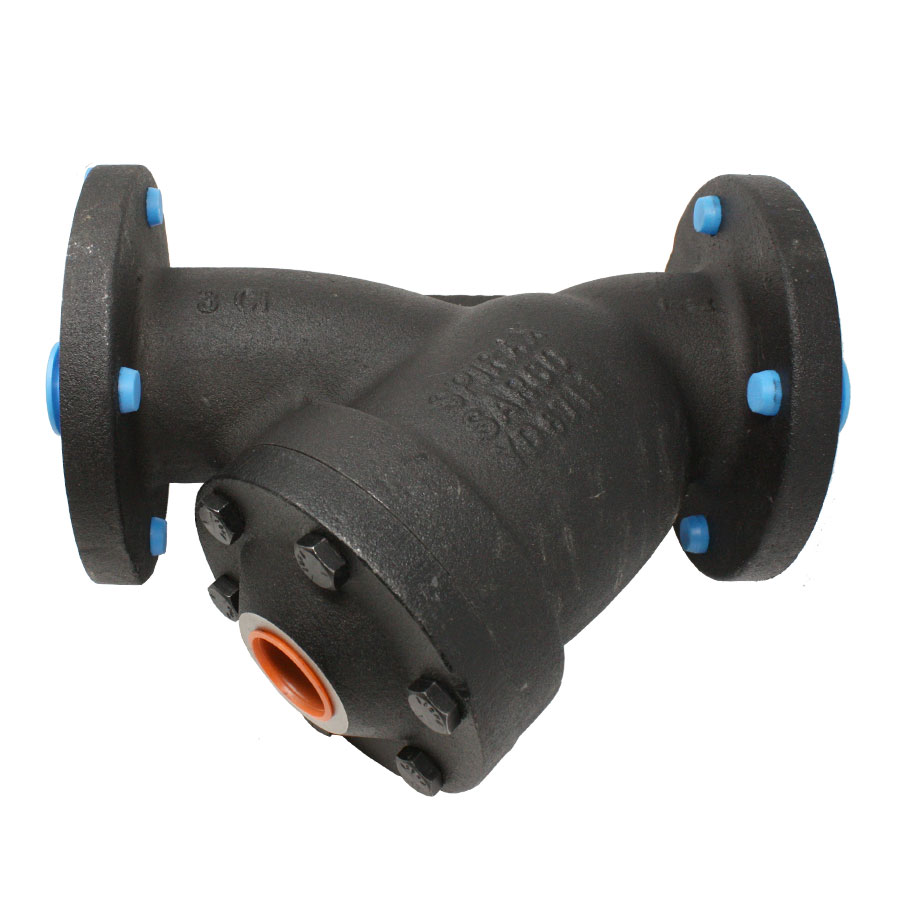

Spirax Sarco 61007 CI-125 Wye Strainer With #20 Mesh 304 Stainless Steel Screen, 3 in Nominal, 12 in OAL, ANSI 125 Flanged Connection, Graphite Softgoods
CBPN: 7580
MPN:61007
Price:
$640.17 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 3 in Nominal, 12 in Overall Length, Flanged, 1-1/4 in NPT Blow-Off, Graphite, Cast Iron Body
Spirax Sarco 61007 CI-125 Wye Strainer With #20 Mesh 304 Stainless Steel Screen, 3 in Nominal, 12 in OAL, ANSI 125 Flanged Connection, Graphite Softgoods
CBPN: 7580
MPN:61007
Price:
$640.17 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 3 in Nominal, 12 in Overall Length, Flanged, 1-1/4 in NPT Blow-Off, Graphite, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 44 lbs
Nominal Size: 3 in
Body Material: Cast Iron
Connection Type: Flanged
Pressure Class: 125 lb
Softgoods Material: Graphite
Overall Length: 12 in
Blow-Off Size: 1-1/4 in NPT
Manufacturer Name: Spirax-Sarco Inc
Standards and Approvals: ANSI 125 Connection | ASTM A-126 Class B
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 147 psig
- Maximum allowable temperature: 450 deg F at 0 to 125 psig
- Maximum allowable pressure: 200 psig at -20 to 150 deg F
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources
Spirax Sarco 61007 Spare Parts
CBPN:
16977
MPN:
64332F
In Stock: 8
Price:
$78.21 / EA
CBPN:
15414
MPN:
60892F
In Stock: 7
Price:
$196.00 / EA
Spirax Sarco 60822F Blow-Off Bushing/Cap, For Use With: IT-125 and CI-125 3 in Y-Strainer, Cast Iron
CBPN:
239619
MPN:
60822F
Check Availability
Price:
$396.00 / EA
