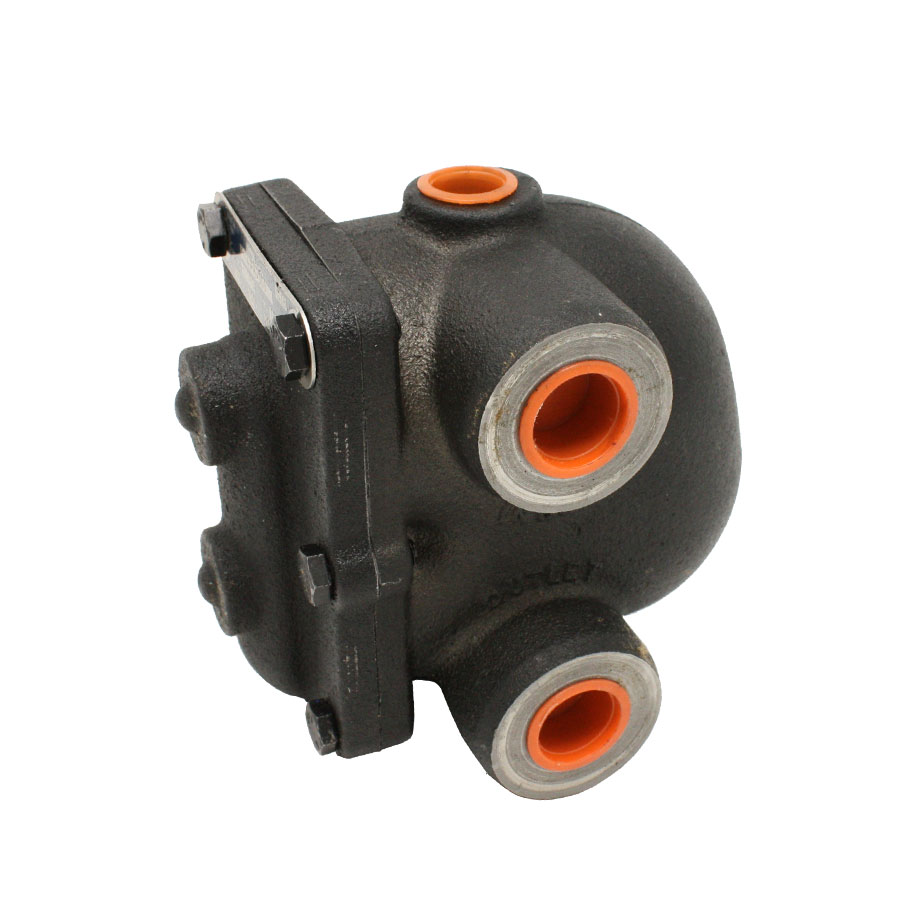

Spirax Sarco 60975, FA-150 Liquid Drain Trap, 2 in, FNPT End Style, 9.8 in L, 150 psig Operating, Cast Iron
CBPN: 36020
MPN:60975
Price:
$1833.65 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 2 in Nominal, NPT, 9.8 in Length, 150 psig Operating, Cast Iron
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 60975, FA-150 Liquid Drain Trap, 2 in, FNPT End Style, 9.8 in L, 150 psig Operating, Cast Iron
CBPN: 36020
MPN:60975
Price:
$1833.65 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 2 in Nominal, NPT, 9.8 in Length, 150 psig Operating, Cast Iron
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 26 lbs
Nominal Size: 2 in
End Style: FNPT
Length: 9.8 in
Pressure Rating: 150 psig Operating
Material: Cast Iron
Manufacturer Name: Spirax-Sarco Inc
Series: FA-150
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Stainless steel internals
- Maximum allowable pressure: 150 psig at 0 to 200 deg F
- Maximum allowable temperature: 200 deg F at 0 to 150 psig
- Parallel piping configuration
- 2 in trap
- 11000 lb/hr load at maximum operating pressure
- It is compact, vertical top in/bottom out liquid drain trap
