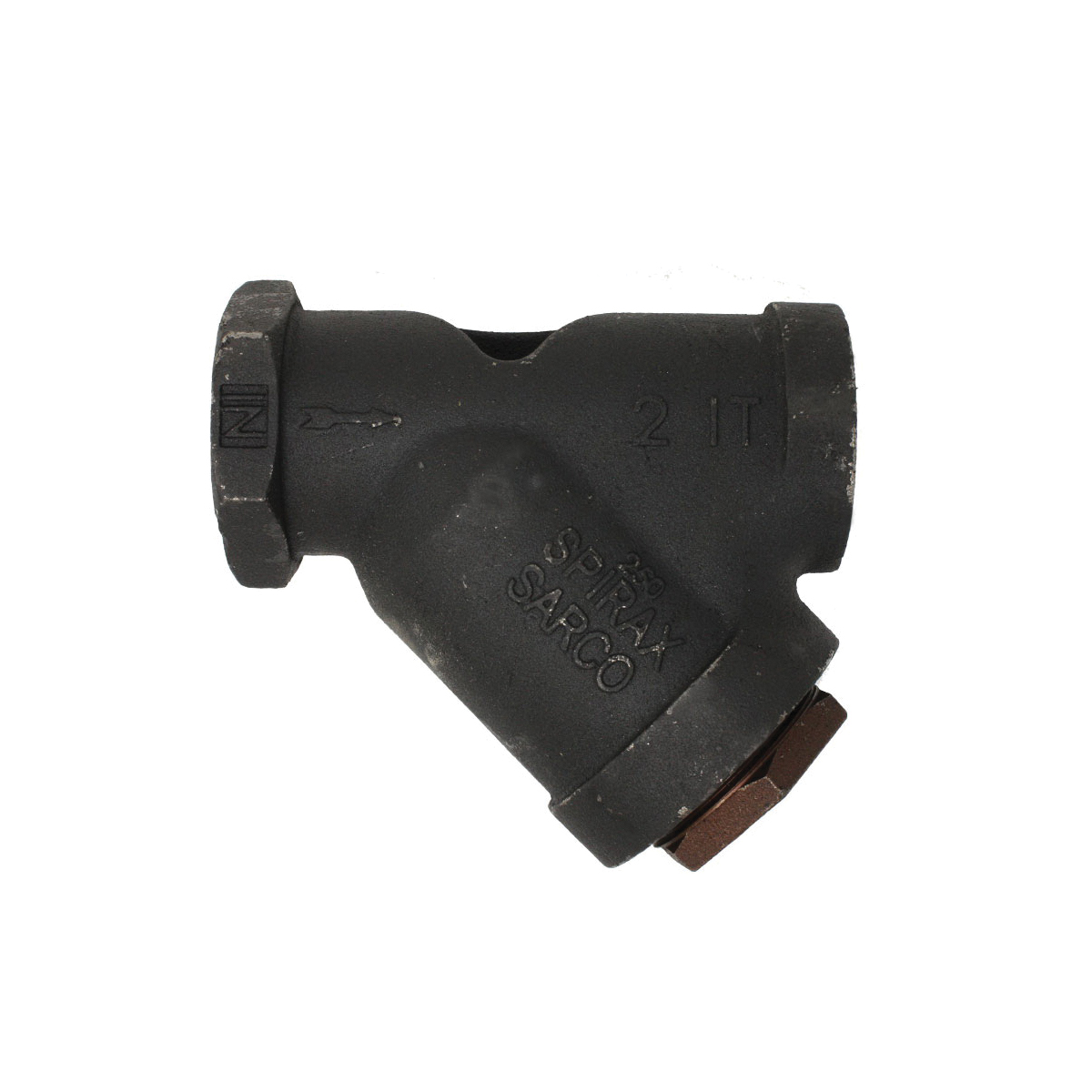

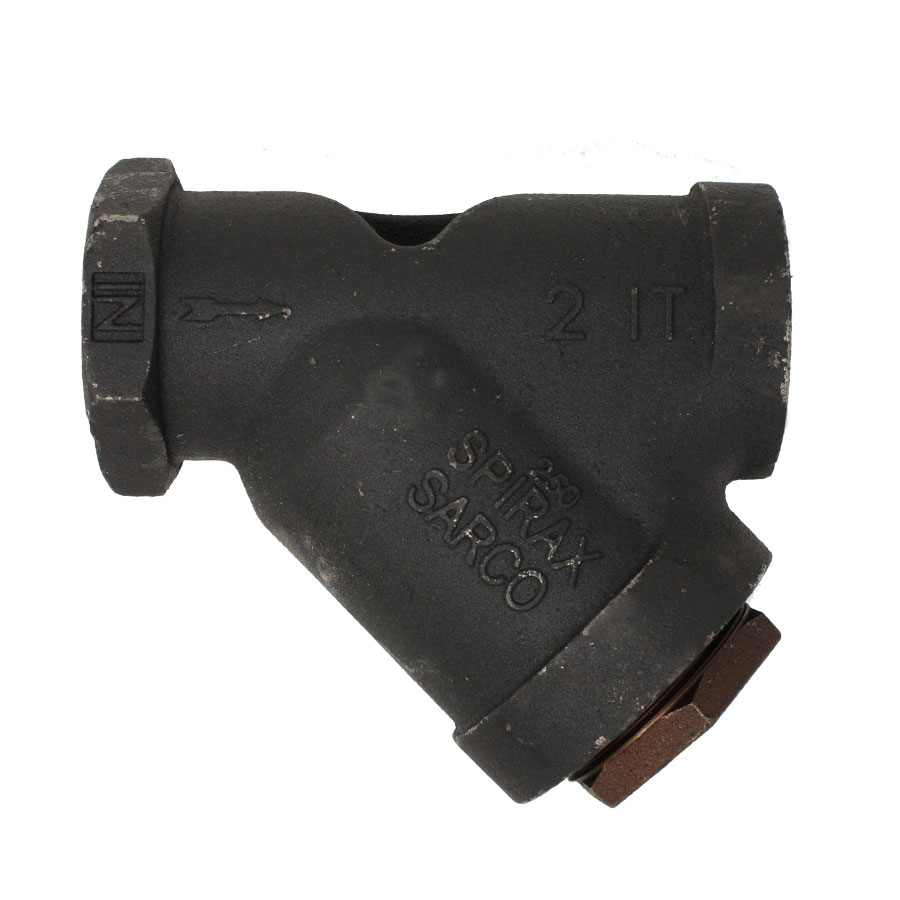

Spirax Sarco 60315 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 2 in Nominal, 7-3/4 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7577
MPN:60315
Price:
$197.47 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 2 in Nominal, 7-3/4 in Overall Length, FNPT, 1-1/2 in FNPT Blow-Off, Graphite, Cast Iron Body
Spirax Sarco 60315 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 2 in Nominal, 7-3/4 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7577
MPN:60315
Price:
$197.47 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 2 in Nominal, 7-3/4 in Overall Length, FNPT, 1-1/2 in FNPT Blow-Off, Graphite, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 12.6 lbs
Nominal Size: 2 in
Body Material: Cast Iron
Connection Type: FNPT
Softgoods Material: Graphite
Overall Length: 7-3/4 in
Blow-Off Size: 1-1/2 in NPT
Manufacturer Name: Spirax-Sarco Inc
Standards and Approvals: ASTM A-126 Class B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 7.5 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources
Spirax Sarco 60315 Spare Parts
CBPN:
7754
MPN:
53858F
In Stock: 19
Price:
$111.02 / EA
Spirax Sarco 51595F Blow-Off Bushing/Cap, For Use With: IT 2 in Y-Strainer, Cast Iron/Malleable Iron
CBPN:
136391
MPN:
51595F
Check Availability
Price:
$69.14 / EA
