Spirax Sarco IT Wye Strainer

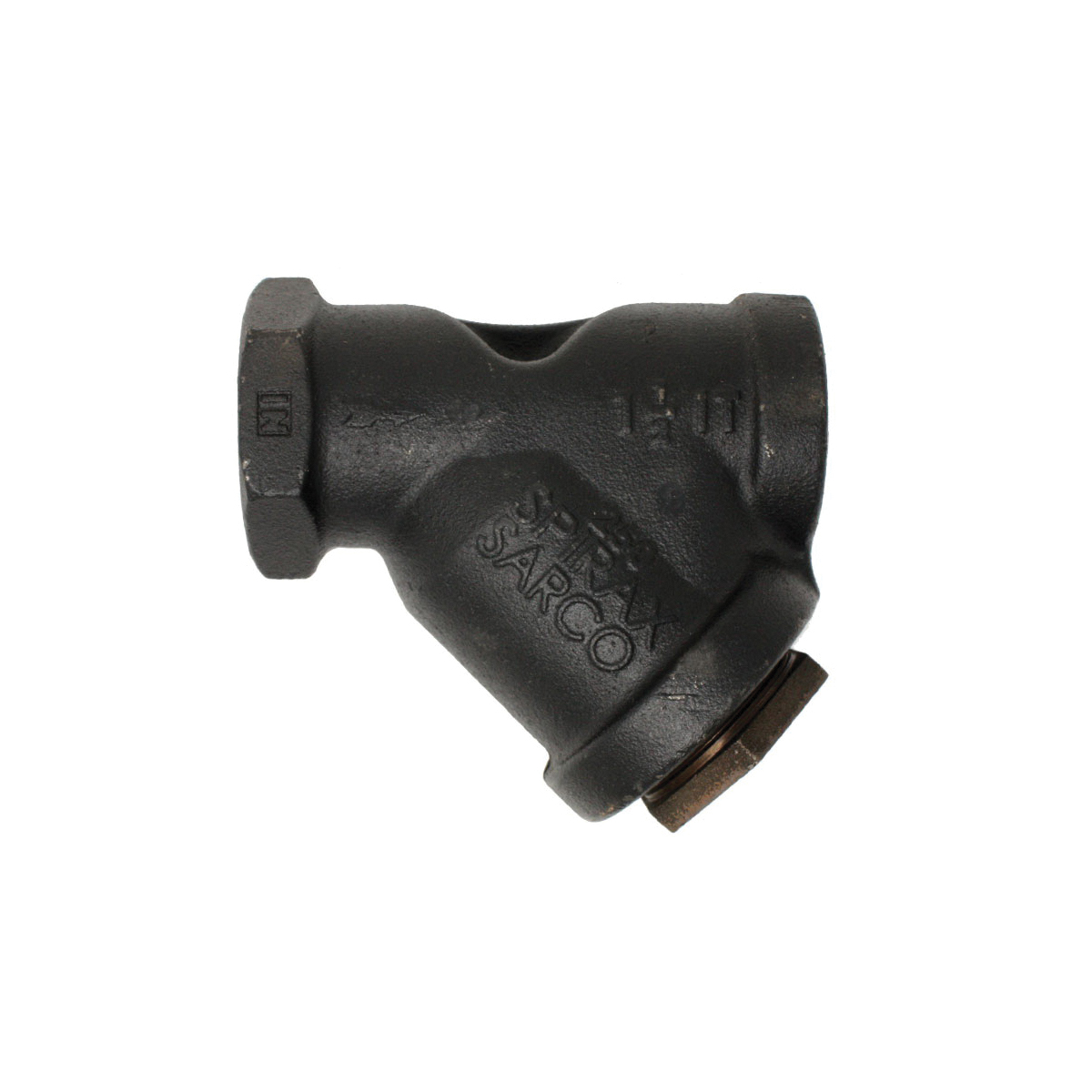

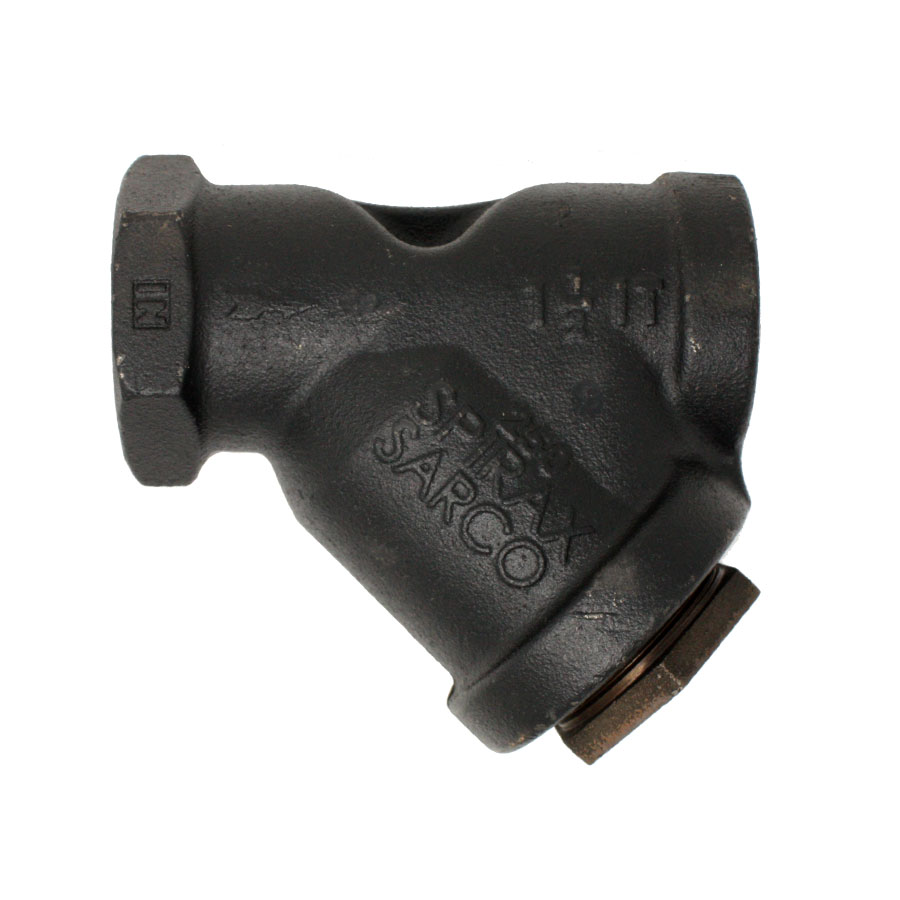

Spirax Sarco 60314 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1-1/2 in Nominal, 6.6 in OAL, FNPT Connection, Graphite Softgoods

CBPN:7576

MPN:60314

Price:
$114.01 / EA

DESCRIPTION

Spirax Sarco Wye Strainer, 1-1/2 in Nominal, 6.6 in Overall Length, FNPT, 1-1/4 in FNPT Blow-Off, Graphite, Cast Iron Body

Spirax Sarco 60314 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1-1/2 in Nominal, 6.6 in OAL, FNPT Connection, Graphite Softgoods

CBPN:7576

MPN:60314

Price:
$114.01 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Wye Strainer, 1-1/2 in Nominal, 6.6 in Overall Length, FNPT, 1-1/4 in FNPT Blow-Off, Graphite, Cast Iron Body

Specifications

BrandSpirax Sarco
Weight9.6 lbs
Nominal Size1-1/2 in
Body MaterialCast Iron
Connection TypeFNPT
Softgoods MaterialGraphite
Overall Length6.6 in
Blow-Off Size1-1/4 in NPT
Manufacturer NameSpirax-Sarco Inc
Standards and ApprovalsASTM A-126 Class B Body

Item Features

  • High efficiency steam strainers for better quality steam
  • Designed to remove solid particles from the steam supply
  • Reduce levels of contamination
  • Maintain quality of end product
  • Maximum saturated steam pressure: 250 psig
  • Maximum allowable temperature: 406 deg F at 0 to 250 psig
  • Maximum allowable pressure: 300 psig at -20 to 150 deg F
  • 6.4 in inlet to outlet
  • Vertical down or horizontal piping configuration
  • Graphite cap gasket
