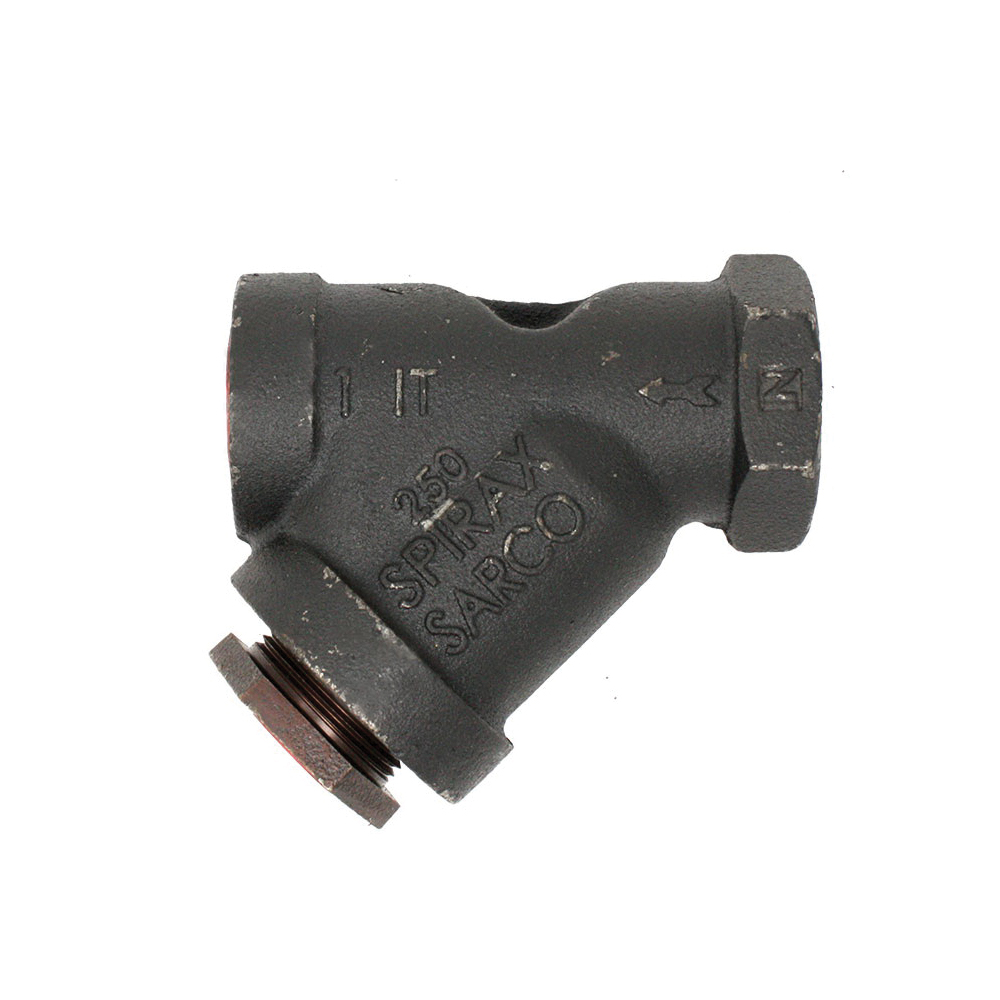

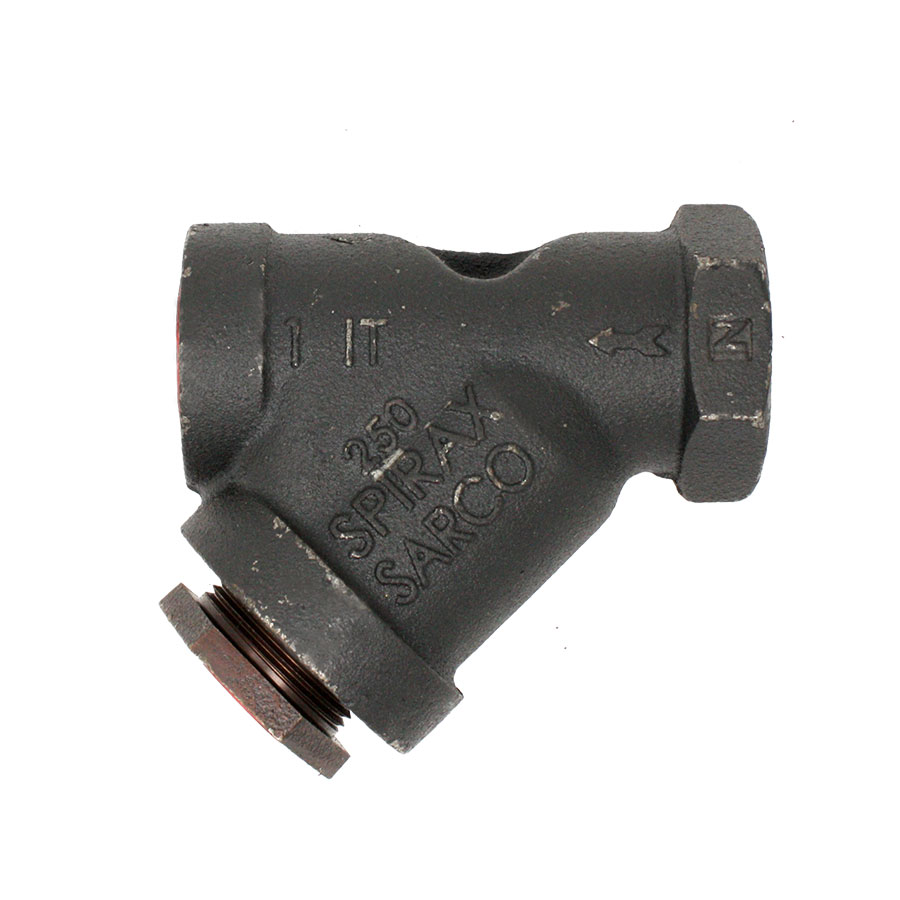

Spirax Sarco 60312, IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1 in, 5 in OAL, FNPT Connection, Graphite
CBPN: 7574
MPN:60312
Price:
$76.88 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1 in Nominal, 5 in Overall Length, FNPT, 3/4 in FNPT Blow-Off, Graphite Softgoods, Cast Iron Body
Spirax Sarco 60312, IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1 in, 5 in OAL, FNPT Connection, Graphite
CBPN: 7574
MPN:60312
Price:
$76.88 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1 in Nominal, 5 in Overall Length, FNPT, 3/4 in FNPT Blow-Off, Graphite Softgoods, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 4.3 lbs
Nominal Size: 1 in
Body Material: Cast Iron
Connection Type: FNPT
Softgoods Material: Graphite
Overall Length: 5 in
Blow-Off Size: 3/4 in NPT
Manufacturer Name: Spirax-Sarco Inc
Series: IT Series
Standards and Approvals: ASTM A-126 Class B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 4.9 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources
Spirax Sarco 60312 Spare Parts
CBPN:
7751
MPN:
53840F
In Stock: 15
Price:
$58.94 / EA
Spirax Sarco 51360F Blow-Off Bushing/Cap, For Use With: IT 1 in Y-Strainer, Cast Iron/Malleable Iron
CBPN:
140763
MPN:
51360F
Check Availability
Price:
$45.34 / EA
