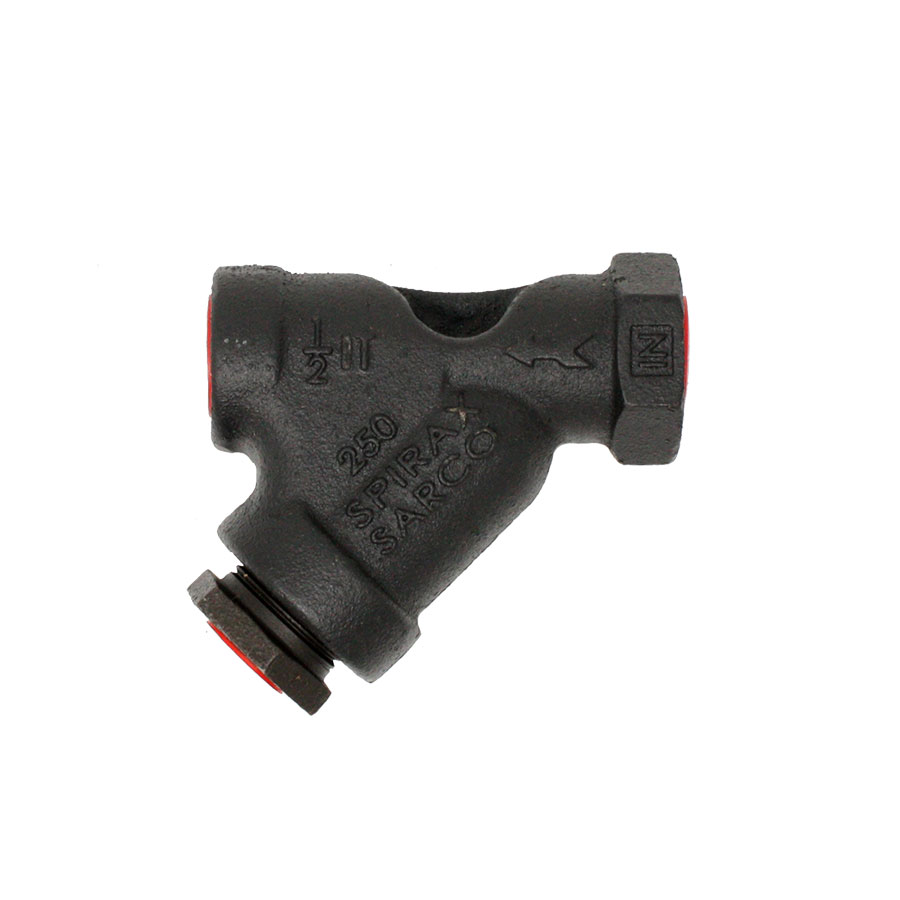

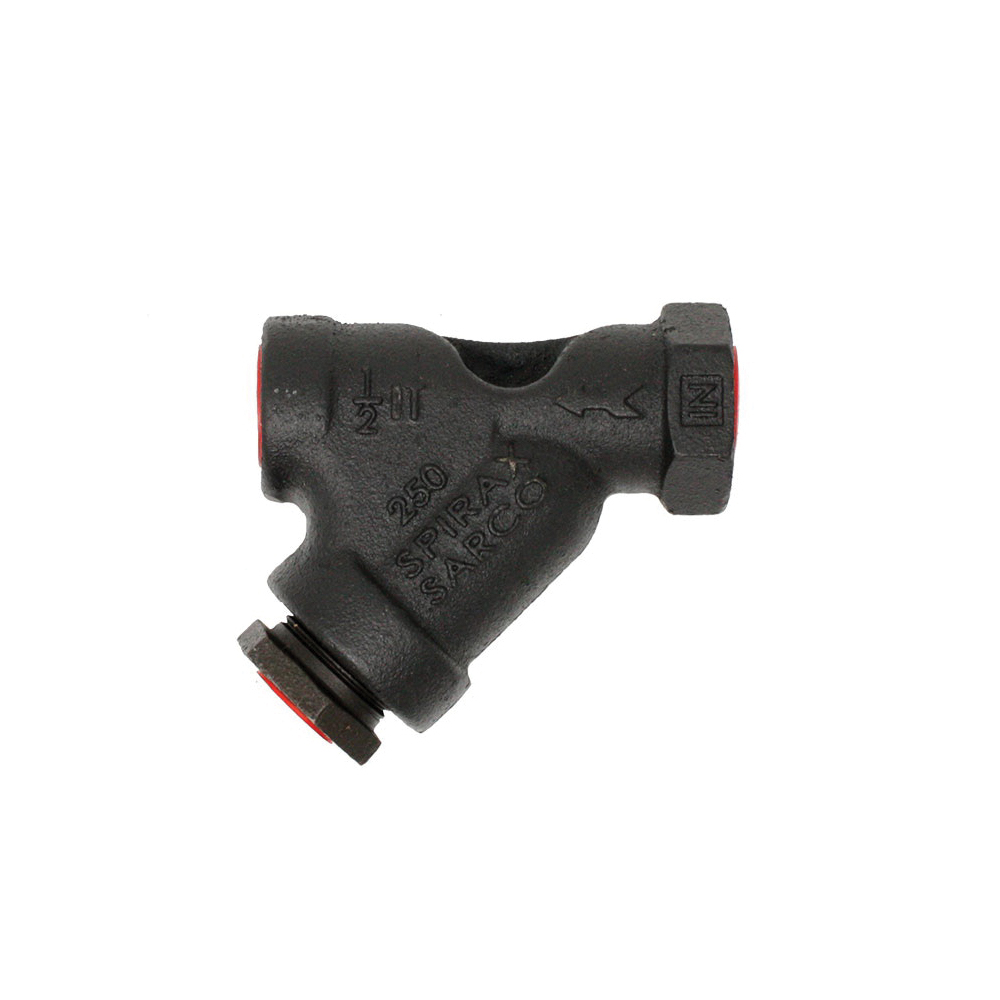

Spirax Sarco 60310 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1/2 in Nominal, 3.9 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7572
MPN:60310
Price:
$62.39 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1/2 in Nominal, 3.9 in Overall Length, FNPT, 3/8 in FNPT Blow-Off, Graphite, Cast Iron Body
Spirax Sarco 60310 IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 1/2 in Nominal, 3.9 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7572
MPN:60310
Price:
$62.39 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1/2 in Nominal, 3.9 in Overall Length, FNPT, 3/8 in FNPT Blow-Off, Graphite, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 1.3 lbs
Nominal Size: 1/2 in
Body Material: Cast Iron
Connection Type: FNPT
Softgoods Material: Graphite
Overall Length: 3.9 in
Blow-Off Size: 3/8 in NPT
Manufacturer Name: Spirax-Sarco Inc
Standards and Approvals: ASTM A-126 Class B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 3.4 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources
Spirax Sarco 60310 Spare Parts
CBPN:
7749
MPN:
53828F
In Stock: 2
Price:
$32.87 / EA
CBPN:
103383
MPN:
51329F
Check Availability
Price:
$36.26 / EA
CBPN:
239120
MPN:
48847F
Check Availability
Price:
$29.47 / EA
