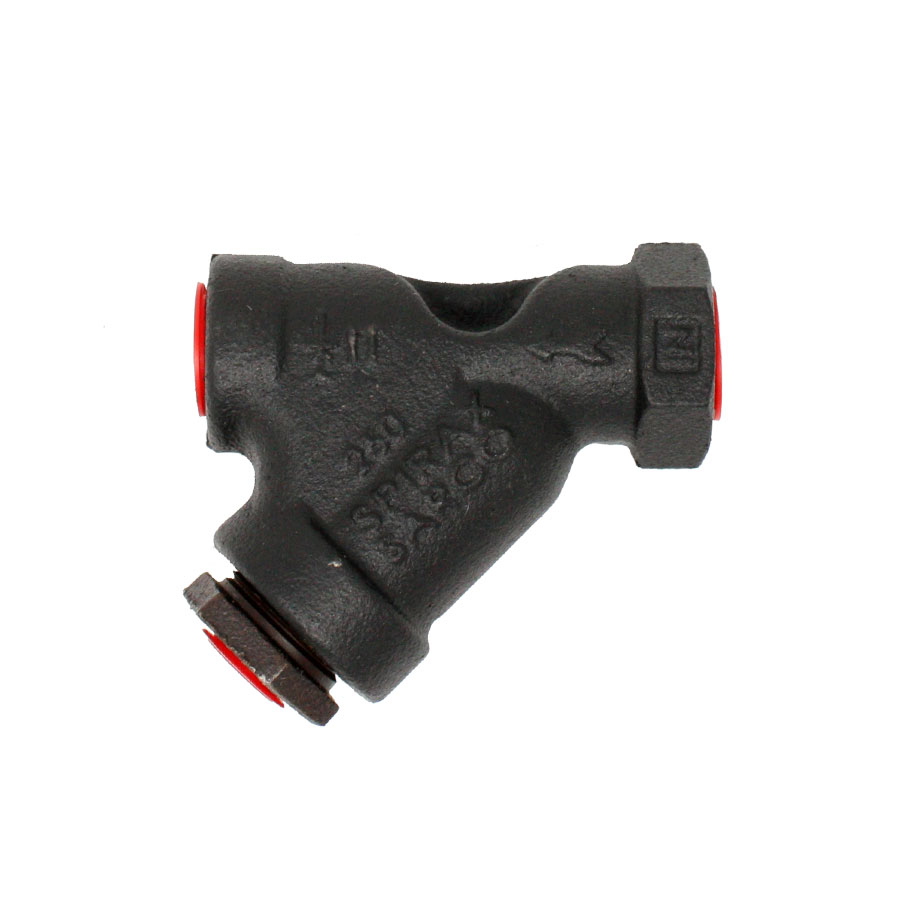

Spirax Sarco 60294 IT Wye Strainer With 60/100 Mesh Standard 304 Stainless Steel Screen, 1/2 in Nominal, 3.9 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7278
MPN:60294
Price:
$72.33 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1/2 in Nominal, 3.9 in Overall Length, FNPT, 3/8 in FNPT Blow-Off, Graphite, Cast Iron Body
Spirax Sarco 60294 IT Wye Strainer With 60/100 Mesh Standard 304 Stainless Steel Screen, 1/2 in Nominal, 3.9 in OAL, FNPT Connection, Graphite Softgoods
CBPN: 7278
MPN:60294
Price:
$72.33 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 1/2 in Nominal, 3.9 in Overall Length, FNPT, 3/8 in FNPT Blow-Off, Graphite, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 1.3 lbs
Nominal Size: 1/2 in
Body Material: Cast Iron
Connection Type: FNPT
Softgoods Material: Graphite
Overall Length: 3.9 in
Blow-Off Size: 3/8 in NPT
Manufacturer Name: Spirax-Sarco Inc
Standards and Approvals: ASTM A-126 Class B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 3.4 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
