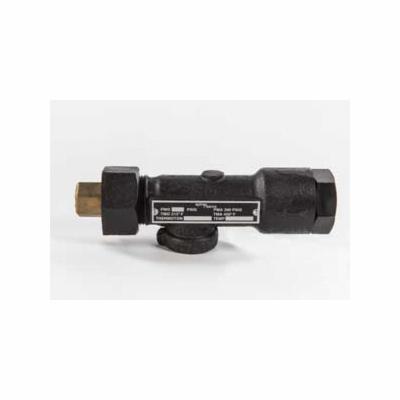

Spirax Sarco 59490, CL-6 Liquid Expansion Steam Trap, 3/4 in, NPT, 110 to 160 deg F Operating, 125 psig Operating, Cast Iron
CBPN: 78222
MPN:59490
Price:
$1076.53 / EA
DESCRIPTION
Spirax Sarco Liquid Expansion Steam Trap, 3/4 in Nominal, NPT, 125 psig Operating, Cast Iron, 110 to 160 deg F Operating
Types C Thermotons can be field adjusted to hold back condensate until it has cooled to between 75 deg F and 212 deg F. (Four 50 deg F adjustment ranges are available.) Thermotons can therefore function as both steam traps and very simple temperature regulators.
Spirax Sarco 59490, CL-6 Liquid Expansion Steam Trap, 3/4 in, NPT, 110 to 160 deg F Operating, 125 psig Operating, Cast Iron
CBPN: 78222
MPN:59490
Price:
$1076.53 / EA
DESCRIPTION
Spirax Sarco Liquid Expansion Steam Trap, 3/4 in Nominal, NPT, 125 psig Operating, Cast Iron, 110 to 160 deg F Operating
Types C Thermotons can be field adjusted to hold back condensate until it has cooled to between 75 deg F and 212 deg F. (Four 50 deg F adjustment ranges are available.) Thermotons can therefore function as both steam traps and very simple temperature regulators.
Specifications
Brand: Spirax Sarco
Weight: 4.5 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 125 psig
Max Allowable Pressure: 300 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 300 psig
Manufacturer Name: Spirax-Sarco Inc
Series: CL-6G
Application: Steam trapping applications, Such as outdoor storage tanks and non-critical tracing lines, Where extreme sub-cooling is desirable to conserve energy, Automatic drainage of steam traps and Process equipment in which residual condensate may freeze if the steam supply is interrupted
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Brass and stainless steel internals
