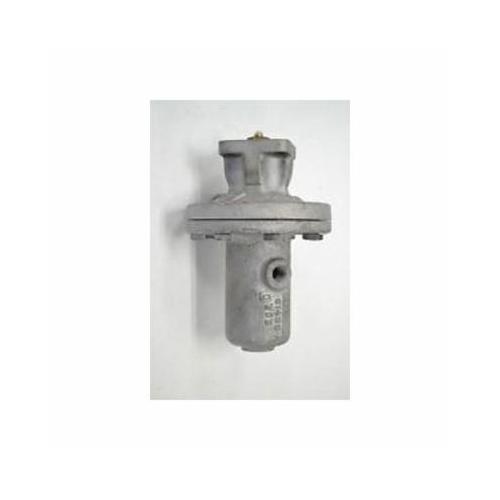

Spirax Sarco 57563 25PA Air Loaded Pilot, Cast Iron
CBPN: 18733
MPN:57563
Price:
$871.78 / EA
DESCRIPTION
Spirax Sarco Air Loaded Pilot, 1-1/4 in, NPT, 300 psig Maximum Inlet Pressure, 450 deg F Maximum Inlet Temperature, Cast Iron
The Spirax Sarco 25-Series regulators are a versatile family of self-acting pressure regulators with control pilots and interchangeable main valves for most steam applications.
Spirax Sarco 57563 25PA Air Loaded Pilot, Cast Iron
CBPN: 18733
MPN:57563
Price:
$871.78 / EA
DESCRIPTION
Spirax Sarco Air Loaded Pilot, 1-1/4 in, NPT, 300 psig Maximum Inlet Pressure, 450 deg F Maximum Inlet Temperature, Cast Iron
The Spirax Sarco 25-Series regulators are a versatile family of self-acting pressure regulators with control pilots and interchangeable main valves for most steam applications.
Specifications
Brand: Spirax Sarco
Weight: 8 lbs
Type: Pressure Pilot
Material: Cast Iron
Series: 25PA
Connection Size: 1-1/4 in
Connection Type: FNPT
Manufacturer Name: Spirax-Sarco Inc
Maximum Inlet Pressure: 120 psi
Maximum Inlet Temperature: 450 deg F
Warranty: 2 Years
Country of Origin: US
Item Features
- Wide range of screwed and flanged connections to match plant standards
- Patented self scrubbing guide for long, trouble-free service
- Fatigue-tested diaphragm designed without a piston to prevent danger of sticking
- Maximum allowable pressure: 250 psig at 0 to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
