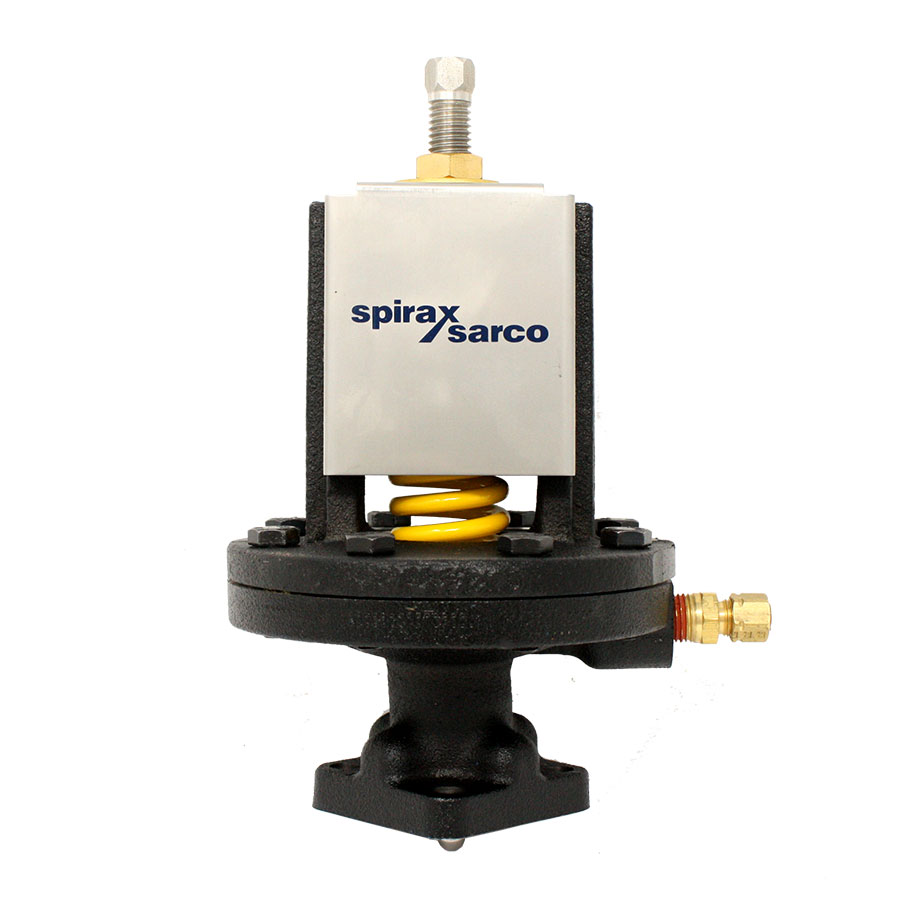

Spirax Sarco 57322, 25BP Back Pressure Pilot, Cast Iron, Yellow Spring, 3 to 30 psi
CBPN:30116
MPN:57322
Price:
$908.18 / EA
DESCRIPTION
Spirax Sarco 25BP Back Pressure Pilot, Cast Iron, Yellow Spring, 3 to 30 psi Pressure
The 25BP Back Pressure Regulator maintains a constant upstream pressure in a piping system. The reverse-acting pressure pilot opens the main valve when the sensed upstream pressure increases. The 25BP is NOT a safety valve, and should NEVER be used as such.
Spirax Sarco 57322, 25BP Back Pressure Pilot, Cast Iron, Yellow Spring, 3 to 30 psi
CBPN:30116
MPN:57322
Price:
$908.18 / EA
DESCRIPTION
Spirax Sarco 25BP Back Pressure Pilot, Cast Iron, Yellow Spring, 3 to 30 psi Pressure
The 25BP Back Pressure Regulator maintains a constant upstream pressure in a piping system. The reverse-acting pressure pilot opens the main valve when the sensed upstream pressure increases. The 25BP is NOT a safety valve, and should NEVER be used as such.
Specifications
Brand: Spirax Sarco
Weight: 9lbs
Material: Cast Iron
Series: 25BP
Type: Pressure Pilot
Connection Size: 1 in
Connection Type: NPT
Pressure Range: 3 to 30 psi
Dimensions: 18.9 in H
Manufacturer Name: Spirax-Sarco Inc
Warranty: 2 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 126 Class B Body
Item Features
- Maximum allowable pressure: 250 psig at 0 to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- 10.5 Cv
- 3 to 30 psi upstream pressure for yellow spring valve
