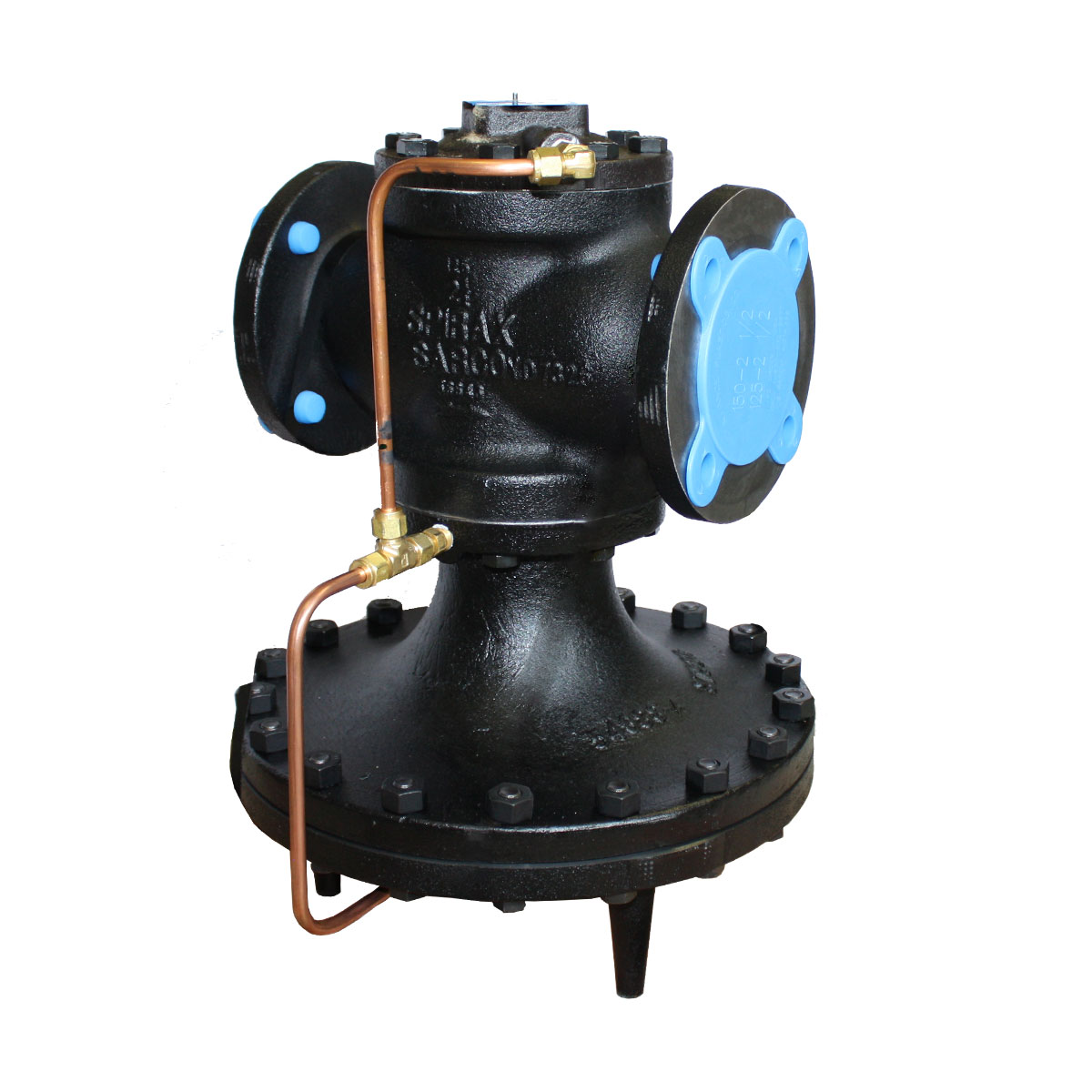

Spirax Sarco 54894, 25P Pilot Operated Pressure Reducing Main Valve, 2-1/2 in, ANSI 250 Flange, 250 psi, 450 deg F
CBPN:7534
MPN:54894
Price:
$4327.05 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 2-1/2 in Nominal, ANSI 250 Flange, 250 psi, 450 deg F, Cast Iron Body, Media: Steam, 27.9 in H
The 25P is a self-actuated pilot-operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
To see a diagram and listing of available replacement parts for the Spirax Sarco 54894 main valve, visit our Spirax Sarco 54894 Main Valve Spare Parts page.
Spirax Sarco 54894, 25P Pilot Operated Pressure Reducing Main Valve, 2-1/2 in, ANSI 250 Flange, 250 psi, 450 deg F
CBPN:7534
MPN:54894
Price:
$4327.05 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 2-1/2 in Nominal, ANSI 250 Flange, 250 psi, 450 deg F, Cast Iron Body, Media: Steam, 27.9 in H
The 25P is a self-actuated pilot-operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
To see a diagram and listing of available replacement parts for the Spirax Sarco 54894 main valve, visit our Spirax Sarco 54894 Main Valve Spare Parts page.
Specifications
Brand: Spirax Sarco
Weight: 157lbs
Body Material: Cast Iron
End Style: ANSI 250 Flange
Nominal Size: 2-1/2 in
Series: 25P
Temperature Rating: 450 deg F
Type: Pilot Operated
Pressure Rating: 250 psi
Dimensions: 27.9 in H
Media: Steam
Manufacturer Name: Spirax-Sarco Inc
Warranty: 2 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 126 Class B Body
Item Features
- Combination of pilots allow for different types of control in one regulator
- Fatigue-tested diaphragm designed without a piston to prevent danger of sticking
- Stainless steel internals for excellent durability and resistance to corrosion
- Maximum allowable pressure: 250 psig at 0 to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- Patented self scrubbing guide for long, trouble-free service
- Accurate control of pressure with choice of color coded springs
- Horizontal installation
- 13.6 in inlet to outlet
