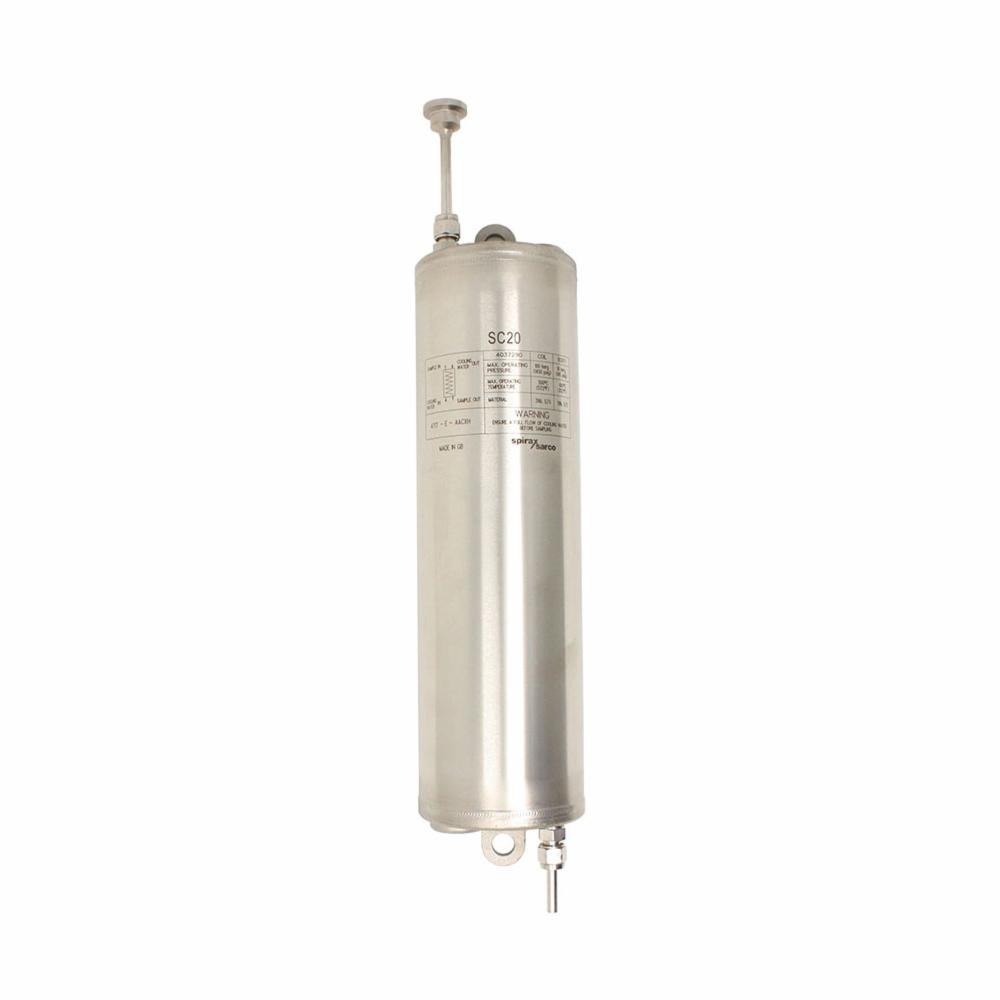

Spirax Sarco 4037197, SC20 Sample Cooler, 1/2 in Cold Water Inlet, Austenitic Stainless Steel
CBPN: 37602
MPN:4037197
Price:
$2951.13 / EA
DESCRIPTION
Spirax Sarco Sample Cooler, 1/2 in Cold Water Inlet, 1/4 NPT Inlet & 6mm OD Tube Outlet Connections, Austenitic Stainless Steel, 450 mm H
The Spirax Sarco SC20 sample cooler is used to cool samples of boiler water or steam. The cooler consists of a stainless steel coil, through which the sample flows, and a stainless steel body, through which cooling water flows in the opposite direction. A pre-drilled mounting bracket is incorporated into both end caps.
Specifications
Brand: Spirax Sarco
Weight: 7 lbs
Material: Austenitic Stainless Steel
Cooling Water Connection: 1/2 in FNPT
Sample Tube Inlet Connection: 1/4 in MNPT
Sample Tube Outlet Connection: 6mm Tube
Dimensions: 450 mm H
Manufacturer Name: Spirax-Sarco Inc
Series: SC20
Application: For boiler water, Steam or condensate sampling
Standards and Approvals: UKAS Quality management
Item Features
- Maximum design pressure: 145 psig at 212 deg F
- Maximum design temperature: 212 deg F at 145 psig
- Maximum cold hydraulic test pressure: 282 psig
- Austenitic stainless steel coil
- Stainless steel body and coil to minimize corrosion
- Counter current flow for efficient cooling
