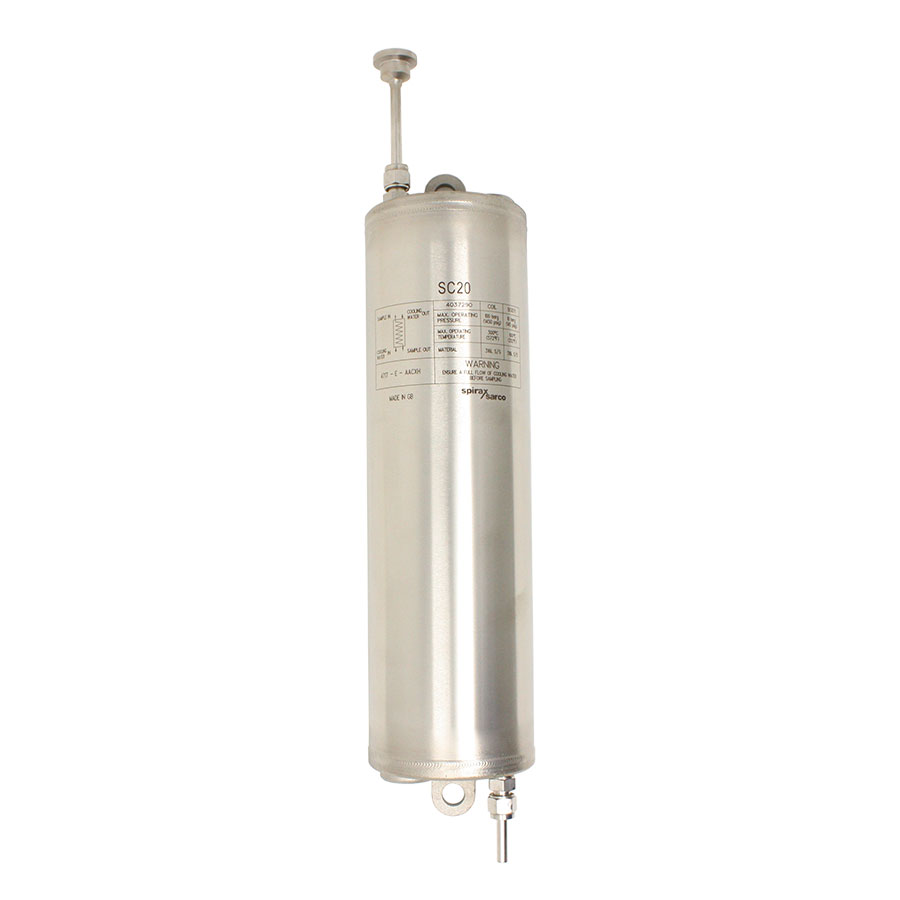

Spirax Sarco 4037195, SC20 Sample Cooler With Ferrule, 1/2 in Cold Water Inlet, Stainless Steel
CBPN: 59622
MPN:4037195
DESCRIPTION
Spirax Sarco Sample Cooler, 1/2 in FNPT Cold Water Inlet, 1/2 Clamp Inlet & 6mm OD Tube Outlet Sample Tube Connections, Austenitic Stainless Steel, 450 mm H
The Spirax Sarco SC20 sample cooler is used to cool samples of boiler water or steam. The cooler consists of a stainless steel coil, through which the sample flows, and a stainless steel body, through which cooling water flows in the opposite direction. A pre-drilled mounting bracket is incorporated into both end caps. The SC20 is also available with a clamp adaptor for connecting to an industry standard 1/2" sanitary clamp fitting.
Spirax Sarco 4037195, SC20 Sample Cooler With Ferrule, 1/2 in Cold Water Inlet, Stainless Steel
CBPN: 59622
MPN:4037195
DESCRIPTION
Spirax Sarco Sample Cooler, 1/2 in FNPT Cold Water Inlet, 1/2 Clamp Inlet & 6mm OD Tube Outlet Sample Tube Connections, Austenitic Stainless Steel, 450 mm H
The Spirax Sarco SC20 sample cooler is used to cool samples of boiler water or steam. The cooler consists of a stainless steel coil, through which the sample flows, and a stainless steel body, through which cooling water flows in the opposite direction. A pre-drilled mounting bracket is incorporated into both end caps. The SC20 is also available with a clamp adaptor for connecting to an industry standard 1/2" sanitary clamp fitting.
Specifications
Item Features
- For boiler water, steam, or condensate sampling
- Stainless steel body and coil to minimize corrosion
- Counter current flow for efficient cooling
- Note: The SC20 sample cooler is not polished or specially treated internally, and the internal finish of the coil is not specified.
- 10 barg at 100 deg C maximum design pressure
- Maximum design temperature: 100 deg C at 10 barg
- Maximum cold hydraulic test pressure: 16 barg
- Ferrule for Sanitary Clamp Fitting
