Spirax Sarco 3731391 PF6, PF61G-2NO-R 2-Port Fast Opening Piston Actuated On/Off Valve With 63 mm Dia Actuator and Flow Regulator, 3/4 in Nominal, NPT End Style, 316L Stainless Steel Body
CBPN:271109
MPN:3731391
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening, Series: PF6, 3/4 in Nominal, NPT End Style, 130 psig Pressure, 14 to 356 deg F, Media: Air/Gas/Oil/Steam/Water, 2.96 in Inlet to Outlet Length, 6.93 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods

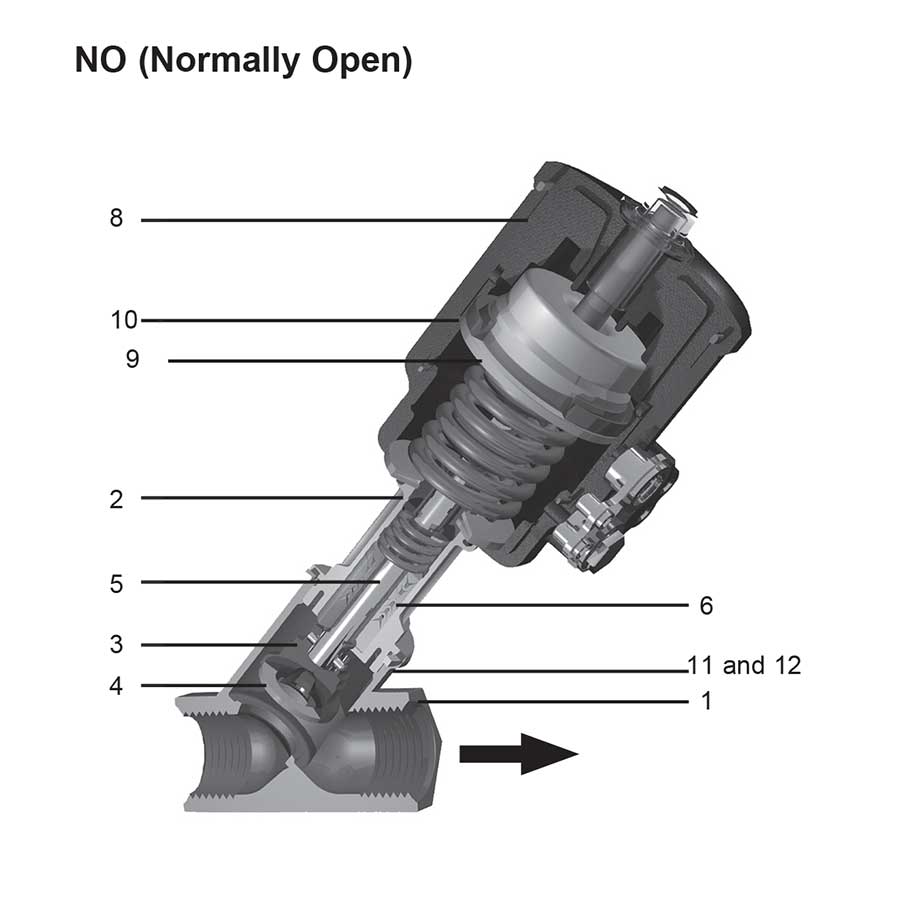

A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Spirax Sarco 3731391 PF6, PF61G-2NO-R 2-Port Fast Opening Piston Actuated On/Off Valve With 63 mm Dia Actuator and Flow Regulator, 3/4 in Nominal, NPT End Style, 316L Stainless Steel Body
CBPN:271109
MPN:3731391
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening, Series: PF6, 3/4 in Nominal, NPT End Style, 130 psig Pressure, 14 to 356 deg F, Media: Air/Gas/Oil/Steam/Water, 2.96 in Inlet to Outlet Length, 6.93 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods
A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Specifications
Item Features
- These valves are designed for flow under the seat (port 2 to 1)
- 316 stainless steel stem
- FKM O-ring/piston lip seal/stem O-ring
- PTFE gasket/plug seal/stem seal
