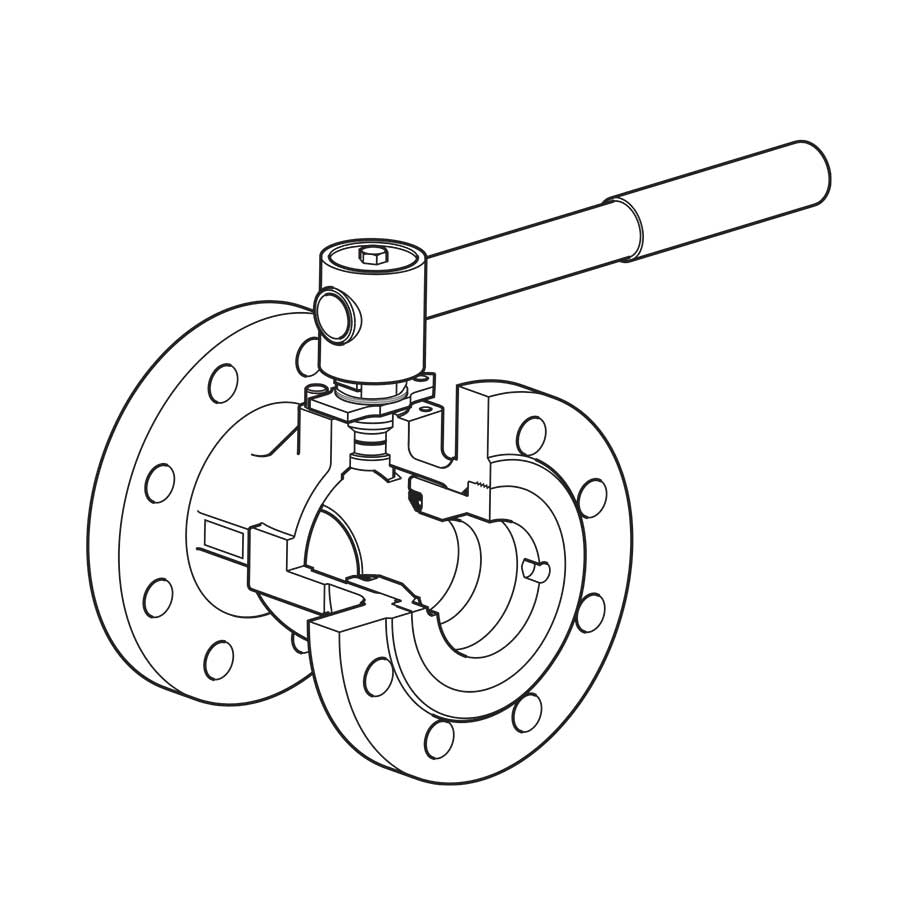

Spirax Sarco 3510520 M40Vi ISO Low Pressure Ball Valve, 2-1/2 in Nominal, ANSI 150 Flange End Style, 145 psig Pressure, Stainless Steel Body, Lever Handle Actuator
CBPN: 239287
MPN:3510520
Price:
$1977.43 / EA
DESCRIPTION
Spirax Sarco Ball Valve, Low Pressure, 2-1/2 in Nominal, ANSI 150 Flange, 145 psig, Reduced Bore Port, Media: Fluid/Steam, Stainless Steel Body, Stainless Steel Ball, Stainless Steel Trim, PTFE Seat/EPDM O-Ring, Lever Handle Actuator, -20 to 446 deg F
Both the M40Si and M40Vi are reduced bore ball valves, with a single piece body, having ISO mounting as standard. They are designed to be isolating valves, which can be used with the majority of industrial fluids, not control valves.
Spirax Sarco 3510520 M40Vi ISO Low Pressure Ball Valve, 2-1/2 in Nominal, ANSI 150 Flange End Style, 145 psig Pressure, Stainless Steel Body, Lever Handle Actuator
CBPN: 239287
MPN:3510520
Price:
$1977.43 / EA
DESCRIPTION
Spirax Sarco Ball Valve, Low Pressure, 2-1/2 in Nominal, ANSI 150 Flange, 145 psig, Reduced Bore Port, Media: Fluid/Steam, Stainless Steel Body, Stainless Steel Ball, Stainless Steel Trim, PTFE Seat/EPDM O-Ring, Lever Handle Actuator, -20 to 446 deg F
Both the M40Si and M40Vi are reduced bore ball valves, with a single piece body, having ISO mounting as standard. They are designed to be isolating valves, which can be used with the majority of industrial fluids, not control valves.
Specifications
Brand: Spirax Sarco
Weight: 26.4 lbs
Nominal Size: 2-1/2 in
End Style: ANSI 150 Flange
Pressure Rating: 145 psig
Body Material: Stainless Steel
Port Type: Reduced Bore
Softgoods Material: PTFE Seat/EPDM O-Ring
Actuator Type: Lever Handle
Ball Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Media: Fluid/Steam
Temperature Rating: -20 to 446 deg F
Trim Material: Stainless Steel
Type: Low Pressure
Country of Origin: US
Standards and Approvals: AISI 316/AISI 420 Stem | ASTM A351 CF8M Body | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC | ISO 5211 Pad | ISO 5208(Rate A)/EN 12266-1(Rate A) | SAE 1010 Lever
Item Features
- Precision design providing compact valves
- Quarter turn on/off ensuring easy operation and maintenance
- Low torque valves with smaller actuators for automation
- Unrestricted flow allowing low pressure drop and high capacity
- Corrosion resistant bodies ensure long life of the product
- Quick and easy to automate
- Modified linear flow characteristic
- Maximum cold hydraulic test pressure: 1109 psig
- Maximum allowable pressure: 739 psig at 100 deg F
- 227 Cv
- 41 ft-lb torque
- Maximum allowable/operating temperature: 446 deg F at 0 psig
- 145 psig maximum operating pressure for saturated steam service
- 150 lb pressure
- 7-1/2 in inlet to outlet length
- 5.7 in top to inlet center
