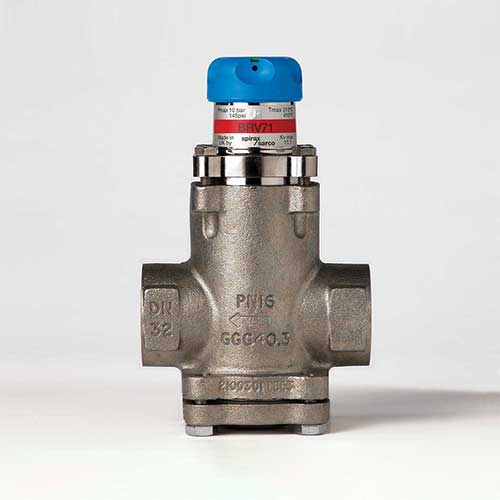

Spirax Sarco 2104190, BRV71 Direct Operated Pressure Regulator, 2 in, NPT, 50 to 130 psig Downstream, 184 deg C
CBPN:31728
MPN:2104190
Price:
$2295.93 / EA
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 2 in Nominal, NPT, 50 to 130 psig Downstream, 184 deg C, Ductile Iron Body, Media: Steam/Compressed Air and Other Gases, Virgin PTFE Washer/EPDM O-Ring, 8.6 in H
The BRV71/73 is extremely compact in size and maintains the added benefit of enhanced resistance to pressure and load fluctuations. BRV valves are designed for use with steam, compressed air and other gases and are ideal for point of use installations, offering a cost effective alternative to more sophisticated valves.
To see a diagram and listing of available replacement parts for the Spirax Sarco 2104190 Pressure Reducing Valve, visit our Spirax Sarco 2104190 Pressure Reducing Valve Spare Parts Selection Guide.
Spirax Sarco 2104190, BRV71 Direct Operated Pressure Regulator, 2 in, NPT, 50 to 130 psig Downstream, 184 deg C
CBPN:31728
MPN:2104190
Price:
$2295.93 / EA
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 2 in Nominal, NPT, 50 to 130 psig Downstream, 184 deg C, Ductile Iron Body, Media: Steam/Compressed Air and Other Gases, Virgin PTFE Washer/EPDM O-Ring, 8.6 in H
The BRV71/73 is extremely compact in size and maintains the added benefit of enhanced resistance to pressure and load fluctuations. BRV valves are designed for use with steam, compressed air and other gases and are ideal for point of use installations, offering a cost effective alternative to more sophisticated valves.
To see a diagram and listing of available replacement parts for the Spirax Sarco 2104190 Pressure Reducing Valve, visit our Spirax Sarco 2104190 Pressure Reducing Valve Spare Parts Selection Guide.
Specifications
Brand: Spirax Sarco
Weight: 20lbs
Body Material: Ductile Iron
End Style: NPT
Nominal Size: 2 in
Series: BRV71
Temperature Rating: 184 deg C
Type: Direct Operated
Pressure Rating: 50 to 130 psig Downstream
Dimensions: 8.6 in H
Media: Steam/Compressed Air and Other Gases
Softgoods Material: Virgin PTFE Washer/EPDM O-Ring
Manufacturer Name: Spirax-Sarco Inc
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ISO 9001
Item Features
- PN16 Body design conditions
- Maximum allowable pressure: 16 barg
- Maximum allowable temperature: -10 to 184 deg C
- 18.7 Cv
- Orange color coded spring
