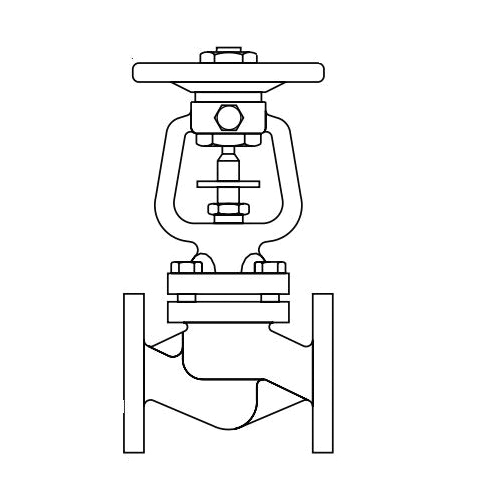

Spirax Sarco 1842652 BSA3T Bellows Sealed Stop Valve With Throttling Plug, 1/2 in Nominal, ANSI 300 Flange End Style, 300 lb, Cast Steel Body
CBPN: 240384
MPN:1842652
DESCRIPTION
Spirax Sarco Stop Valve, Bellows Sealed, 1/2 in Nominal, ANSI 300 Flange End Style, 300 lb Pressure Class, Media: Steam/Gas, Handwheel Actuator, 6 in Inlet to Outlet Length, 8.07 in Top to Inlet Center, Cast Steel Body, Stainless Steel Trim
The BSA3T is a low maintenance flanged in-line Bellows Sealed Isolation Valve for use on steam, condensate, gas and other fluid applications where zero emissions from the stem seal are important. BSA3T is fitted with a throttling valve plug that allows close control when opening the valve. Locking screw and stroke limiter maintains correct flow rate once the flow rate is obtained.
Spirax Sarco 1842652 BSA3T Bellows Sealed Stop Valve With Throttling Plug, 1/2 in Nominal, ANSI 300 Flange End Style, 300 lb, Cast Steel Body
CBPN: 240384
MPN:1842652
DESCRIPTION
Spirax Sarco Stop Valve, Bellows Sealed, 1/2 in Nominal, ANSI 300 Flange End Style, 300 lb Pressure Class, Media: Steam/Gas, Handwheel Actuator, 6 in Inlet to Outlet Length, 8.07 in Top to Inlet Center, Cast Steel Body, Stainless Steel Trim
The BSA3T is a low maintenance flanged in-line Bellows Sealed Isolation Valve for use on steam, condensate, gas and other fluid applications where zero emissions from the stem seal are important. BSA3T is fitted with a throttling valve plug that allows close control when opening the valve. Locking screw and stroke limiter maintains correct flow rate once the flow rate is obtained.
Specifications
Item Features
- ANSI 300 body design condition
- Maximum design temperature: 797 deg F
- Maximum cold hydraulic test pressure: 1116 psig
- Spindle vertical flow installation
- 4.7 Cv
- Stainless steel disc
