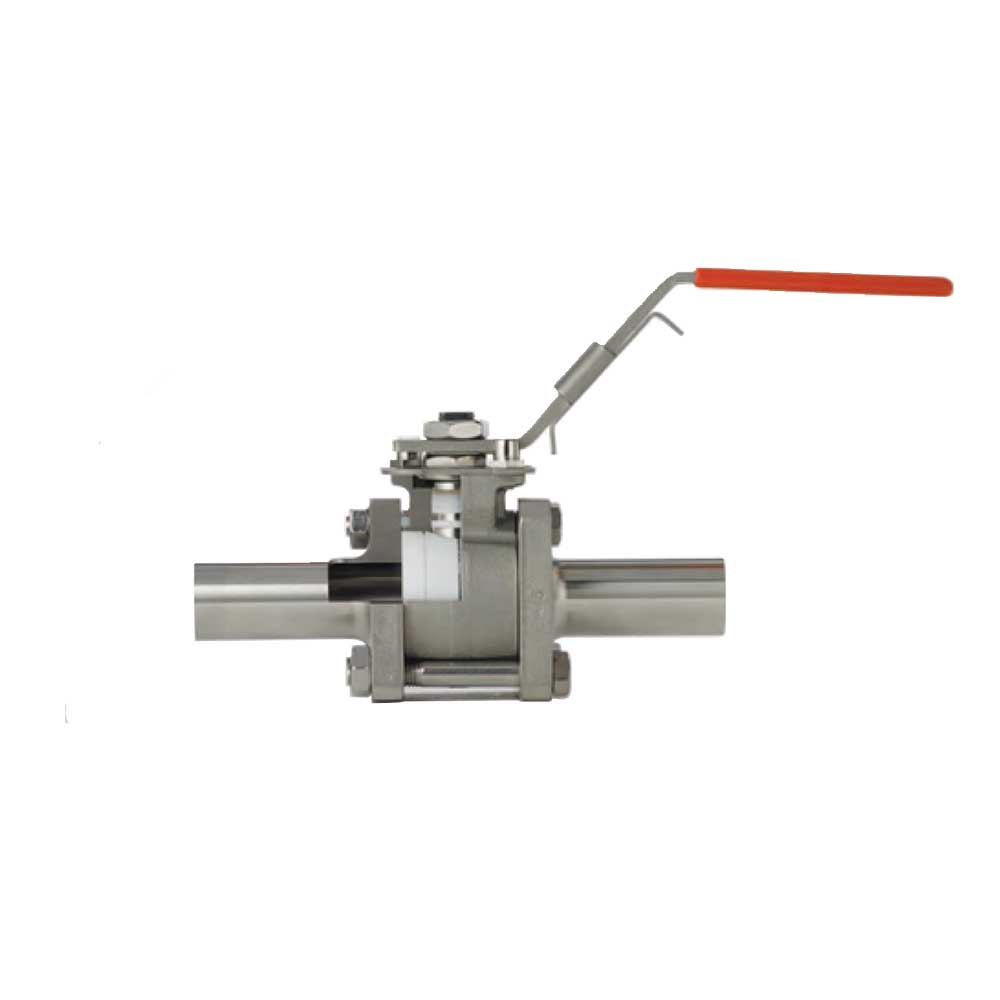

Spirax Sarco 1827614 M70Vi 3-Piece Automation Ball Valve, 1 in Nominal, IMP-Tube End Style, Forged 316L Stainless Steel Body, Lockable Handle Actuator
CBPN: 271792
MPN:1827614
Price:
$1011.92 / EA
DESCRIPTION
Spirax Sarco Automation Ball Valve, 3-Piece, Series: M70Vi, 1 in Nominal, IMP-Tube End Style, Full Port, Forged 316L Stainless Steel Body, Stainless Steel Ball, Stainless Steel/Virgin PTFE TFM 1600 Trim, Virgin PTFE Softgoods, Lockable Handle Actuator, -29 to 200 deg C, 15 Ra Electro-Polished
The M70i (1/2 to 2 in) and M80i (2-1/2 to 4 in) are 316L stainless steel Ball Valves that have been designed in accordance with ASME BPE for pharmaceutical, bio-processing and other high purity industries, where bacteria and media deposits can put product quality at risk.
Spirax Sarco 1827614 M70Vi 3-Piece Automation Ball Valve, 1 in Nominal, IMP-Tube End Style, Forged 316L Stainless Steel Body, Lockable Handle Actuator
CBPN: 271792
MPN:1827614
Price:
$1011.92 / EA
DESCRIPTION
Spirax Sarco Automation Ball Valve, 3-Piece, Series: M70Vi, 1 in Nominal, IMP-Tube End Style, Full Port, Forged 316L Stainless Steel Body, Stainless Steel Ball, Stainless Steel/Virgin PTFE TFM 1600 Trim, Virgin PTFE Softgoods, Lockable Handle Actuator, -29 to 200 deg C, 15 Ra Electro-Polished
The M70i (1/2 to 2 in) and M80i (2-1/2 to 4 in) are 316L stainless steel Ball Valves that have been designed in accordance with ASME BPE for pharmaceutical, bio-processing and other high purity industries, where bacteria and media deposits can put product quality at risk.
Specifications
Brand: Spirax Sarco
Weight: 3.5 lbs
Nominal Size: 1 in
End Style: IMP-Tube
Body Material: Forged 316L Stainless Steel
Actuator Type: Lockable Handle
Ball Material: Stainless Steel
Finish: 15 Ra Electro-Polished
Manufacturer Name: Spirax-Sarco Inc
Port Type: Full
Series: M70Vi
Softgoods Material: Virgin PTFE
Temperature Rating: -29 to 200 deg C
Trim Material: Stainless Steel/Virgin PTFE TFM 1600
Type: 3-Piece
Application: Sanitary, Bioprocessing, Pharmaceutical, Semi-Conductor, Food and Dairy, Brewing and Beverages, Cosmetics, Pure Steam, Clean Steam, CIP/SIP, Clean Gases, Process Media, High Purity Water Applications
Standards and Approvals: ADI-Free Certified | AISI 316/316L | ASME BPE SF1 | ASTM A182 Grade F316L | EC 1935:2004 | EN 10204 3.1 | European Pressure Equipment Directive | FDA CFR Title 21. Paragraph 177, Section 1550 | TSE/BSE Standard | USP Class VI
Item Features
- True port design - the internal diameter of the end connections and ball precisely match that of the connecting tubing to guarantee drainability
- Forged material M70i is manufactured from high integrity ASTM A182 grade F316L
- Low ferrite - body and end connections have 3 to 5% ferrite content to help prevent rouge
- Designed with orbital welding in mind - extended tube weld end connections means that automatic orbital welding can be performed without valve disassembly
- Designed for automation ISO 5211 mounting pad as standard enabling simple actuator mounting
- Lockable handle - a spring loaded lockable handle allows the valve to be locked in the chosen position - ensuring system integrity
- Virgin PTFE seal/gasket
- Virgin PTFE TFM 1600 seat and stainless steel stem
