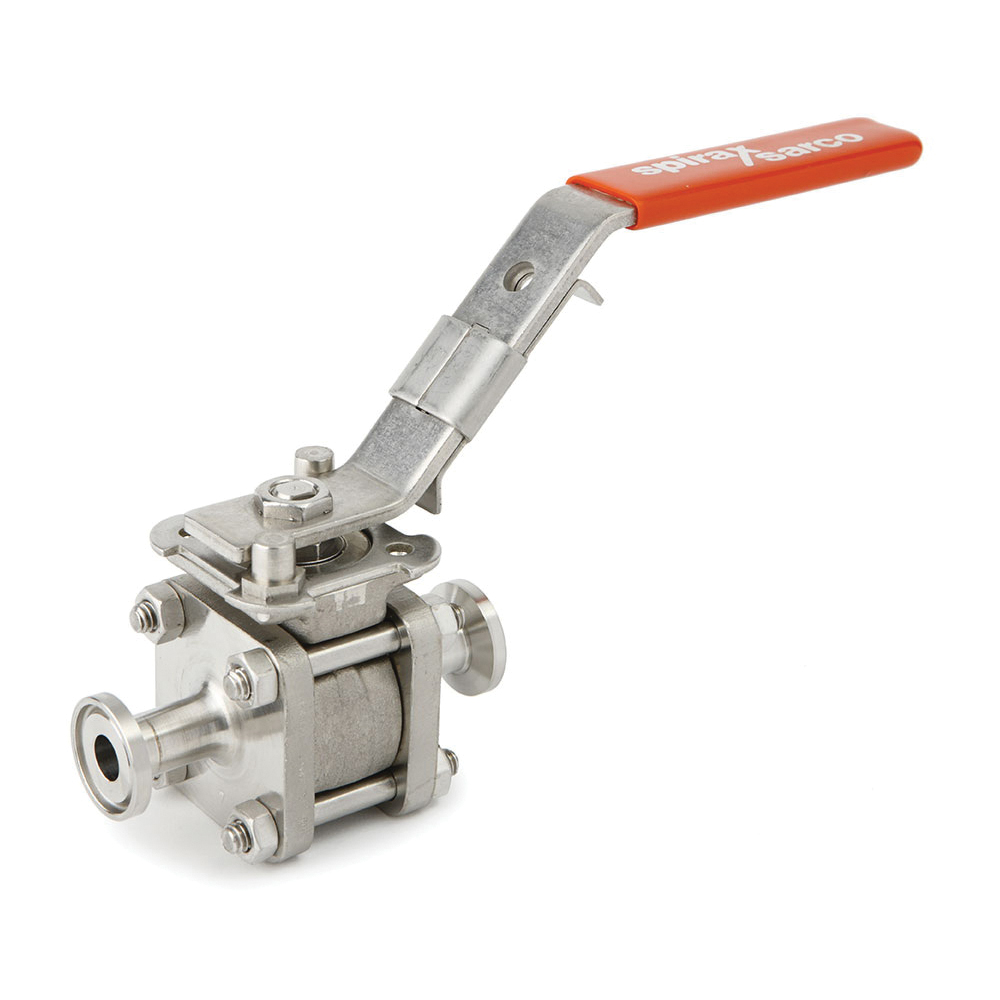

Spirax Sarco 1826114 M80Vi 3-Piece Automation Ball Valve, 2-1/2 in Nominal, Sanitary Clamp End Style, 720 psi Pressure, Cast 316L Stainless Steel Body, Lockable Handle Actuator
CBPN: 271782
MPN:1826114
Price:
$3682.77 / EA
DESCRIPTION
Spirax Sarco Automation Ball Valve, 3-Piece, Series: M80Vi, 2-1/2 in Nominal, Sanitary Clamp End Style, 720 psi Pressure, Full Port, Cast 316L Stainless Steel Body, Stainless Steel Ball, Stainless Steel/Virgin PTFE TFM 1600 Trim, FKM/Virgin PTFE Softgoods, Lockable Handle Actuator, -20 to 180 deg C, 15 Ra Electro-Polished
The M70i (1/2 to 2 in) and M80i (2-1/2 to 4 in) are 316L stainless steel Ball Valves that have been designed in accordance with ASME BPE for pharmaceutical, bio-processing and other high purity industries, where bacteria and media deposits can put product quality at risk.
Spirax Sarco 1826114 M80Vi 3-Piece Automation Ball Valve, 2-1/2 in Nominal, Sanitary Clamp End Style, 720 psi Pressure, Cast 316L Stainless Steel Body, Lockable Handle Actuator
CBPN: 271782
MPN:1826114
Price:
$3682.77 / EA
DESCRIPTION
Spirax Sarco Automation Ball Valve, 3-Piece, Series: M80Vi, 2-1/2 in Nominal, Sanitary Clamp End Style, 720 psi Pressure, Full Port, Cast 316L Stainless Steel Body, Stainless Steel Ball, Stainless Steel/Virgin PTFE TFM 1600 Trim, FKM/Virgin PTFE Softgoods, Lockable Handle Actuator, -20 to 180 deg C, 15 Ra Electro-Polished
The M70i (1/2 to 2 in) and M80i (2-1/2 to 4 in) are 316L stainless steel Ball Valves that have been designed in accordance with ASME BPE for pharmaceutical, bio-processing and other high purity industries, where bacteria and media deposits can put product quality at risk.
Specifications
Brand: Spirax Sarco
Weight: 19.8 lbs
Nominal Size: 2-1/2 in
End Style: Sanitary Clamp
Pressure Rating: 720 psi
Body Material: Cast 316L Stainless Steel
Actuator Type: Lockable Handle
Ball Material: Stainless Steel
Finish: 15 Ra Electro-Polished
Manufacturer Name: Spirax-Sarco Inc
Port Type: Full
Series: M80Vi
Softgoods Material: FKM/Virgin PTFE
Temperature Rating: -20 to 180 deg C
Trim Material: Stainless Steel/Virgin PTFE TFM 1600
Type: 3-Piece
Application: Sanitary, Bioprocessing, Pharmaceutical, Semi-Conductor, Food and Dairy, Brewing and Beverages, Cosmetics, Pure Steam, Clean Steam, CIP/SIP, Clean Gases, Process Media, High Purity Water Applications
Standards and Approvals: AISI 316/316L | ASME BPE SF4 | ASTM A351 Grade CF3M | EN 10204 3.1 | European Pressure Equipment Directive | FDA/USP Compliance
Item Features
- True port design - the internal diameter of the end connections and ball precisely match that of the connecting tubing to guarantee drainability
- Low ferrite - the M80i has <3% ferrite content on all wetted parts helping to prevent rouge
- Designed with orbital welding in mind ASME BPE compliant extended tube weld end connections means that automatic orbital welding can be performed without valve disassembly and low Sulphur (0.005 to 0.017%) content helps a consistent and fully penetrated weld
- Designed for automation ISO 5211 mounting pad as standard enabling simple actuator mounting
- Lockable handle - a lockable handle allows the valve to be locked in the open or closed position - ensuring system integrity
- Virgin PTFE seal/washer, FKM O-ring
- Virgin PTFE TFM 1600 seat and stainless steel stem
