Spirax Sarco 1802760

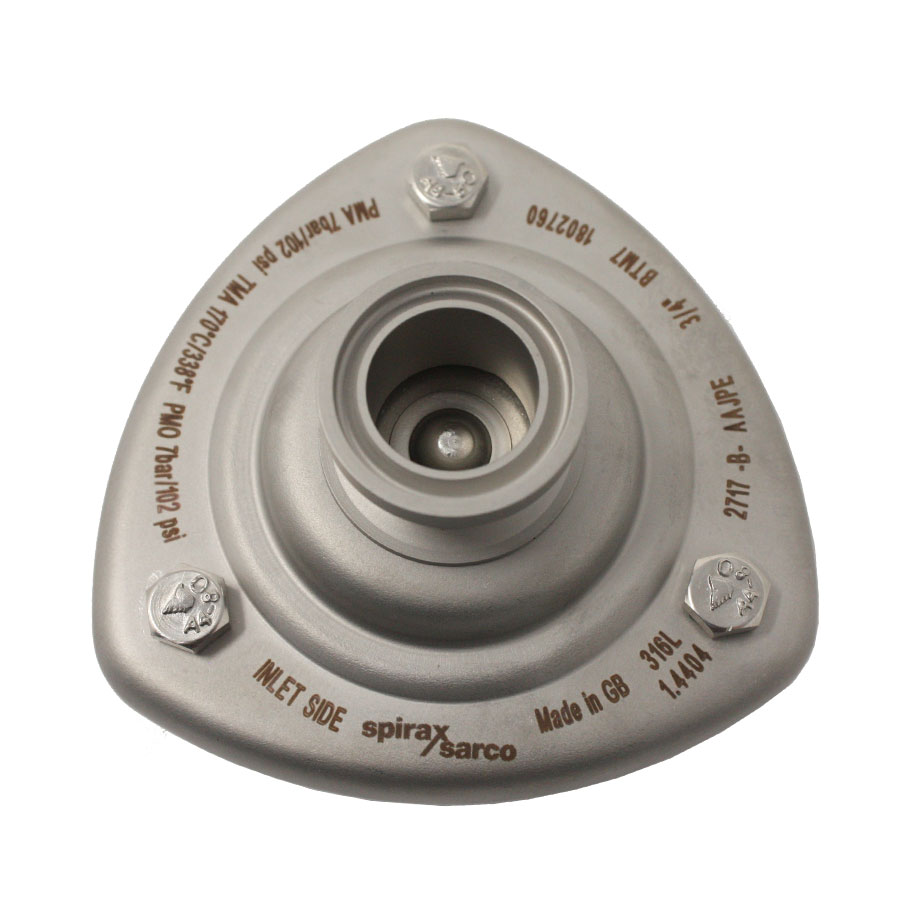

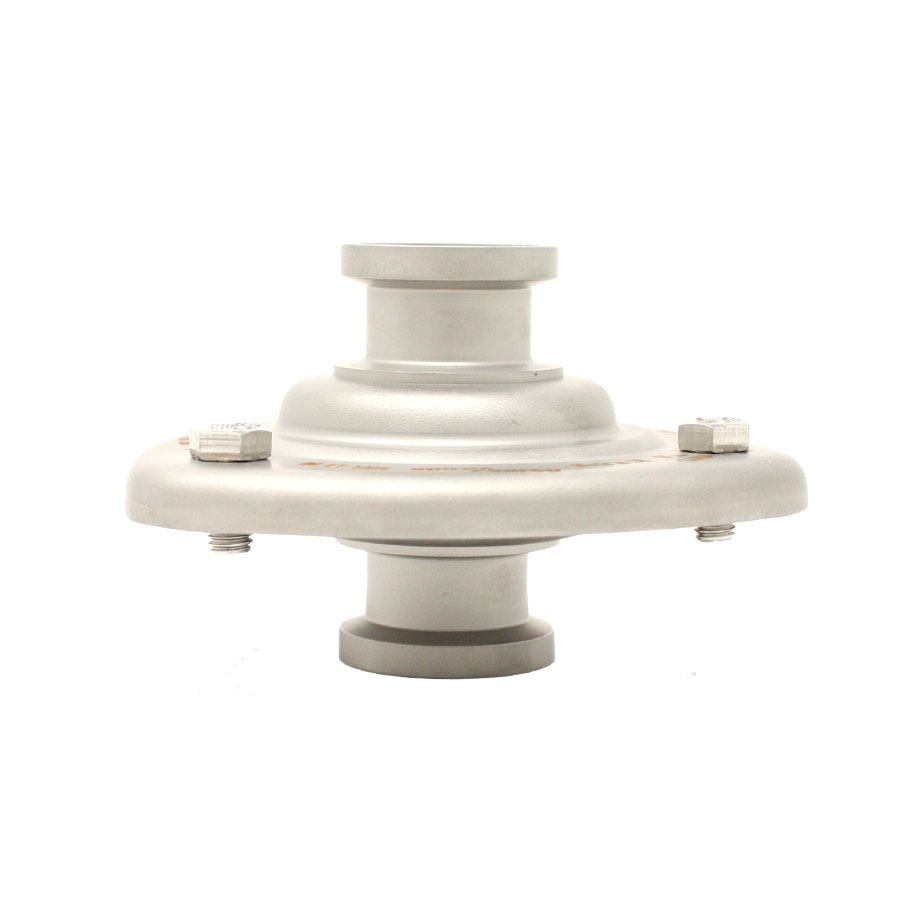

Spirax Sarco 1802760, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel

CBPN:19001

MPN:1802760

Price:
$929.11 / EA

DESCRIPTION

Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 1.9 in H

The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.

Spirax Sarco 1802760, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel

CBPN:19001

MPN:1802760

Price:
$929.11 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 1.9 in H

The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.

Specifications

BrandSpirax Sarco
Material316L Stainless Steel
SeriesBTM7
Domestic/ImportDomestic
End StyleSanitary Clamp
Nominal Size3/4 in
Pressure Rating102 psig Operating
Temperature Rating32 to 338 deg F Operating
Dimensions1.9 in H
Weight0.5 lbs
Standards ApprovalsASME BPE,EN 10204 3.1,FDA approved,USP Class VI and FDA CFR title 21 Paragraph 177 Section 2600

Item Features

  • Maximum allowable pressure: 102 psig at 338 deg F
  • Maximum allowable temperature: 338 deg F at 102 psig
  • Minimum allowable temperature: 14 deg F
  • Designed for a maximum cold hydraulic test pressure of 155 psig
  • Sanitary clamp compatible hygienic connection
  • Vertical installation
