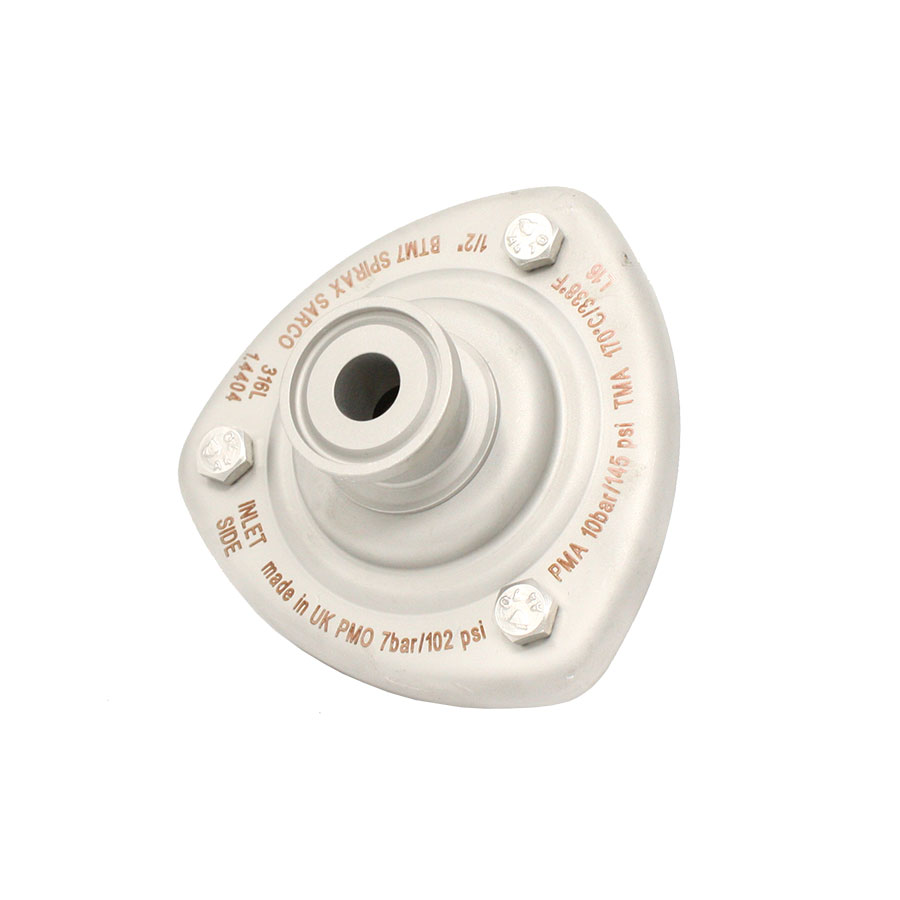

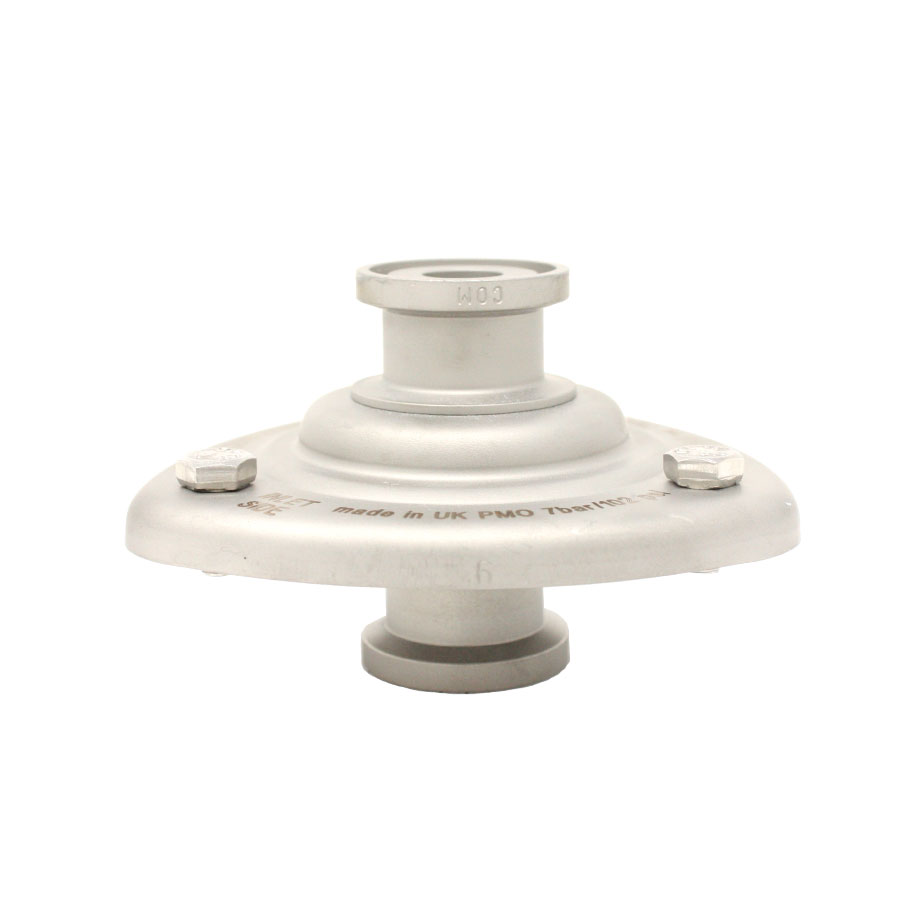

Spirax Sarco BTM7 Balanced Pressure Thermostatic Steam Trap

Spirax Sarco 1802660, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel

CBPN: 19000

MPN:1802660

Price:
$1106.56 / EA

DESCRIPTION

Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 1.9 in H

The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.

Spirax Sarco 1802660, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel

CBPN: 19000

MPN:1802660

Price:
$1106.56 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 1.9 in H

The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.

Specifications

Brand: Spirax Sarco
Weight: 0.5 lbs
Nominal Size: 1/2 in
End Style: Sanitary Clamp
Max Operating Pressure: 102 psig
Max Allowable Pressure: 102 psig/up to 338 deg F
Max Allowable Temperature: 338 deg F/up to 102 psig
Material: Stainless Steel
Dimensions: 1.9 in H
Manufacturer Name: Spirax-Sarco Inc
Series: BTM7
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME BPE | EN 10204 3.1 | FDA approved | USP Class VI and FDA CFR title 21 Paragraph 177 Section 2600

Item Features

  • Maximum allowable pressure: 102 psig at 338 deg F
  • Maximum allowable temperature: 338 deg F at 102 psig
  • Minimum allowable temperature: 14 deg F
  • Designed for a maximum cold hydraulic test pressure of 155 psig
  • Sanitary clamp compatible hygienic connection
  • Vertical installation

Resources

PDF icon
Specification Sheet

Spirax Sarco 1802660 Spare Parts

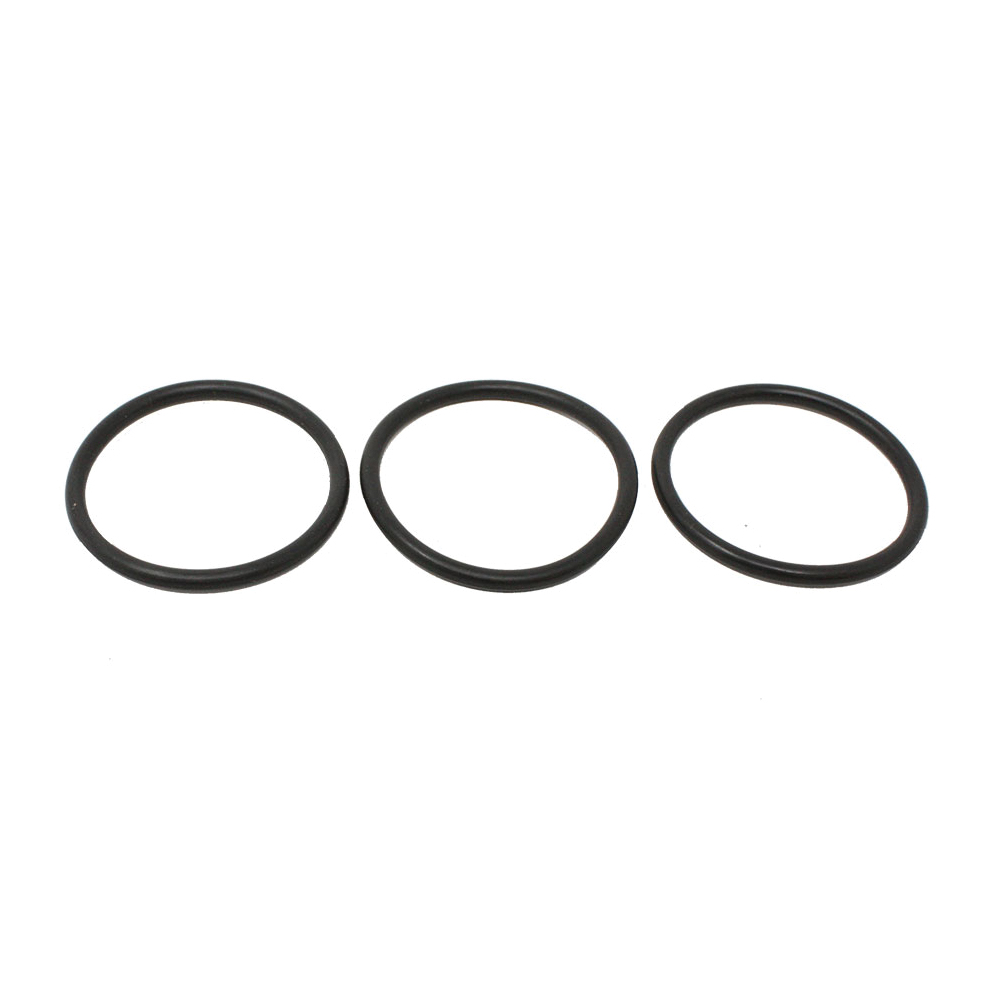

Spirax Sarco BTM7 O-Ring Kit

Spirax Sarco 1801583 O-Ring Kit, For Use With: Model BTM7 Thermostatic Clean Steam Trap and AVM7 Thermostatic Air Vent, FKM

CBPN:

12823

MPN:

1801583

In Stock: 426
Price:
$72.54 / EA
