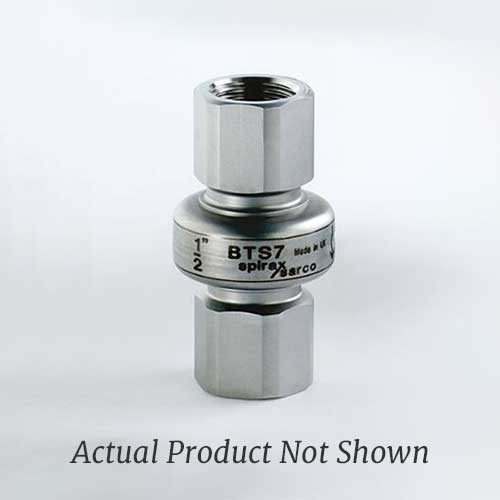

Spirax Sarco 1801390, BTS7 Balanced Pressure Thermostatic Clean Steam Trap, 1 in, FNPT, 170 deg C Operating, 7 barg Operating, 316L Stainless Steel
CBPN: 122865
MPN:1801390
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1 in Nominal, NPT, 95 mm Length, 7 barg Operating, 316L Stainless Steel, 170 deg C Operating
The Spirax Sarco® BTS7 is a sealed thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.
Spirax Sarco 1801390, BTS7 Balanced Pressure Thermostatic Clean Steam Trap, 1 in, FNPT, 170 deg C Operating, 7 barg Operating, 316L Stainless Steel
CBPN: 122865
MPN:1801390
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1 in Nominal, NPT, 95 mm Length, 7 barg Operating, 316L Stainless Steel, 170 deg C Operating
The Spirax Sarco® BTS7 is a sealed thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.
Specifications
Item Features
- Fixed bleed to ensure fail open operation
- Special connections to suit most piping systems
- The BTS7 has been designed and built in general accordance with ASME BPE
- It also complies with the requirements of the European Pressure Equipment Directive 97/23/EC
- All wetted parts of this trap are manufactured from FDA approved materials
- 7 bar g at 170 deg C Maximum allowable pressure
- 170 deg C at 7 bar g Maximum allowable temperature
- -254 deg C Minimum allowable temperature
- 7 bar g at 170 deg C Maximum operating pressure for saturated steam service
- 10.5 bar g Maximum cold hydraulic test pressure
- PN7 Body design condition
- Vertical piping configuration
