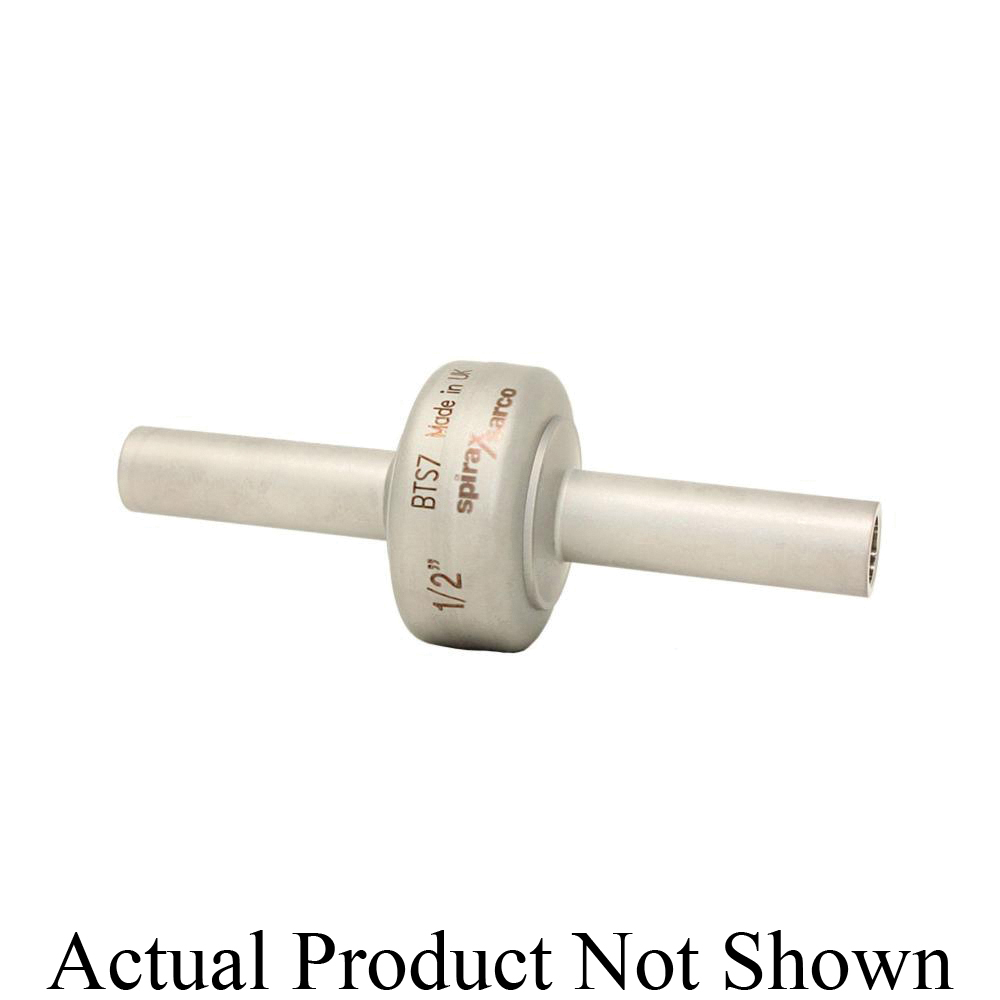

Spirax Sarco 1801291, BTS7 Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in, Tube, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel
CBPN: 68179
MPN:1801291
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in Nominal, Tube, 102 psig Operating, 316L Stainless Steel, Machined, 32 to 338 deg F Operating, 4.1 in H
The Spirax Sarco BTS7 and BTS7.1 are sealed thermostatic steam traps designed to remove condensate from clean steam systems with minimal back up. Applications include sterile steam barriers, process vessels and CIP / SIP systems. Manufactured in 316L stainless steel with minimal crevices, it is self-draining and operates close to steam temperature. When supplied, they are individually packaged with protective end caps and sealed in a polythene bag.
Spirax Sarco 1801291, BTS7 Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in, Tube, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel
CBPN: 68179
MPN:1801291
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 3/4 in Nominal, Tube, 102 psig Operating, 316L Stainless Steel, Machined, 32 to 338 deg F Operating, 4.1 in H
The Spirax Sarco BTS7 and BTS7.1 are sealed thermostatic steam traps designed to remove condensate from clean steam systems with minimal back up. Applications include sterile steam barriers, process vessels and CIP / SIP systems. Manufactured in 316L stainless steel with minimal crevices, it is self-draining and operates close to steam temperature. When supplied, they are individually packaged with protective end caps and sealed in a polythene bag.
Specifications
Item Features
- PN7 body design conditions
- Maximum allowable pressure: 102 psig at 338 deg F
- Maximum allowable temperature: 338 deg F at 102 psig
- Minimum allowable temperature: 14 deg F
- Designed for a maximum cold hydraulic test pressure of 152 psig
- Vertical installation
