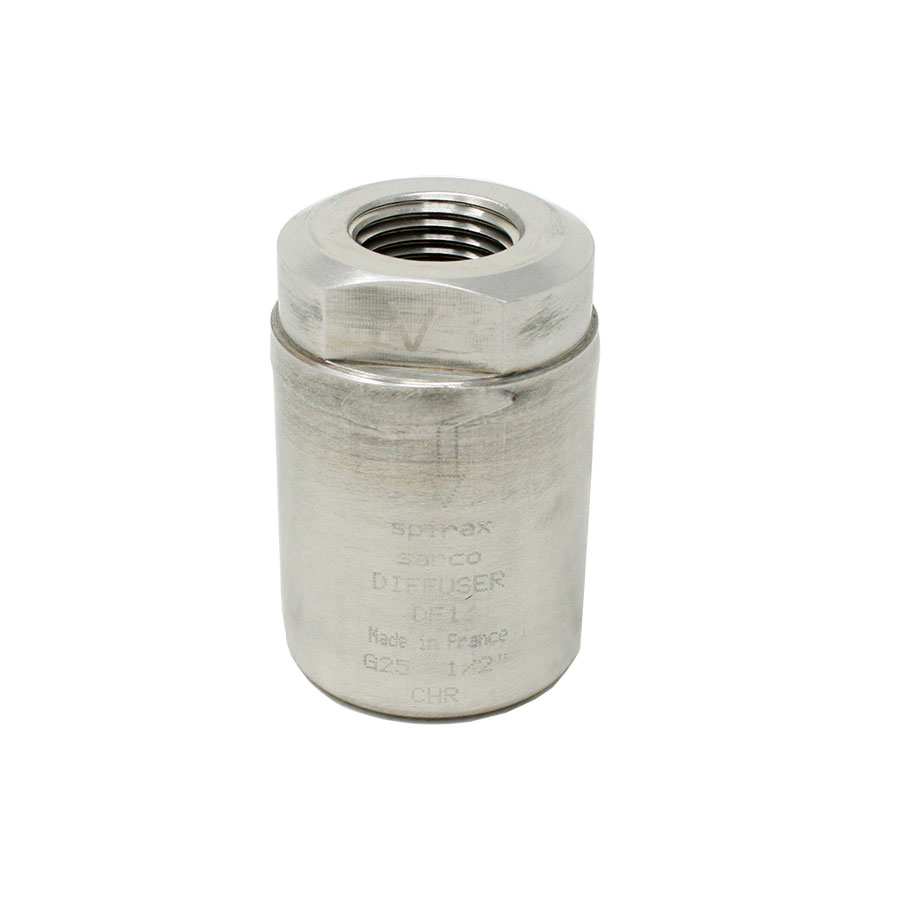

Spirax Sarco 1550490, DF1 Trap Diffuser, 3/4 in NPT, 1-1/2 in Dia x 2.3 in L, Stainless Steel
CBPN: 26361
MPN:1550490
Price:
$419.51 / EA
DESCRIPTION
Spirax Sarco Trap Diffuser, 3/4 in NPT Nominal, 1-1/2 in Dia, 2.3 in Length, Stainless Steel
The DF Series Trap Diffuser is a compact unit designed to be fitted to the outlet of a steam or liquid drain trap. The DF Diffuser reduces noise and erosion by cushioning high velocity discharge.
Spirax Sarco 1550490, DF1 Trap Diffuser, 3/4 in NPT, 1-1/2 in Dia x 2.3 in L, Stainless Steel
CBPN: 26361
MPN:1550490
Price:
$419.51 / EA
DESCRIPTION
Spirax Sarco Trap Diffuser, 3/4 in NPT Nominal, 1-1/2 in Dia, 2.3 in Length, Stainless Steel
The DF Series Trap Diffuser is a compact unit designed to be fitted to the outlet of a steam or liquid drain trap. The DF Diffuser reduces noise and erosion by cushioning high velocity discharge.
Specifications
Brand: Spirax Sarco
Weight: 0.4 lbs
Nominal Size: 3/4 in NPT
Diameter: 1-1/2 in
Length: 2.3 in
Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Series: DF1
Application: The DF series diffuser can be fitted to any trap where conditions promote blast discharge similar to that associated with balanced pressure, inverted bucket or thermo Dynamic® traps
Standards and Approvals: ASTM A351 CR CF8 Body
Item Features
- Create a safe and silent environment when discharging to atmosphere, essential for Health and Safety compliance
- Designed to be fitted to the outlet of a steam trap, air trap or valve discharging to atmosphere
- Reduces the problem of noise
- Reduce erosion by cushioning high velocity discharge
- Meet factory noise level legislation
- The trap diffuser shall be all stainless steel with a knitted and compacted wire mesh diffusing element
- The DF Series Diffuser should be fitted on the outlet side of a steam trap or liquid drainer with a suitable fitting to ensure that the discharge of condensate is towards the ground or some safe enclosure
- 915 psig Maximum operating pressure
- 421 deg F Maximum operating temperature
- This product fully complies with the requirements of the European Pressure Equipment Directive 97/23 /EC
- Suitable for use with traps rated up to PN63
- Stainless steel internal tube
