Spirax Sarco DF1 Trap Diffuser

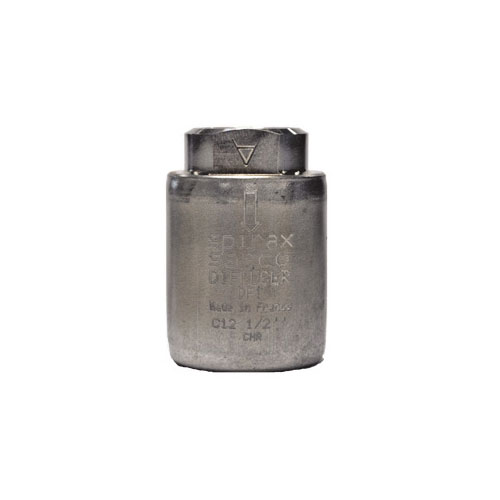

Spirax Sarco 1550390, DF1 Trap Diffuser, 1/2 in NPT, 1-1/2 in Dia x 2.3 in L, Stainless Steel

CBPN:22499

MPN:1550390

Price:
$307.58 / EA

DESCRIPTION

Spirax Sarco Trap Diffuser, 1/2 in NPT Nominal, 1-1/2 in Dia, 2.3 in Length, Stainless Steel

The DF Series Trap Diffuser is a compact unit designed to be fitted to the outlet of a steam or liquid drain trap. The DF Diffuser reduces noise and erosion by cushioning high velocity discharge.

Spirax Sarco 1550390, DF1 Trap Diffuser, 1/2 in NPT, 1-1/2 in Dia x 2.3 in L, Stainless Steel

CBPN:22499

MPN:1550390

Price:
$307.58 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Trap Diffuser, 1/2 in NPT Nominal, 1-1/2 in Dia, 2.3 in Length, Stainless Steel

The DF Series Trap Diffuser is a compact unit designed to be fitted to the outlet of a steam or liquid drain trap. The DF Diffuser reduces noise and erosion by cushioning high velocity discharge.

Specifications

BrandSpirax Sarco
Weight0.4 lbs
Nominal Size1/2 in NPT
Diameter1-1/2 in
Length2.3 in
MaterialStainless Steel
Manufacturer NameSpirax-Sarco Inc
SeriesDF1
ApplicationThe DF series diffuser can be fitted to any trap where conditions promote blast discharge similar to that associated with balanced pressure, inverted bucket or thermo Dynamic® traps
Standards and ApprovalsASTM A351 CR CF8 Body

Item Features

  • Create a safe and silent environment when discharging to atmosphere, essential for Health and Safety compliance
  • Designed to be fitted to the outlet of a steam trap, air trap or valve discharging to atmosphere
  • Reduces the problem of noise
  • Reduce erosion by cushioning high velocity discharge
  • Meet factory noise level legislation

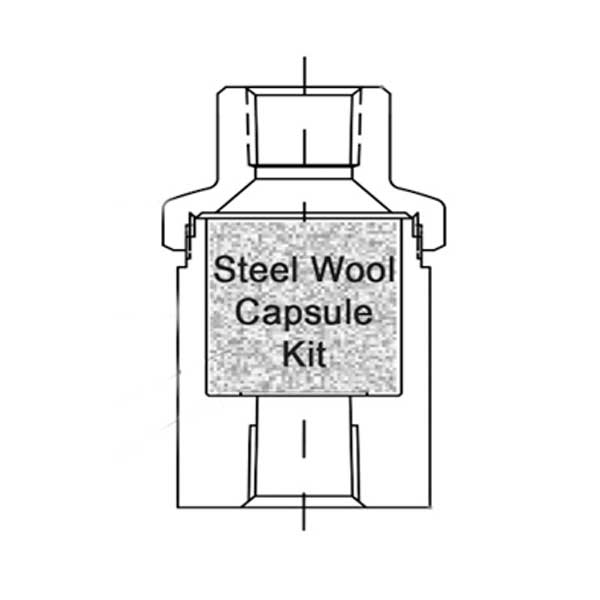

  • The trap diffuser shall be all stainless steel with a knitted and compacted wire mesh diffusing element
  • The DF Series Diffuser should be fitted on the outlet side of a steam trap or liquid drainer with a suitable fitting to ensure that the discharge of condensate is towards the ground or some safe enclosure
  • 915 psig Maximum operating pressure
  • 421 deg F Maximum operating temperature
  • This product fully complies with the requirements of the European Pressure Equipment Directive 97/23 /EC
  • Suitable for use with traps rated up to PN63
  • Stainless steel internal tube
