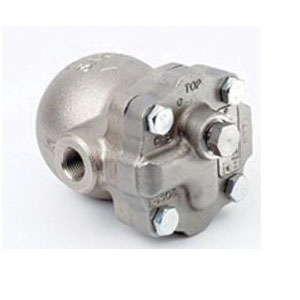

Spirax Sarco 1453851, FTS14-4.5 Ball Float Steam Trap, 3/4 in, FNPT, 225 deg C, 65 psi, Austenitic Stainless Steel
CBPN: 83453
MPN:1453851
DESCRIPTION
Spirax Sarco Ball Float Steam Trap, 3/4 in Nominal, NPT, 162 mm Length, 65 psi, Austenitic Stainless Steel, 225 deg C, 135 mm W x 180 mm H
The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential. As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.
Spirax Sarco 1453851, FTS14-4.5 Ball Float Steam Trap, 3/4 in, FNPT, 225 deg C, 65 psi, Austenitic Stainless Steel
CBPN: 83453
MPN:1453851
DESCRIPTION
Spirax Sarco Ball Float Steam Trap, 3/4 in Nominal, NPT, 162 mm Length, 65 psi, Austenitic Stainless Steel, 225 deg C, 135 mm W x 180 mm H
The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential. As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.
Specifications
Item Features
- This product fully complies with the requirements of the European pressure equipment directive 97/23/EC
- 25 bar g at 50 deg C Maximum allowable pressure
- 300 deg C Maximum allowable temperature
- 4.5 bar Maximum differential pressure
- PN25 body design condition
- -20 deg C Minimum allowable temperature
- 225 deg C at 19 bar g Maximum operating temperature
- 37.5 bar g Maximum cold hydraulic test pressure
- Note: Tri-clamp compatible end connections used for hygienic/sanitary applications
- Inline horizontal piping configuration
