Spirax Sarco 1232270, AVM7 Balanced Pressure Thermostatic Air Vent, 1 in Butt Weld Connection, 102 psig, 316L Stainless Steel
CBPN: 216144
MPN:1232270
Price:
$1415.05 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 1 in Tube Butt Weld, 102 psig, 316L Stainless Steel, 5 in H

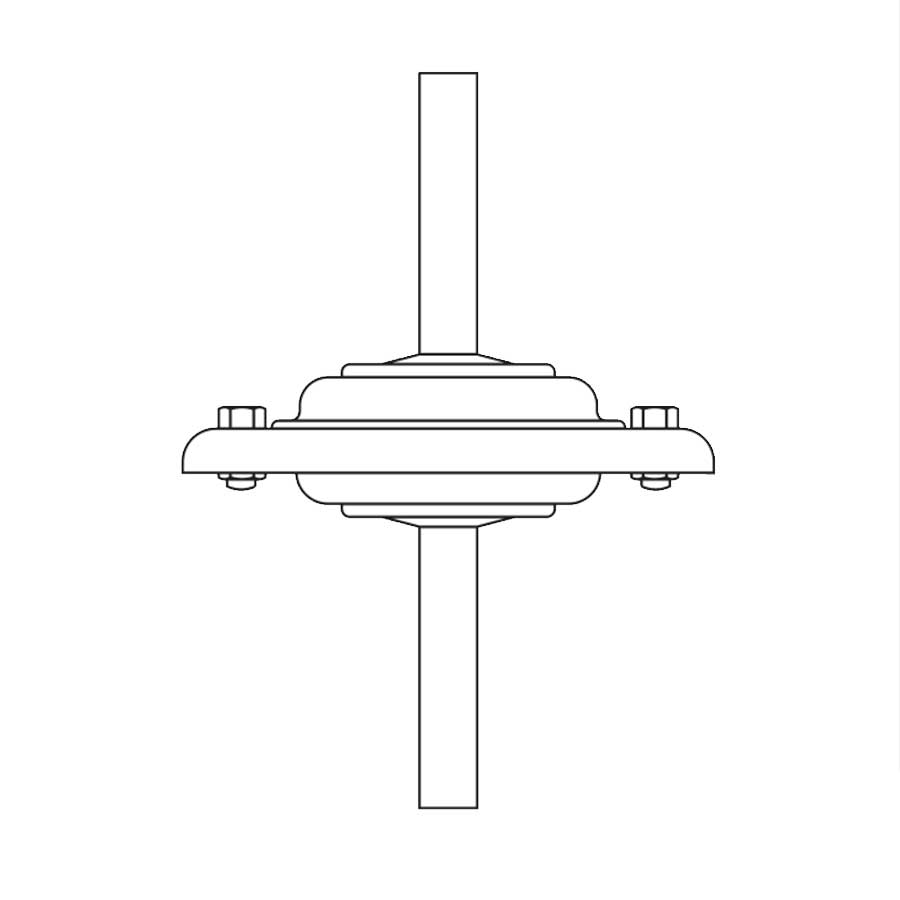

The AVM7 (maintainable) is a vertical body thermostatic air vent, with all AISI 316L construction designed for use in clean steam systems. Normal operation is close to saturated steam temperature.
Spirax Sarco 1232270, AVM7 Balanced Pressure Thermostatic Air Vent, 1 in Butt Weld Connection, 102 psig, 316L Stainless Steel
CBPN: 216144
MPN:1232270
Price:
$1415.05 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 1 in Tube Butt Weld, 102 psig, 316L Stainless Steel, 5 in H
The AVM7 (maintainable) is a vertical body thermostatic air vent, with all AISI 316L construction designed for use in clean steam systems. Normal operation is close to saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 1.7 lbs
Connection Type: Butt Weld
Pressure Rating: 102 psig
Material: 316L Stainless Steel
Dimensions: 5 in H
Manufacturer Name: Spirax-Sarco Inc
Series: AVM7
Type: Balanced Pressure
Application: Fermenter sterilization, Steam barriers (Block and bleed systems), Sterilizer drainage and air venting, Cip/Sip system condensate drainage and sterilization of process vessels and Pipes
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: AISI 316L (1.4404) Body | ASME BPE | EN 10204 3.1 | FDA 21CFR 177.2600 | ISO 6552 | USP Class VI
Item Features
- For clean steam
- Saturated steam temperature
- Maximum allowable pressure: 145 psig at 0 to 302 deg F
- Maximum allowable temperature: 338 deg F at 0 to 132 psig
- Maximum cold hydraulic test pressure: 155 psig
- Complies with the requirements of the European Pressure Equipment Directive
- FKM o-ring
- Vertical installation
