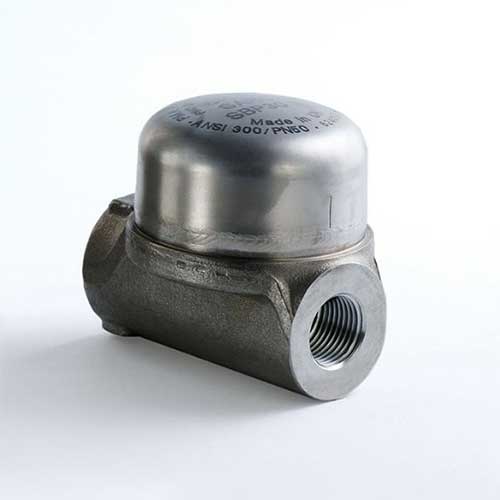

Spirax Sarco 1201090, SBP30LC Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 500 deg F, 435 psi, Stainless Steel
CBPN: 110317
MPN:1201090
Price:
$661.57 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 3/4 in Nominal, NPT, 3.1 in Length, 435 psi, Stainless Steel, 500 deg F
The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature. The element is resistant to water hammer, and up to 90 deg F (50 deg C) superheat over saturated steam temperature can be tolerated by this trap.
Spirax Sarco 1201090, SBP30LC Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 500 deg F, 435 psi, Stainless Steel
CBPN: 110317
MPN:1201090
Price:
$661.57 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 3/4 in Nominal, NPT, 3.1 in Length, 435 psi, Stainless Steel, 500 deg F
The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature. The element is resistant to water hammer, and up to 90 deg F (50 deg C) superheat over saturated steam temperature can be tolerated by this trap.
Specifications
Brand: Spirax Sarco
Weight: 2.2 lbs
Nominal Size: 3/4 in
End Style: FNPT
Max Operating Pressure: 435 psig
Max Allowable Pressure: 720 psig/up to 100 deg F
Max Allowable Temperature: 752 deg F/up to 400 psig
Material: Stainless Steel
Length: 3.1 in
Manufacturer Name: Spirax-Sarco Inc
Series: SBP30LC
Type: Balanced Pressure
Standards and Approvals: ASTM A473 Grade 304 Body
Item Features
- Tamper proof body
- 545 deg F at operating pressures below 426 psig
- 500 deg F at 435 psig Maximum operating pressure
- 720 psig at 100deg F Maximum allowable pressure
- 400 psig at 752 deg F Maximum allowable pressure
- 752 deg F at 0 to 400 psig Maximum allowable temperature
