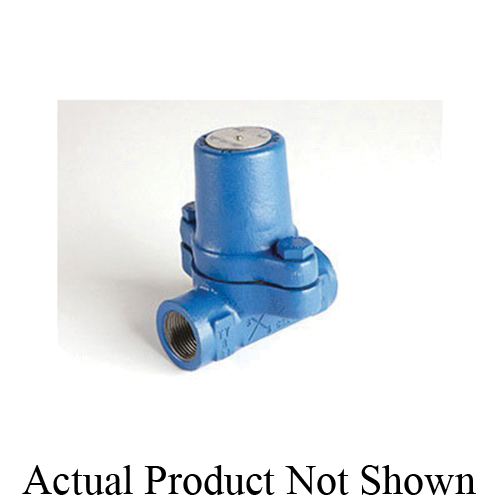

Spirax Sarco 0763051, SMC32 Steam Trap, 1 in, NPT, 662 deg F, 464 psig, Carbon Steel
CBPN: 239476
MPN:0763051
Price:
$701.61 / EA
DESCRIPTION
Spirax Sarco Steam Trap, 1 in Nominal, NPT, 464 psig, Carbon Steel, 662 deg F, 5.9 in W
The SMC32 and SMC32Y are carbon steel maintainable bimetallic steam traps with straight connections. The SMC32 has an integral flat strainer screen and the SM32Y an integral, cylindrical Y-type strainer. All pressure bearing components are produced by TUV approved suppliers in accordance with AD-Merkblatt WO/TRD 100.
Spirax Sarco 0763051, SMC32 Steam Trap, 1 in, NPT, 662 deg F, 464 psig, Carbon Steel
CBPN: 239476
MPN:0763051
Price:
$701.61 / EA
DESCRIPTION
Spirax Sarco Steam Trap, 1 in Nominal, NPT, 464 psig, Carbon Steel, 662 deg F, 5.9 in W
The SMC32 and SMC32Y are carbon steel maintainable bimetallic steam traps with straight connections. The SMC32 has an integral flat strainer screen and the SM32Y an integral, cylindrical Y-type strainer. All pressure bearing components are produced by TUV approved suppliers in accordance with AD-Merkblatt WO/TRD 100.
Specifications
Brand: Spirax Sarco
Weight: 4 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Carbon Steel
Max Operating Pressure: 32 barg
Max Allowable Pressure: 50 barg/up to 50 deg C
Max Allowable Temperature: 400 deg C/up to 35 barg
Dimensions: 5.9 in W
Manufacturer Name: Spirax-Sarco Inc
Series: SMC32
Application: Kitchen and laundry equipment, Steam tracers, Hospital equipment, Steam coils, Steam radiators and Steam main drip stations
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: DIN 17243 C22.8/ASTM A105N | European Pressure Equipment Directive 97/23/EC
Item Features
- PN40 body design conditions
- Maximum allowable pressure: 725 psig
- Maximum allowable temperature: 752 deg F
- Stainless steel internals
- Designed for a maximum cold hydraulic test pressure of 1088 psig
- Horizontal or vertical installation
Resources
Spirax Sarco 0763051 Spare Parts
CBPN:
215120
MPN:
0051081
In Stock: 2
Price:
$101.0 / EA
CBPN:
173078
MPN:
0051082
In Stock: 50
Price:
$121.0 / EA
