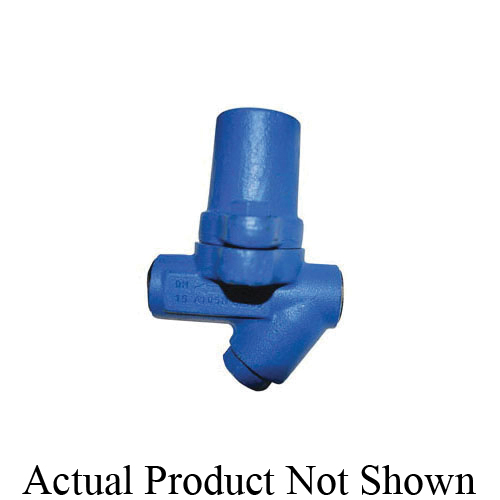

Spirax Sarco SMC32Y Bimetallic Steam Trap with Blowdown Valve

Spirax Sarco 0762961, SMC32Y Steam Trap With Strainer, 3/4 in, NPT, 662 deg F, 464 psig, Carbon Steel

CBPN: 92186

MPN:0762961

Price:
$818.09 / EA

DESCRIPTION

Spirax Sarco Steam Trap, 3/4 in Nominal, NPT, 464 psig, Carbon Steel, 662 deg F, 5.9 in W

The SMC32 and SMC32Y are carbon steel maintainable bimetallic steam traps with straight connections. The SMC32 has an integral flat strainer screen and the SM32Y an integral, cylindrical Y-type strainer. All pressure bearing components are produced by TUV approved suppliers in accordance with AD-Merkblatt WO/TRD 100.

Spirax Sarco 0762961, SMC32Y Steam Trap With Strainer, 3/4 in, NPT, 662 deg F, 464 psig, Carbon Steel

CBPN: 92186

MPN:0762961

Price:
$818.09 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Steam Trap, 3/4 in Nominal, NPT, 464 psig, Carbon Steel, 662 deg F, 5.9 in W

The SMC32 and SMC32Y are carbon steel maintainable bimetallic steam traps with straight connections. The SMC32 has an integral flat strainer screen and the SM32Y an integral, cylindrical Y-type strainer. All pressure bearing components are produced by TUV approved suppliers in accordance with AD-Merkblatt WO/TRD 100.

Specifications

Brand: Spirax Sarco
Weight: 4.2 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Carbon Steel
Max Operating Pressure: 32 barg
Max Allowable Pressure: 50 barg/up to 50 deg C
Max Allowable Temperature: 400 deg C/up to 35 barg
Dimensions: 5.9 in W
Manufacturer Name: Spirax-Sarco Inc
Series: SMC32Y
Application: Kitchen and laundry equipment, Steam tracers, Hospital equipment, Steam coils, Steam radiators and Steam main drip stations
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: DIN 17243 C22.8/ASTM A105N | European Pressure Equipment Directive 97/23/EC

Item Features

  • PN40 body design conditions
  • Maximum allowable pressure: 725 psig
  • Maximum allowable temperature: 752 deg F
  • Stainless steel internals
  • Designed for a maximum cold hydraulic test pressure of 1088 psig
  • Horizontal or vertical installation
