Spirax Sarco 0686691 Steam Trap

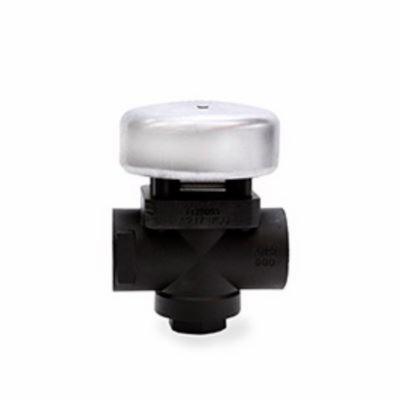

Spirax Sarco 0686691, TD62M Standard Capacity Thermo-Dynamic Steam Trap With Replaceable Seats, 3/4 in, NPT, 900 psig, Steel Alloy

CBPN:171095

MPN:0686691

Price:
$2788.24 / EA

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Standard Capacity, 3/4 in Nominal, NPT, 3.6 in Length, 900 psig, Steel Alloy, 3.6 in W

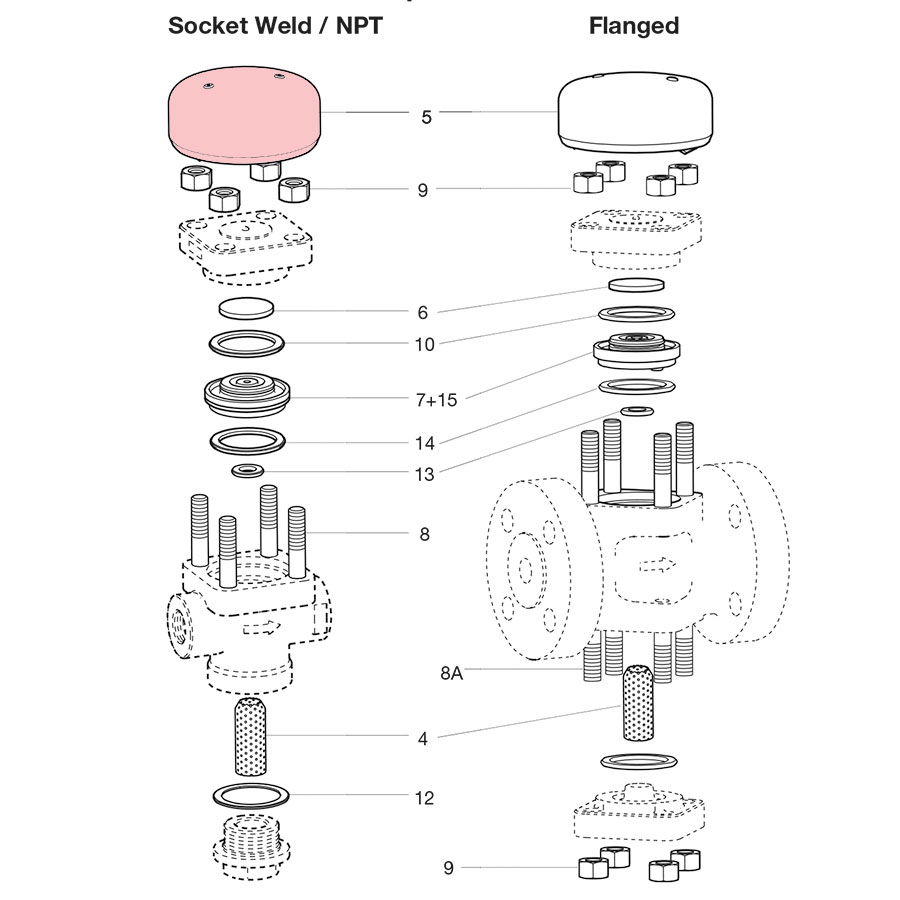

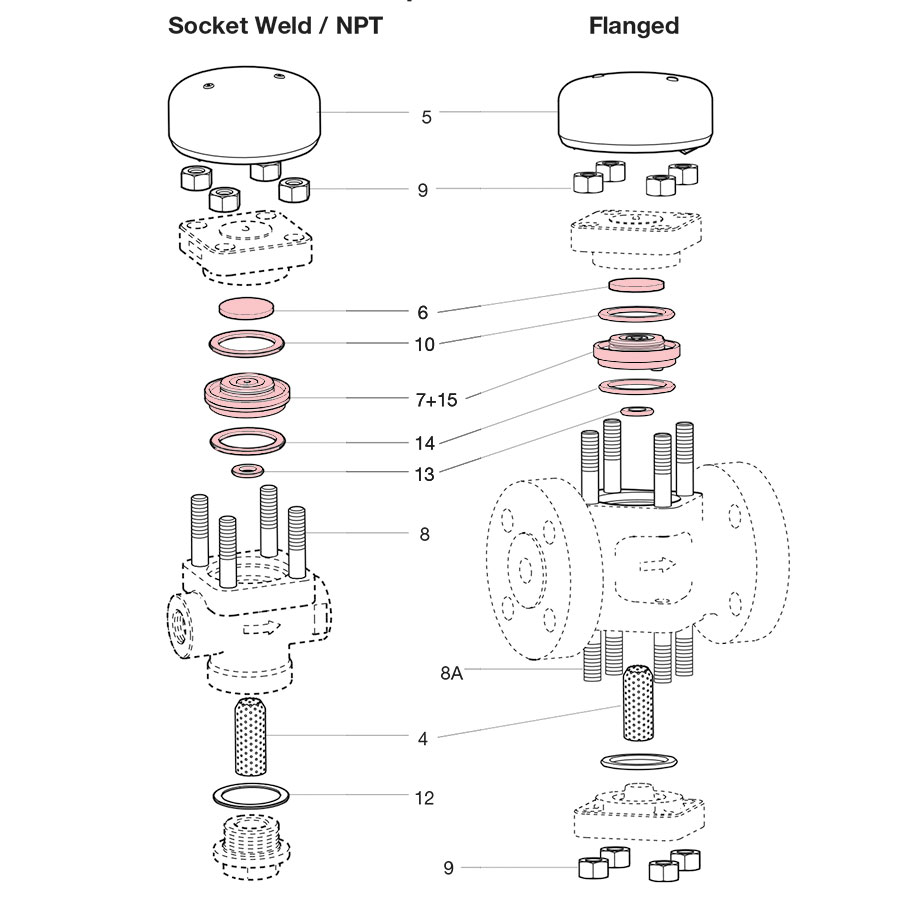

The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.

Spirax Sarco 0686691, TD62M Standard Capacity Thermo-Dynamic Steam Trap With Replaceable Seats, 3/4 in, NPT, 900 psig, Steel Alloy

CBPN:171095

MPN:0686691

Price:
$2788.24 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Standard Capacity, 3/4 in Nominal, NPT, 3.6 in Length, 900 psig, Steel Alloy, 3.6 in W

The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.

Specifications

BrandSpirax Sarco
Weight4.6lbs
End StyleFNPT
Length3.6 in
MaterialCarbon Steel
Nominal Size3/4 in
SeriesTD62M
TypeStandard Capacity
Dimensions3.6 in W
Max Operating Pressure900 psig
Max Allowable Pressure1500 psig
Max Allowable Temperature977 deg F
Manufacturer NameSpirax-Sarco Inc
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A217 Grade WC 6 Body

Item Features

  • Maximum allowable pressure: 1500 psig
  • Maximum allowable temperature: 977 deg F
  • Cold hydraulic test pressure: 2250 psig
  • 20 psig minimum pressure for satisfactory operation
  • Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
  • Horizontal installation
