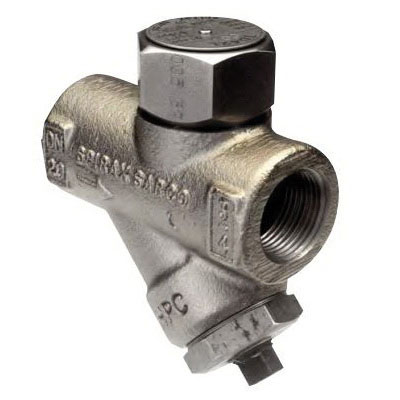

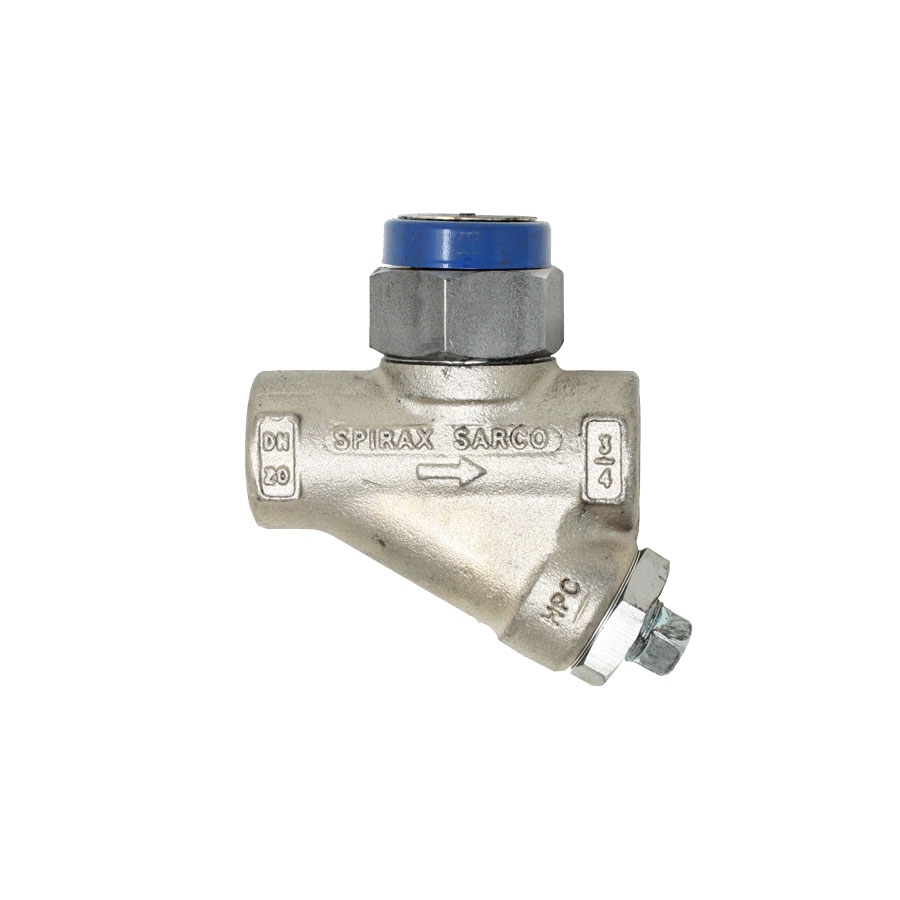

Spirax Sarco 0680862, TD42H High Capacity Thermo-Dynamic Steam Trap, 3/4 in, FNPT, 400 deg C, 42 bar, Stainless Steel
CBPN: 7455
MPN:0680862
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, High Capacity, 3/4 in Nominal, FNPT, 90 mm Length, 42 bar, Stainless Steel, Electroless Nickel Preparation, 400 deg C
The TD42L and TD42H are maintainable thermodynamic steam traps. The TD42L is specifically designed for relatively small condensate loads and therefore is ideal for mains drainage applications. For process type loads the TD42H is available. For those applications where the release of air is a concern, an anti-air-binding disc is available i.e. TD42LA and TD42HA. All external body surfaces have an electroless nickel preparation (ENP) which is both energy saving and oxidation resistant.
Spirax Sarco 0680862, TD42H High Capacity Thermo-Dynamic Steam Trap, 3/4 in, FNPT, 400 deg C, 42 bar, Stainless Steel
CBPN: 7455
MPN:0680862
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, High Capacity, 3/4 in Nominal, FNPT, 90 mm Length, 42 bar, Stainless Steel, Electroless Nickel Preparation, 400 deg C
The TD42L and TD42H are maintainable thermodynamic steam traps. The TD42L is specifically designed for relatively small condensate loads and therefore is ideal for mains drainage applications. For process type loads the TD42H is available. For those applications where the release of air is a concern, an anti-air-binding disc is available i.e. TD42LA and TD42HA. All external body surfaces have an electroless nickel preparation (ENP) which is both energy saving and oxidation resistant.
Specifications
Item Features
- This product fully complies with the requirements of the European pressure equipment directive 97/23/EC
- Installation note: The TD42H should be installed in the horizontal plane, with a small drop leg proceeding them
- Disposal: This product is recycable, no ecological hazard is anticipated with the disposal of this product providing due care is taken
- 400 deg C at 42 bar g Maximum allowable temperature
- 95 bar g Maximum cold hydraulic test pressure
- 63 bar g at 100 deg C Maximum allowable pressure
- 0 deg C Minimum allowable temperature
- 0.25 bar g Minimum inlet pressure for satisfactory operation
- PN63 Body design condition
- 47 mm top to inlet center

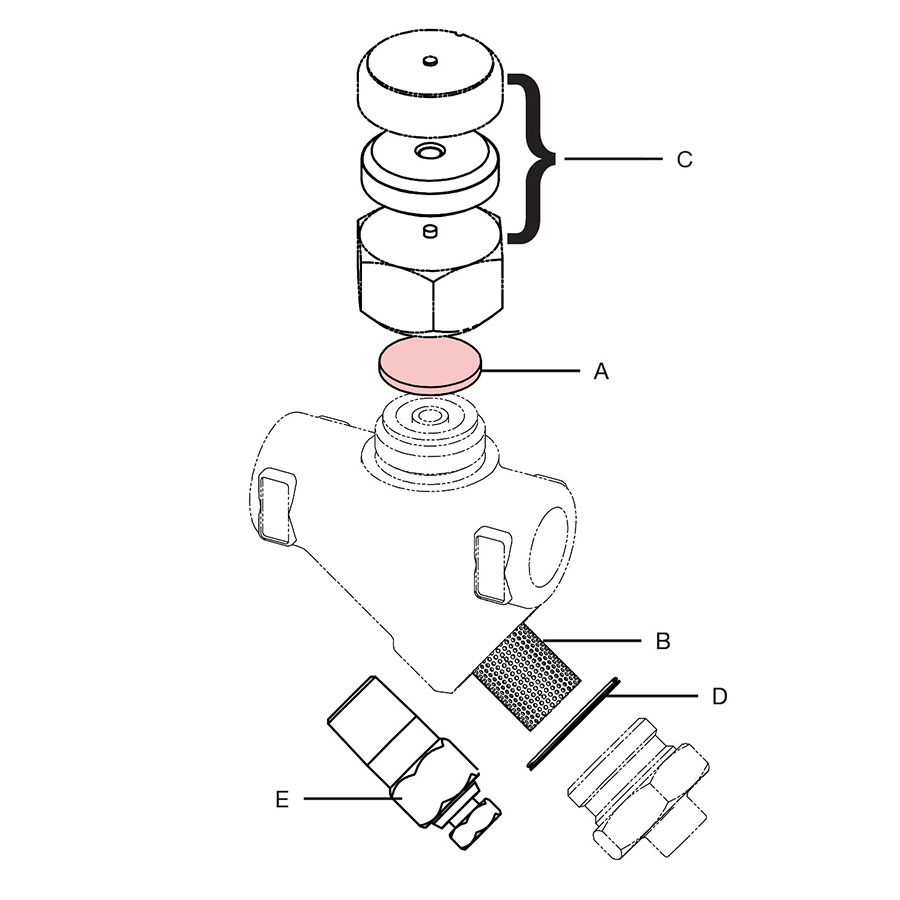

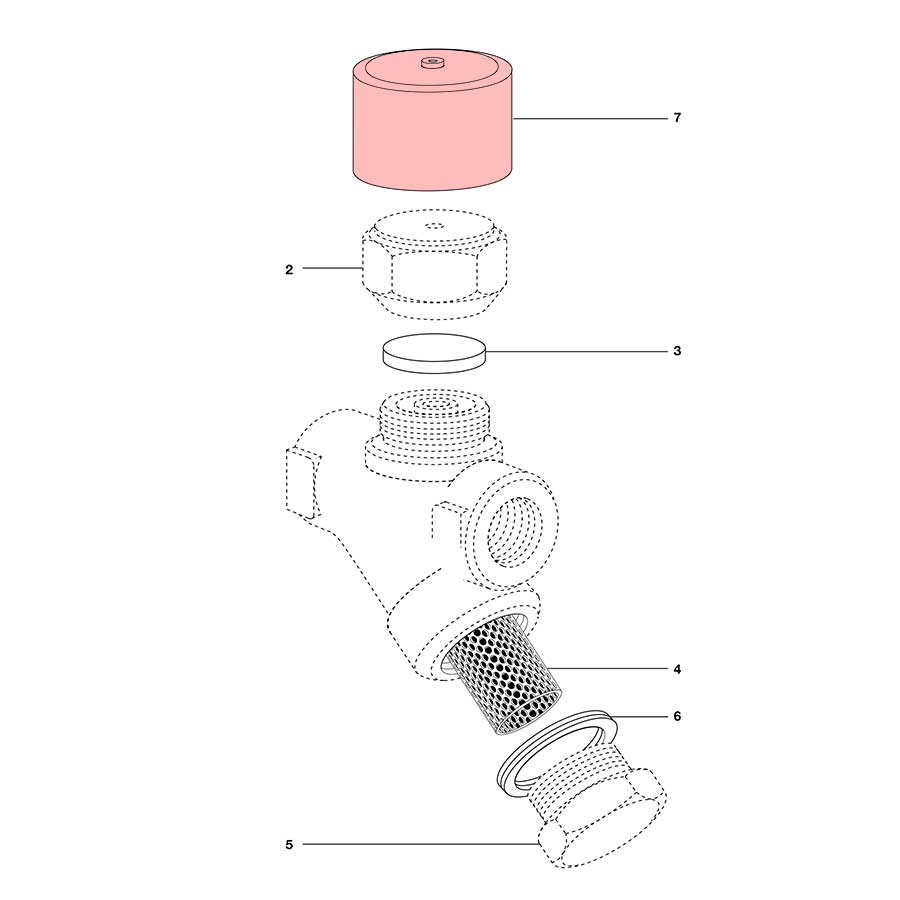

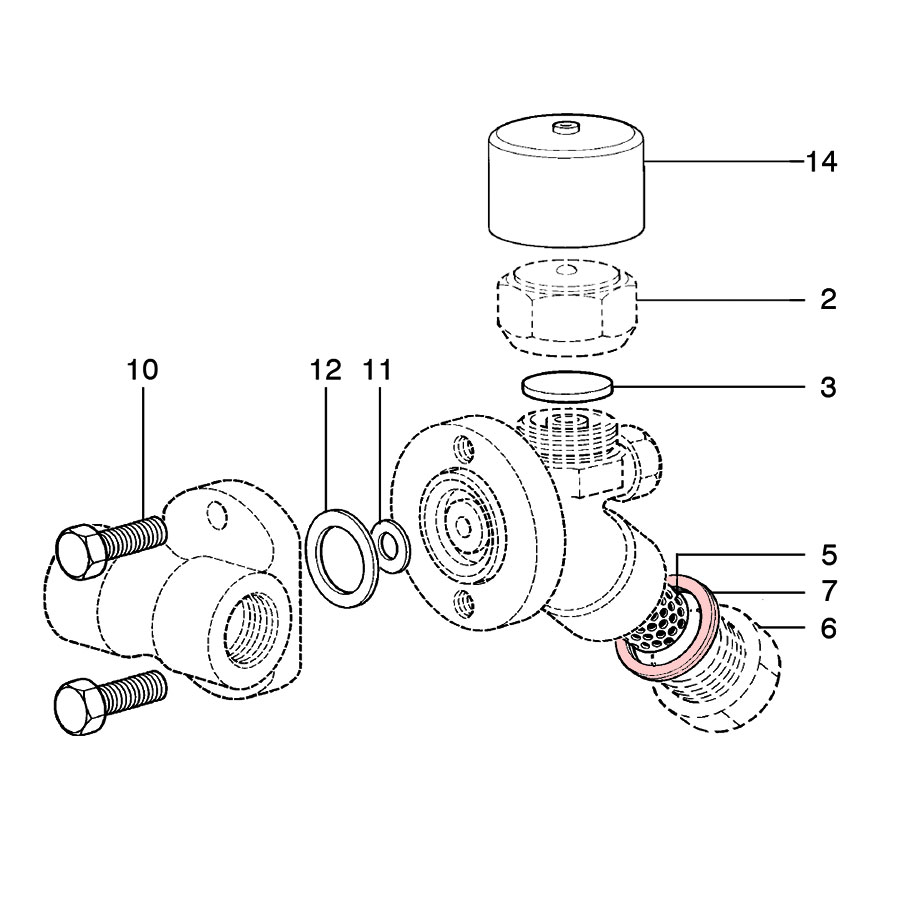

Spirax Sarco 0680862 Spare Parts
CBPN:
96495
MPN:
0681383
CBPN:
74534
MPN:
0162780
CBPN:
97813
MPN:
71899
CBPN:
123868
MPN:
1534180
CBPN:
215191
MPN:
0680897
