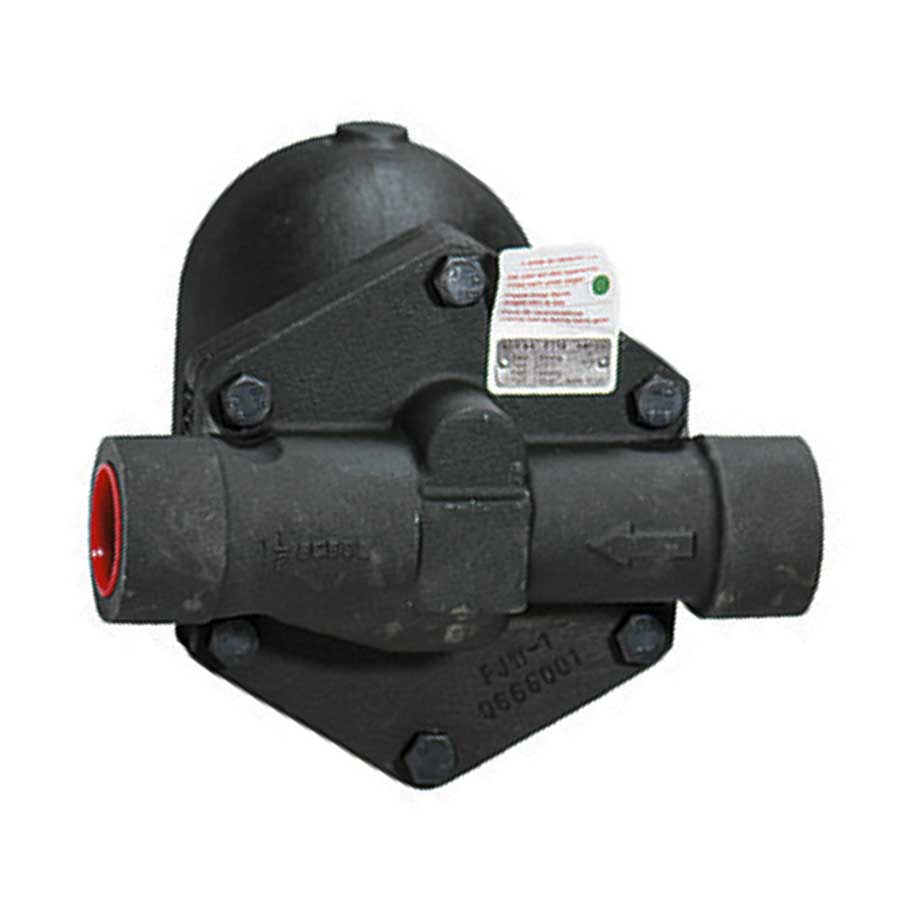

Spirax Sarco 0668690, FT14-4.5 Ball Float Steam Trap, 2 in, FNPT, 220 deg C, 4.5 bar, Cast Iron
CBPN:18811
MPN:0668690
Price:
$4511.78 / EA
DESCRIPTION
Spirax Sarco Ball Float Steam Trap, 2 in Nominal, NPT, 300 mm Length, 4.5 bar, Cast Iron, 220 deg C
The FT14 and FT14HC are iron bodied ball float steam traps having stainless steel working internals and integral automatic air venting facility. These traps are supplied with horizontal screwed connections only and can be maintained without disturbing the pipework. The flow direction is as indicated on the valve body.
Spirax Sarco 0668690, FT14-4.5 Ball Float Steam Trap, 2 in, FNPT, 220 deg C, 4.5 bar, Cast Iron
CBPN:18811
MPN:0668690
Price:
$4511.78 / EA
DESCRIPTION
Spirax Sarco Ball Float Steam Trap, 2 in Nominal, NPT, 300 mm Length, 4.5 bar, Cast Iron, 220 deg C
The FT14 and FT14HC are iron bodied ball float steam traps having stainless steel working internals and integral automatic air venting facility. These traps are supplied with horizontal screwed connections only and can be maintained without disturbing the pipework. The flow direction is as indicated on the valve body.
Specifications
Brand: Spirax Sarco
Weight: 52lbs
End Style: FNPT
Length: 300 mm
Material: Cast Iron
Nominal Size: 2 in
Series: FT14
Max Operating Pressure: 4.5 bar
Max Allowable Pressure: 16 barg/up to 100 deg C
Max Allowable Temperature: 220 deg C/up to 13.5 barg
Manufacturer Name: Spirax-Sarco Inc
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: DIN 1691 GG 25 Body | European Pressure Equipment Directive 97/23/EC
Item Features
- Capsule: The BP99/32 capsule which is used in the FT14 ball float steam traps is suitable for use on 150 deg C superheat at 0 barg and 50 deg C superheat at 32 barg
- Extremely versatile traps
- Work efficiently on both light and heavy condensate loads
- Compact in size
- Discharge capacity is high and continuous, ensuring Maximum heat transfer
- Ball float steam traps are the best choice for draining plant with automatic temperature control
- An integral air vent is fitted as standard and a steam lock release is an option
- Maximum allowable pressure: 16 barg at 100 deg C
- Maximum allowable temperature: 220 deg C at 13.5 barg
- 14 barg maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 24 barg
- PN16 body design conditions
- In-Line horizontal piping configuration
