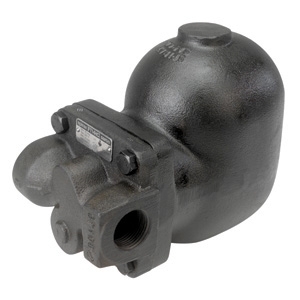

Spirax Sarco FT14HC High Capacity Float and Thermostatic Steam Trap

Spirax Sarco 0664591, FT14HC-14C High Capacity Ball Float Steam Trap, 1 in, FNPT, 275 deg C, 200 psig, Ductile Iron

CBPN: 222207

MPN:0664591

Price:

$1323.14 / EA

QTY

DESCRIPTION

Spirax Sarco Ball Float Steam Trap, High Capacity, 1 in Nominal, NPT, 120 mm Length, 200 psig, Ductile Iron, 275 deg C

The FT14 and FT14HC are iron bodied ball float steam traps having stainless steel working internals and integral automatic air venting facility. These traps are supplied with horizontal screwed connections only and can be maintained without disturbing the pipework. The flow direction is as indicated on the valve body.

Spirax Sarco 0664591, FT14HC-14C High Capacity Ball Float Steam Trap, 1 in, FNPT, 275 deg C, 200 psig, Ductile Iron

CBPN: 222207

MPN:0664591

Price:

$1323.14 / EA

QTY

DESCRIPTION

Spirax Sarco Ball Float Steam Trap, High Capacity, 1 in Nominal, NPT, 120 mm Length, 200 psig, Ductile Iron, 275 deg C

Specifications

Brand: Spirax Sarco

Weight: 15 lbs

Nominal Size: 1 in

End Style: FNPT

Max Operating Pressure: 14 bar

Max Allowable Pressure: 25 barg/up to 100 deg C

Max Allowable Temperature: 300 deg C/up to 18 barg

Material: Ductile Iron

Length: 120 mm

Manufacturer Name: Spirax-Sarco Inc

Series: FT14HC

Type: High Capacity

Domestic/Import: Domestic

Country of Origin: US

Standards and Approvals: DIN 1691 GG 25 Body | European Pressure Equipment Directive 97/23/EC

Item Features

Capsule: The BP99/32 capsule which is used in the FT14HC ball float steam traps is suitable for use on 150 deg C superheat at 0 barg and 50 deg C superheat at 32 barg
Extremely versatile traps
Work efficiently on both light and heavy condensate loads
Compact in size
Discharge capacity is high and continuous, ensuring Maximum heat transfer
Ball float steam traps are the best choice for draining plant with automatic temperature control
An integral air vent is fitted as standard and a steam lock release is an option
Maximum allowable pressure: 25 barg at 100 deg C
Maximum allowable temperature: 300 deg C at 18 barg
In-Line horizontal piping configuration
21 barg maximum operating pressure for saturated steam service
Maximum cold hydraulic test pressure: 24 barg
