Spirax Sarco 0440790, SBRA Reverse Acting Temperature Regulator Valve With Fixed Bleed, 1/2 in, FNPT End Style, 12 bar
CBPN: 65056
MPN:0440790
Price:
$1075.62 / EA
DESCRIPTION

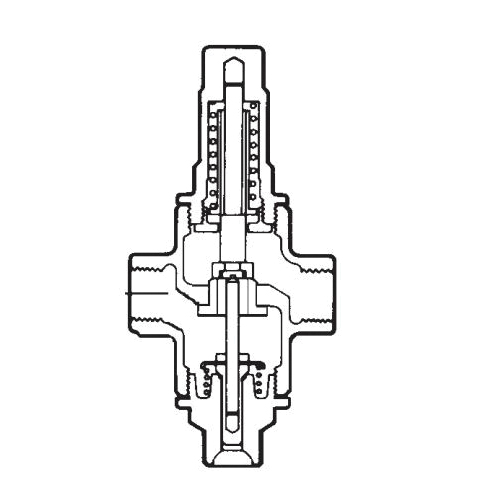

Spirax Sarco Temperature Regulator Valve, Reverse Acting, 1/2 in Nominal, NPT, 12 bar, Bronze Body, Stainless Steel Trim, 3.1 in L
Spirax Sarco 0440790, SBRA Reverse Acting Temperature Regulator Valve With Fixed Bleed, 1/2 in, FNPT End Style, 12 bar
CBPN: 65056
MPN:0440790
Price:
$1075.62 / EA
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Reverse Acting, 1/2 in Nominal, NPT, 12 bar, Bronze Body, Stainless Steel Trim, 3.1 in L
Specifications
Brand: Spirax Sarco
Weight: 2.3 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 12 bar
Body Material: Bronze
Dimensions: 3.1 in L
Manufacturer Name: Spirax-Sarco Inc
Series: SBRA
Trim Material: Stainless Steel
Type: Reverse Acting
Application: Industrial/Commercial
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Class IV Shut-Off | BS 1400 LG2 Body
Item Features
- Maximum allowable temperature: 500 deg F at 0 to 152 psig
- 3 Cv
- 8 deg p-band
- Differential pressure: 174 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- 3.2 mm stroke
- 3.7 in inlet center to top
- Horizontal installation
- Normally closed, opens with rising temperature for cooling
- Single seat with optional 1/8 in (Cv .44) bleed bypass and optional fusible devise
