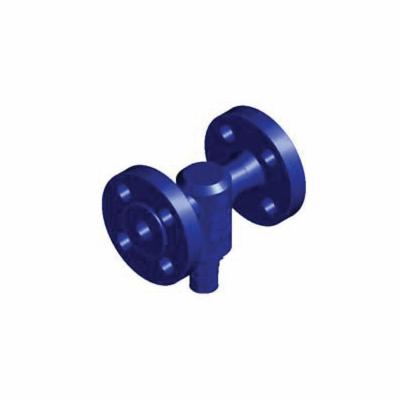

Spirax Sarco 0369892, BM6 Direct Acting Temperature Regulator Valve, 1/2 in, ANSI 300 Flange, 17.2 bar
CBPN: 239038
MPN:0369892
Price:
$1597.05 / EA
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Direct Acting, 1/2 in Nominal, ANSI 300 Flange, 17.2 bar, Carbon Steel Body, 5 in L
Spirax Sarco 0369892, BM6 Direct Acting Temperature Regulator Valve, 1/2 in, ANSI 300 Flange, 17.2 bar
CBPN: 239038
MPN:0369892
Price:
$1597.05 / EA
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Direct Acting, 1/2 in Nominal, ANSI 300 Flange, 17.2 bar, Carbon Steel Body, 5 in L
Specifications
Brand: Spirax Sarco
Weight: 1.5 lbs
Nominal Size: 1/2 in
End Style: ANSI 300 Flange
Pressure Rating: 17.2 bar
Body Material: Carbon Steel
Dimensions: 5 in L
Manufacturer Name: Spirax-Sarco Inc
Series: BM6
Type: Direct Acting
Application: Industrial/Commercial
Country of Origin: US
Standards and Approvals: ANSI Class IV Shut-Off | DIN 17245 GS C25 Body
Item Features
- Maximum allowable temperature: 750 deg F at 0 to 188 psig
- 1.92 Cv
- 8 deg p-band
- Differential pressure: 250 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- ANSI Class IV shut-off
- 3.2 mm stroke
- BM6 orifice
- Horizontal installation
- Normally open, closes with rising temperature for heating
- Single seat with 4 different orifice sizes - BM 2, BM 3, BM 4 and BM
- On liquid applications, the permissible maximum differential pressure may be affected by high static pressure
