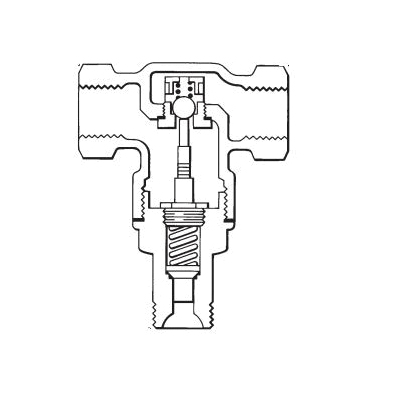

Spirax Sarco 0368091, BXRA Reverse Acting Temperature Control Regulator Valve, 1/2 in, FNPT End Style, 10 bar
CBPN: 62627
MPN:0368091
Price:
$631.54 / EA
DESCRIPTION
Spirax Sarco Temperature Control Regulator Valve, Reverse Acting, 1/2 in Nominal, NPT, 10 bar, Bronze Body, 3.7 in L
The BX range of two port valves are used in conjunction with Spirax Sarco SA control systems to provide a self-acting temperature control unit. Alternatively, they can be used as electrically actuated temperature control valves by fitting an EL3500 Series electric actuator with a suitable temperature transmitter and controller.
Spirax Sarco 0368091, BXRA Reverse Acting Temperature Control Regulator Valve, 1/2 in, FNPT End Style, 10 bar
CBPN: 62627
MPN:0368091
Price:
$631.54 / EA
DESCRIPTION
Spirax Sarco Temperature Control Regulator Valve, Reverse Acting, 1/2 in Nominal, NPT, 10 bar, Bronze Body, 3.7 in L
The BX range of two port valves are used in conjunction with Spirax Sarco SA control systems to provide a self-acting temperature control unit. Alternatively, they can be used as electrically actuated temperature control valves by fitting an EL3500 Series electric actuator with a suitable temperature transmitter and controller.
Specifications
Brand: Spirax Sarco
Weight: 15 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 10 bar
Body Material: Bronze
Dimensions: 3.7 in L
Manufacturer Name: Spirax-Sarco Inc
Series: BXRA
Type: Reverse Acting
Application: Industrial/Commercial
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Class IV Shut-Off | BS 1400 LG2 Body
Item Features
- Maximum allowable temperature: 500 deg F at 0 to 152 psig
- 0.66 Cv
- 8 deg p-band
- Differential pressure: 150 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- 3.2 mm stroke
- Horizontal installation
- Normally closed, single seat
