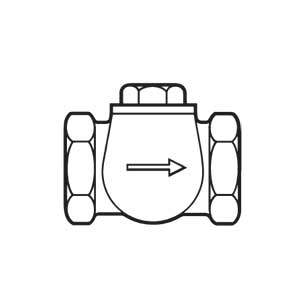

Spirax Sarco LCV1 Lift Check Valve

Spirax Sarco 0293590 LCV1 Lift Check Valve, 1-1/2 in Nominal, FNPT End Style End Style, 200 psig Pressure

CBPN: 221829

MPN:0293590

Price:
$435.89 / EA

DESCRIPTION

Spirax Sarco Lift Check Valve, Series: LCV1, 1-1/2 in Nominal, NPT End Style, 200 psig Pressure, Media: Steam/Water, Bronze Body, Mounting Position: Horizontal, Stainless Steel Trim, 500 deg F, 4.3 in L x 2.8 in W x 3.6 in H Dimensions

The LCV1 is a bronze Lift Check Valve which is installed in horizontal lines to prevent reverse flow.

Spirax Sarco 0293590 LCV1 Lift Check Valve, 1-1/2 in Nominal, FNPT End Style End Style, 200 psig Pressure

CBPN: 221829

MPN:0293590

Price:
$435.89 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Lift Check Valve, Series: LCV1, 1-1/2 in Nominal, NPT End Style, 200 psig Pressure, Media: Steam/Water, Bronze Body, Mounting Position: Horizontal, Stainless Steel Trim, 500 deg F, 4.3 in L x 2.8 in W x 3.6 in H Dimensions

The LCV1 is a bronze Lift Check Valve which is installed in horizontal lines to prevent reverse flow.

Specifications

Brand: Spirax Sarco
Nominal Size: 1-1/2 in
End Style: FNPT
Body Material: Bronze
Dimensions: 4.3 in L x 2.8 in W x 3.6 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam/Water
Mounting Position: Horizontal
Pressure Rating: 200 psig
Series: LCV1
Temperature Rating: 500 deg F
Trim Material: Stainless Steel

Item Features

  • Stainless steel spring
