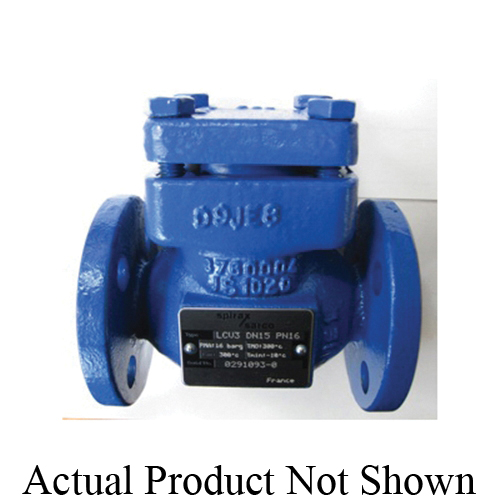

Spirax Sarco 0291190, LCV-3 Lift Check Valve, 3/4 in, FNPT End Style, Cast Iron Body
CBPN: 222325
MPN:0291190
Price:
$373.10 / EA
DESCRIPTION
Spirax Sarco Lift Check Valve, 3/4 in Nominal, NPT, 145 psig Operating, 14 to 449 deg F Operating, Media: Steam, 6-1/2 in Inlet to Outlet Length, 4 in Top to Inlet Center, Cast Iron Body
The LCV3, LCV4, LCV6 and LCV7 lift check valves are designed in accordance with EN 12516 and ASME B16.34 to prevent reverse flow in horizontal pipeline installations. The design of these valves allows them to be easily serviced without removing the valve from the pipeline.
Spirax Sarco 0291190, LCV-3 Lift Check Valve, 3/4 in, FNPT End Style, Cast Iron Body
CBPN: 222325
MPN:0291190
Price:
$373.10 / EA
DESCRIPTION
Spirax Sarco Lift Check Valve, 3/4 in Nominal, NPT, 145 psig Operating, 14 to 449 deg F Operating, Media: Steam, 6-1/2 in Inlet to Outlet Length, 4 in Top to Inlet Center, Cast Iron Body
The LCV3, LCV4, LCV6 and LCV7 lift check valves are designed in accordance with EN 12516 and ASME B16.34 to prevent reverse flow in horizontal pipeline installations. The design of these valves allows them to be easily serviced without removing the valve from the pipeline.
Specifications
Brand: Spirax Sarco
Weight: 9 lbs
Nominal Size: 3/4 in
End Style: FNPT
Body Material: Cast Iron
Inlet to Outlet Length: 6-1/2 in
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Pressure Rating: 145 psig Operating
Series: LCV3
Temperature Rating: 14 to 449 deg F Operating
Top to Inlet Center: 4 in
Domestic/Import: Domestic
Standards and Approvals: ASME B16.34 | ASTM A126 Class B | EN 12266-1: 2003 Rate F | EN 12516 | European Pressure Equipment Directive 97/23/EC
Item Features
- Effective minimal maintenance free solutions
- Preventing reverse flow in pipelines
- Compact design
- Horizontal installation
- Stainless steel internals
- 9.7 Cv
- Maximum allowable pressure: 200 psig at 149 deg F
- Maximum allowable/operating temperature: 449 deg F at 125 psig
- 145 psig maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 297 psig
- Stainless steel disc
