Spirax Sarco VB21 Vacuum Breaker

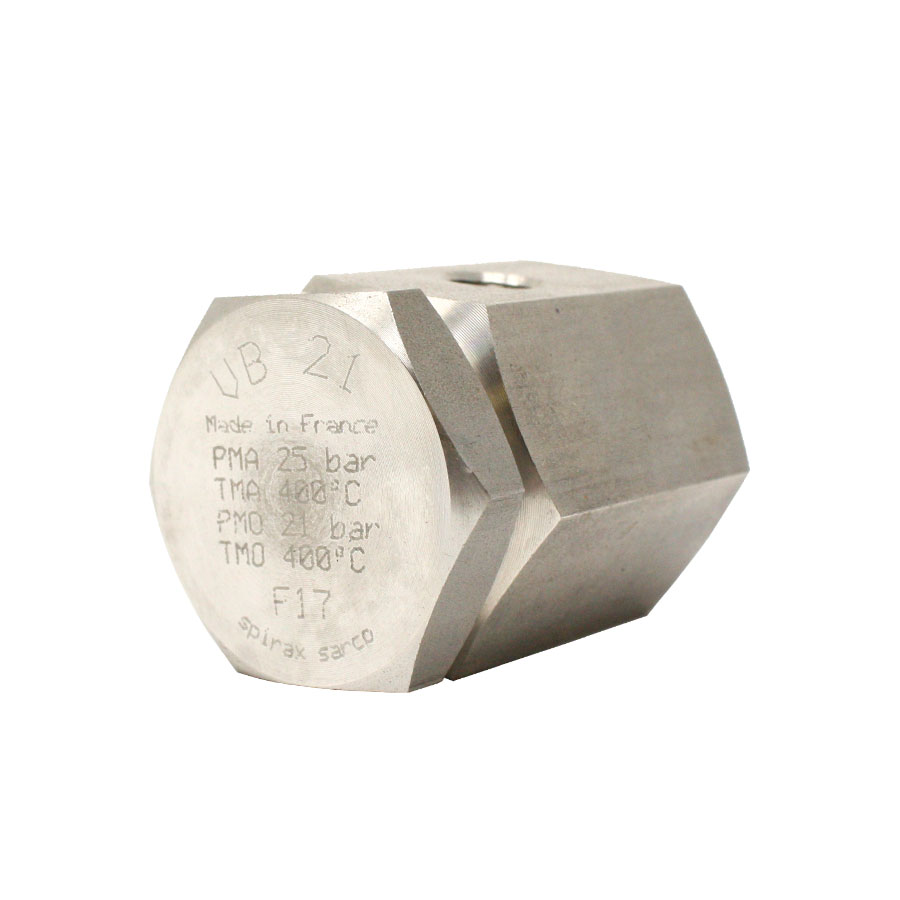

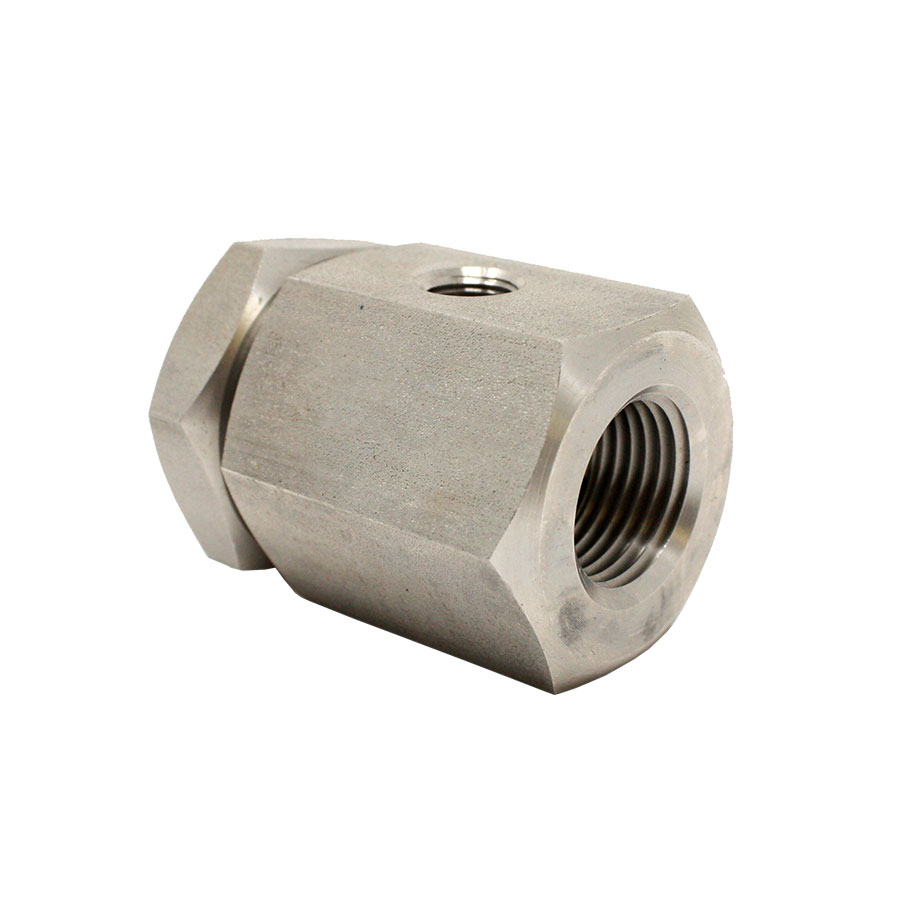

Spirax Sarco 0190192, VB21 Vacuum Breaker, 1/2 x 1/8 in, NPT, Stainless Steel Body

CBPN:7307

MPN:0190192

Price:
$418.60 / EA

DESCRIPTION

Spirax Sarco Vacuum Breaker, 1/2 x 1/8 in Nominal, NPT, 304 psig, 752 deg F, Stainless Steel Body, 1-1/2 in L x 2 in H

The VB21 is designed to admit air to condensing vapor(steam) or liquid systems where vacuum formation may inhibit system drainage or operation.

Spirax Sarco 0190192, VB21 Vacuum Breaker, 1/2 x 1/8 in, NPT, Stainless Steel Body

CBPN:7307

MPN:0190192

Price:
$418.60 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Vacuum Breaker, 1/2 x 1/8 in Nominal, NPT, 304 psig, 752 deg F, Stainless Steel Body, 1-1/2 in L x 2 in H

The VB21 is designed to admit air to condensing vapor(steam) or liquid systems where vacuum formation may inhibit system drainage or operation.

Specifications

BrandSpirax Sarco
Weight0.7lbs
Nominal Size1/2 x 1/8 in
End StyleNPT
Body MaterialStainless Steel
Dimensions1-1/2 in L x 2 in H
Manufacturer NameSpirax-Sarco Inc
Pressure Rating304 psig
SeriesVB21
Temperature Rating752 deg F
ApplicationFor Used on Steam Inlet to Air Coils, Heat Exchangers, Spurge Systems, Jacketed Kettles, Boiler Feed Water Tanks, Chilled Water Lines and Liquid Process Lines and All of Which at One Time or Another Generate Vacuum Conditions Which Must be Relieved to Allow Proper System Operation
Standards and ApprovalsAISI 303 Stainless Steel Cap | AISI 440 C Stainless Steel Valve Check Ball | AISI 303 Stainless Steel Body | AISI 304 Stainless Steel Gasket | This product fully complies with the Requirements of the European Pressure Equipment Directive 97/23/EC
