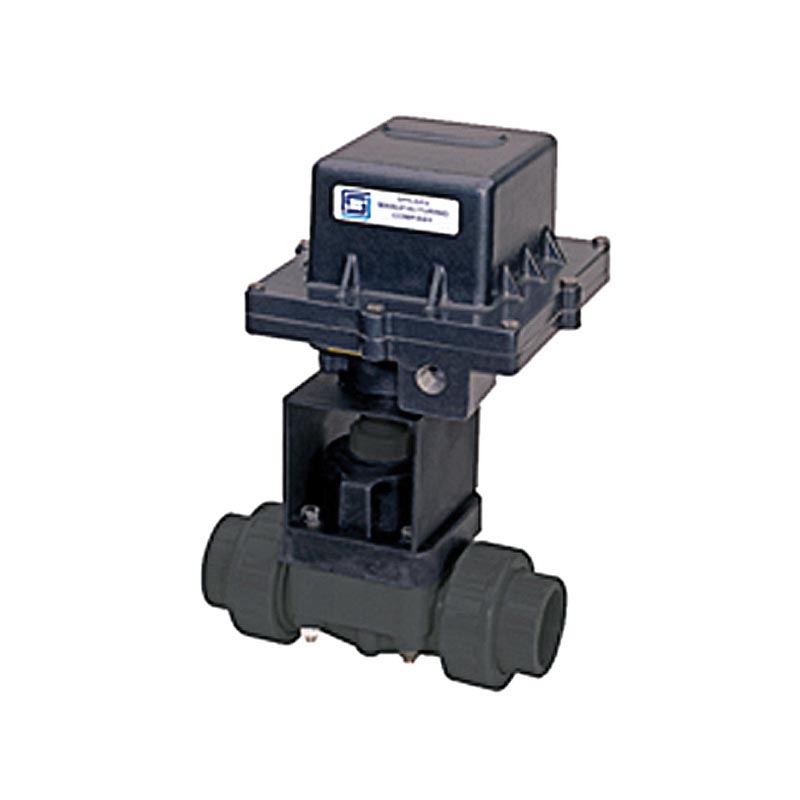

Spears® 91231A121-020 True Union Electric Actuated Weir-Type Diaphragm Valve, 2 in Nominal, Socket End Style, PVC Body, FKM O-Ring & Diaphragm, Domestic
CBPN: 274779
UPC:054211338926
MPN:91231A121-020
Price:
$4652.59 / EA
DESCRIPTION
Spears® Diaphragm Valve, Premium Actuated Weir-Type, Series: True Union, 2 in Nominal, Socket, 235 psi, 73 deg F, Media: Viscous Fluids, Electrical Actuator, PVC Body, FKM Diaphragm, FKM O-Ring, Domestic
Industrial grade Weir-type design, excellent for throttling and use with viscous fluids. Full-featured actuator can be custom configured with add-on accessories.
Spears® 91231A121-020 True Union Electric Actuated Weir-Type Diaphragm Valve, 2 in Nominal, Socket End Style, PVC Body, FKM O-Ring & Diaphragm, Domestic
CBPN: 274779
MPN:91231A121-020
UPC:054211338926
Price:
$4652.59 / EA
DESCRIPTION
Spears® Diaphragm Valve, Premium Actuated Weir-Type, Series: True Union, 2 in Nominal, Socket, 235 psi, 73 deg F, Media: Viscous Fluids, Electrical Actuator, PVC Body, FKM Diaphragm, FKM O-Ring, Domestic
Industrial grade Weir-type design, excellent for throttling and use with viscous fluids. Full-featured actuator can be custom configured with add-on accessories.
Specifications
Brand: Spears®
Weight: 20.21 lbs
Nominal Size: 2 in
End Style: Socket
Body Material: PVC
Diaphragm Material: FKM
Softgoods Material: FKM O-Ring
Actuator Type: Electrical
Manufacturer Name: Spears Manufacturing
Media: Viscous Fluids
Pressure Rating: 235 psi
Series: True Union
Temperature Rating: 73 deg F
Type: Premium Actuated Weir-Type
Application: Industrial
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Stainless steel hardware
- 115 VAC 60 Hz standard electric actuator
- Multi-turn operation with 2-SPDT limit switches
- NEMA 4 enclosure, powder coated
- 25% duty cycle
- Declutchable manual override
- 80 psi operating pressure for actuator
