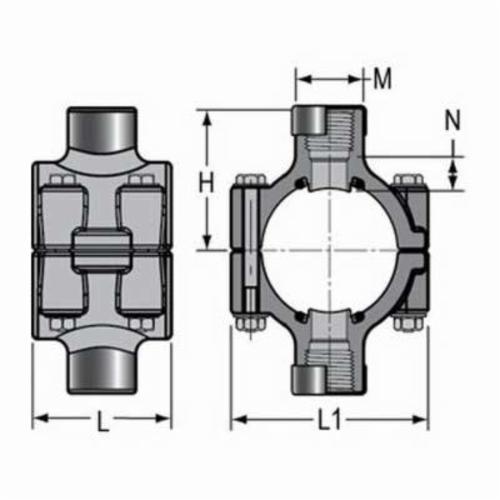

Spears® 869S-574CSR Pipe Saddle Clamp, 8 x (2) 3/4 in, Special Reinforced FNPT Connection, 4 in Dia Hole, CPVC, EPDM O-Ring, SCH 80/XH Domestic
CBPN: 273530
MPN:869S-574CSR
Price:
$808.66 / EA
DESCRIPTION
Spears® Pipe Saddle, Clamp-On, 8 x (2) 3/4 in Nominal, Special Reinforced FNPT, 4 in Hole Dia, SCH 80/XH, 150 psi, 73 deg F, Stainless Steel Bolt, CPVC Clamp, 10-1/8 in W, Gray, Domestic
Spears® 869S-574CSR Pipe Saddle Clamp, 8 x (2) 3/4 in, Special Reinforced FNPT Connection, 4 in Dia Hole, CPVC, EPDM O-Ring, SCH 80/XH Domestic
CBPN: 273530
MPN:869S-574CSR
Price:
$808.66 / EA
DESCRIPTION
Spears® Pipe Saddle, Clamp-On, 8 x (2) 3/4 in Nominal, Special Reinforced FNPT, 4 in Hole Dia, SCH 80/XH, 150 psi, 73 deg F, Stainless Steel Bolt, CPVC Clamp, 10-1/8 in W, Gray, Domestic
Specifications
Brand: Spears®
Weight: 9.17 lbs
Nominal Size: 8 x (2) 3/4 in
Connection Type: Special Reinforced FNPT
Clamp Material: CPVC
Schedule Rating: SCH 80/XH
Bolt Material: Stainless Steel
Color: Gray
Dimensions: 10-1/8 in W
Hole Diameter: 4 in
Manufacturer Name: Spears Manufacturing
Pressure Rating: 150 psi
Temperature Rating: 73 deg F
Type: Clamp-On
Domestic/Import: Domestic
Country of Origin: US
Item Features
- 4 in hole
- 4 in Dia hole saw
- Bushed CPVC
