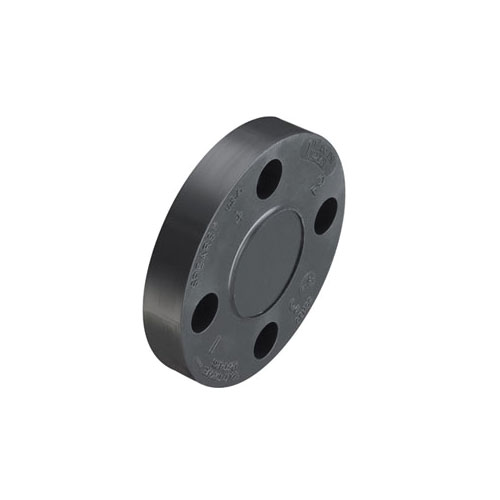

Spears® 853-050CF Fabricated Blind Flange, 5 in Nominal, CPVC, SCH 80/XH, Domestic
CBPN:219101
UPC:054211364949
MPN:853-050CF
Price:
$685.79 / EA
DESCRIPTION
Spears® Blind Flange, Fabricated, 5 in Nominal, 1 in Thickness, 8-1/2 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, 10-1/16 in OD, 150 psi Pressure, 150 lb Pressure Class, SCH 40/STD, SCH 80/XH Schedule, 73 deg F, CPVC, Gray, Domestic
All thermoplastic flanges shall be produced from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF International. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears Manufacturing Company.
Spears® 853-050CF Fabricated Blind Flange, 5 in Nominal, CPVC, SCH 80/XH, Domestic
CBPN:219101
MPN:853-050CF
UPC:054211364949
Price:
$685.79 / EA
DESCRIPTION
Spears® Blind Flange, Fabricated, 5 in Nominal, 1 in Thickness, 8-1/2 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, 10-1/16 in OD, 150 psi Pressure, 150 lb Pressure Class, SCH 40/STD, SCH 80/XH Schedule, 73 deg F, CPVC, Gray, Domestic
All thermoplastic flanges shall be produced from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF International. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears Manufacturing Company.
Specifications
Brand: Spears®
Weight: 3.75lbs
Material: CPVC
Nominal Size: 5 in
Temperature Rating: 73 deg F
Type: Fabricated
Color: Gray
Outside Diameter: 10-1/16 in
Pressure Rating: 150 psi
Thickness: 1 in
Number of Bolt Holes: 4
Schedule Rating: SCH 80/XH
Bolt Circle Diameter: 8-1/2 in
Bolt Hole Size: 3/4 in
Manufacturer Name: Spears Manufacturing
Application: For joining plastic to metal piping systems
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784 | ASTM D2467 | ASTM F1498 | ANSI B16.5 | NSF 61
Item Features
