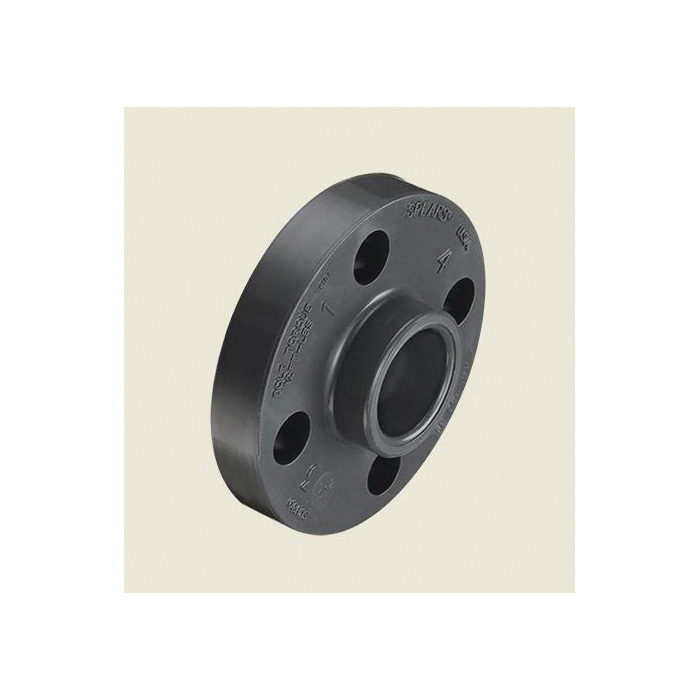

Spears® 851-010 1-Piece Flange, 1 in Nominal, PVC, Socket Connection, SCH 80/XH, 4-1/4 in OD, Domestic
CBPN:13352
UPC:054211163849
MPN:851-010
Price:
$24.61 / EA
DESCRIPTION
Spears® Flange, 1-Piece, 1 in Nominal, 4-1/4 in Outside Dia, 3-1/8 in Bolt Circle, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 1-5/16 in L, Domestic
All thermoplastic flanges shall be produced from PVC type I cell classification 12454 or CPVC type IV cell classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF international. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears manufacturing company.
Spears® 851-010 1-Piece Flange, 1 in Nominal, PVC, Socket Connection, SCH 80/XH, 4-1/4 in OD, Domestic
CBPN:13352
MPN:851-010
UPC:054211163849
Price:
$24.61 / EA
DESCRIPTION
Spears® Flange, 1-Piece, 1 in Nominal, 4-1/4 in Outside Dia, 3-1/8 in Bolt Circle, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 1-5/16 in L, Domestic
All thermoplastic flanges shall be produced from PVC type I cell classification 12454 or CPVC type IV cell classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF international. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears manufacturing company.
Specifications
Brand: Spears®
Weight: 0.41lbs
Material: PVC
Nominal Size: 1 in
Temperature Rating: 73 deg F
Type: 1-Piece
Color: Gray
Connection Type: Socket
Outside Diameter: 4-1/4 in
Pressure Rating: 150 psi
Dimensions: 1-5/16 in L
Schedule Rating: SCH 80/XH
Bolt Circle Diameter: 3-1/8 in
Manufacturer Name: Spears Manufacturing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI B16.5 | ASTM D1784 | ASTM D1785 | ASTM D2464 | ASTM D2467 | NSF 14/61
