Spears® 721311G-060C

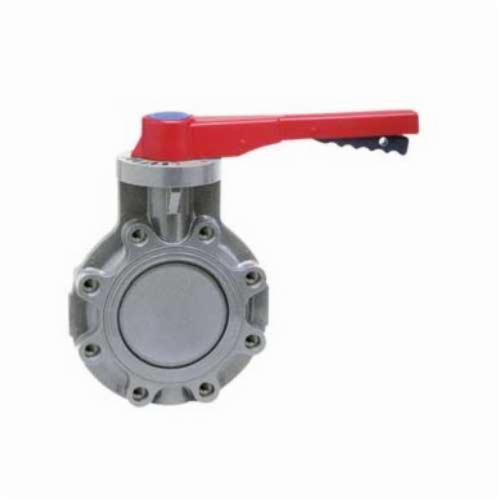

Spears® 721311G-060C Lug Insert Butterfly Valve, 6 in Nominal, 150 lb, CPVC Body, Buna-N Softgoods, Domestic

CBPN:253419

UPC:054211179642

MPN:721311G-060C

Price:
$2499.41 / EA

DESCRIPTION

Spears® Butterfly Valve, Lug Insert, 6 in Nominal, 150 lb, 200 deg F, Lever Handle Actuator, 11-3/32 in Top to Inlet Center, CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, Buna-N, Gray, 12 in Dia, Domestic

Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 - 14 in Standard or 1-1/2 - 12 in true lug (factory installed lugs) style.

Spears® 721311G-060C Lug Insert Butterfly Valve, 6 in Nominal, 150 lb, CPVC Body, Buna-N Softgoods, Domestic

CBPN:253419

MPN:721311G-060C

UPC:054211179642

Price:
$2499.41 / EA

Spears logo

DESCRIPTION

Spears® Butterfly Valve, Lug Insert, 6 in Nominal, 150 lb, 200 deg F, Lever Handle Actuator, 11-3/32 in Top to Inlet Center, CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, Buna-N, Gray, 12 in Dia, Domestic

Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 - 14 in Standard or 1-1/2 - 12 in true lug (factory installed lugs) style.

Specifications

BrandSpears®
Actuator TypeLever Handle
Body MaterialCPVC
Nominal Size6 in
Temperature Rating200 deg F
TypeLug Insert
ColorGray
Dimensions12 in Dia
Pressure Class150 lb
Softgoods MaterialBUNA-N
Manufacturer NameSpears Manufacturing
Stem & Pin Material316L Stainless Steel (Stem)
Top to Inlet Center11-3/32 in
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI/ASME B16.5 Bolt Pattern,NSF Approved

Item Features

  • Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
  • Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
  • Interlocking body and seat prevents wash-out or blow-out
  • Reversible high impact polypropylene lever handle with 7-position stops and built-in lockout (standard handle on 1-1/2 - 8 in valves not available on 10 in and larger valves
  • High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
  • Standard valve accepts field-installable lug inserts set option
  • Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts
  • True lug design has factory installed zinc plated or 316SS lugs and is specially designed for connection to either side of valve
  • http://youtu.be/9hzQlUWbLSE
